STEP 3

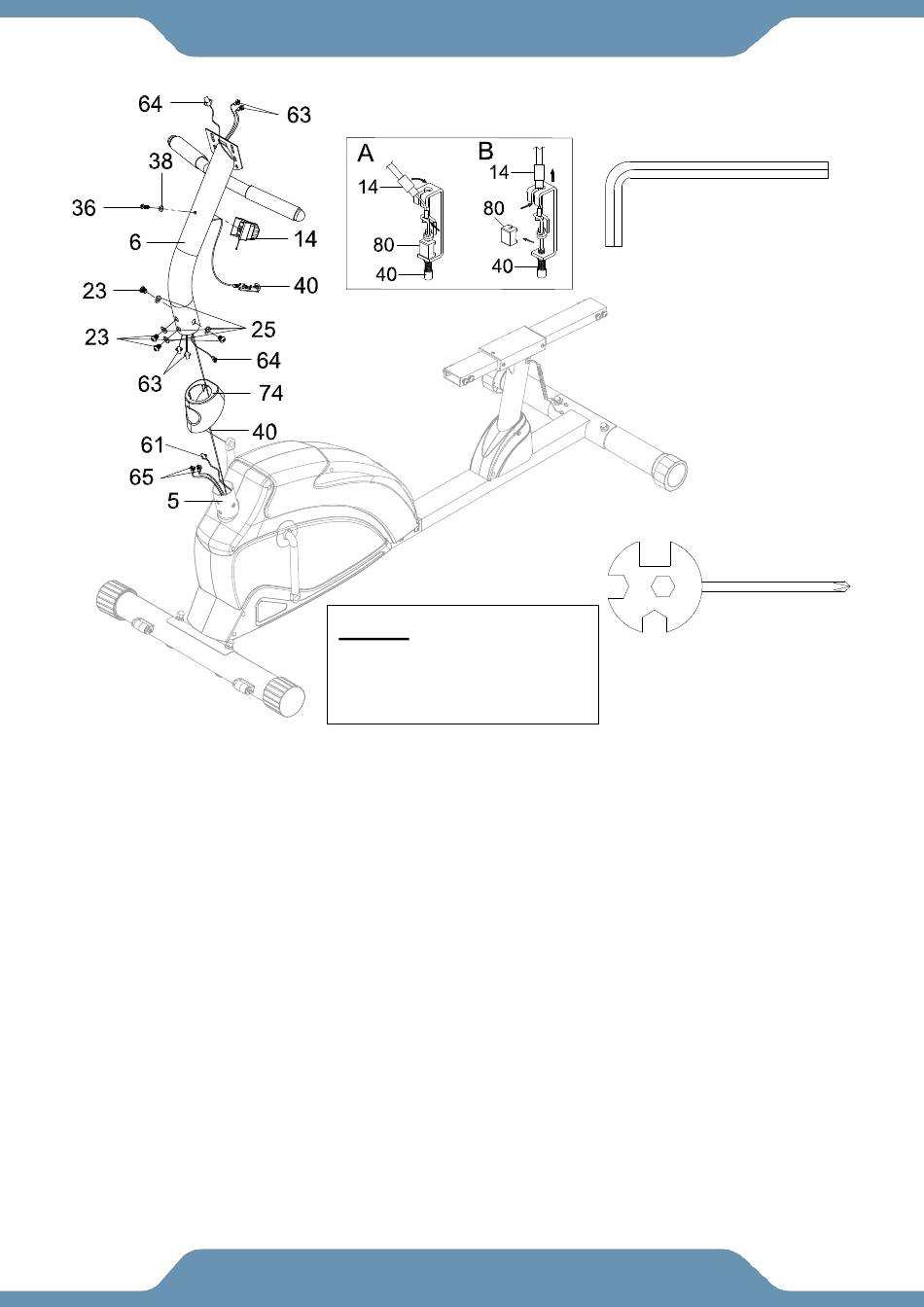

3a. Removing The Hardware From The Front Post –Remove four Bolts (23) and four Curve
Washers (25) from the Front Main Frame (5). Slide the Front Handlebar Post Cover (74)
up to the Front Handlebar Post (6).Insert the Tension Cable (40) through into the bottom
hole of Front Handlebar Post (6) and pull it out from the square hole of Front Handlebar
Post (6).
3b. Connecting The Console Wires –Connect the Sensor Wire (61) and Extension Hand
Pulse Sensor Wires (65) from the Front Main Frame (5) to the Extension Sensor Wire (64)
and Extension Wires (63) from the Front Handlebar Post (6).
3c. Installing The Front Post –Insert the Front Handlebar Post (6) onto the tube of the
Front Main Frame (5) and secure with four Bolts (23) and four Curve Washers (25) that were
removed. Slide the Front Handlebar Post Cover (74) down to the Front Main Frame (5).
Remove the Bolt (36) and Big Curve Washer (38) from the Tension Control Knob (14).
3d. Installing the Tenshion Control Knob -- Put the cable end of resistance cable of Tension
Control Knob (14) into the spring hook of Tension Cable (40) as shown in drawing A. Pull
the resistance cable of Tension Control Knob(14) up and force it into the gap of metal bracket
of Tension Cable (40) and gently remove the Clip (80) after well-connected the resistance
cable of Tension Control Knob (14) and Tension Cable (40) as shown in drawing B. Attach
the Tension Control Knob (14) onto the Front Handlebar Post (6) with the Bolt (36) and Big
Curve Washer (38) that were removed.
ASSEMBLY
B
MUST TIGHTEN IN
SEQUENCE:
A,B,C,D.
12
Tool:
6 mm Allen Wrench
Multi Hex Tool with Phillips
Screwdriver
