ASSEMBLY
Tool:
Multi Hex Tool with Phillips
Screwdriver

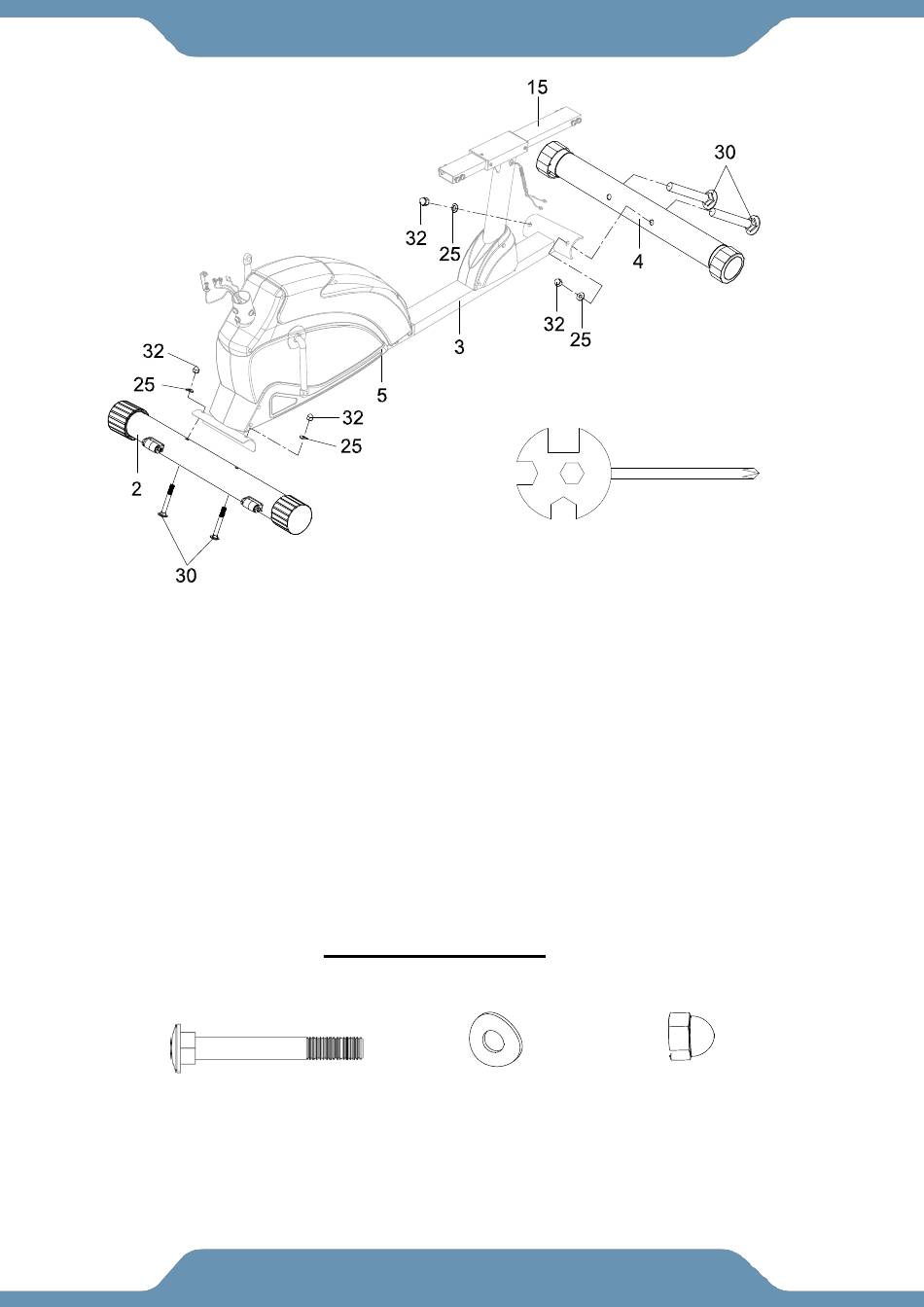

STEP 2
2a. Installing the Front Stabilizer - Position the Front Stabilizer (2) in front of the Front Main
Frame (5) and align bolt holes. Attach the Front Stabilizer (2) onto the front curve of the Front
Main Frame (5) with two Bolts (30), two Curve Washers (25), and two Cap Nuts (32). Tighten
Cap Nuts (32) with the Multi Hex Tool with Phillips Screwdriver provided
2b. Installing the Rear Stabilizer - Position the Rear Stabilizer (4) behind the Rear Main Frame
(3) and align bolt holes. Attach the Rear Stabilizer (4) onto the rear curve of the Rear Main
Frame (3) with two Bolts (30), two Curve Washers (25), and two Cap Nuts (32). Tighten Cap
Nuts (32) with the Multi Hex Tool with Phillips Screwdriver provided
.
HARDWARE PACK
(25) Curve Washer (32) Cap Nut
(30) Bolt
4 PCS 4 PCS 4 PCS
11
