Operating instructions
S3000
Note
Note
8009942/WK81/2012-11-28
Subject to change without notice
Application examples and

connection diagrams

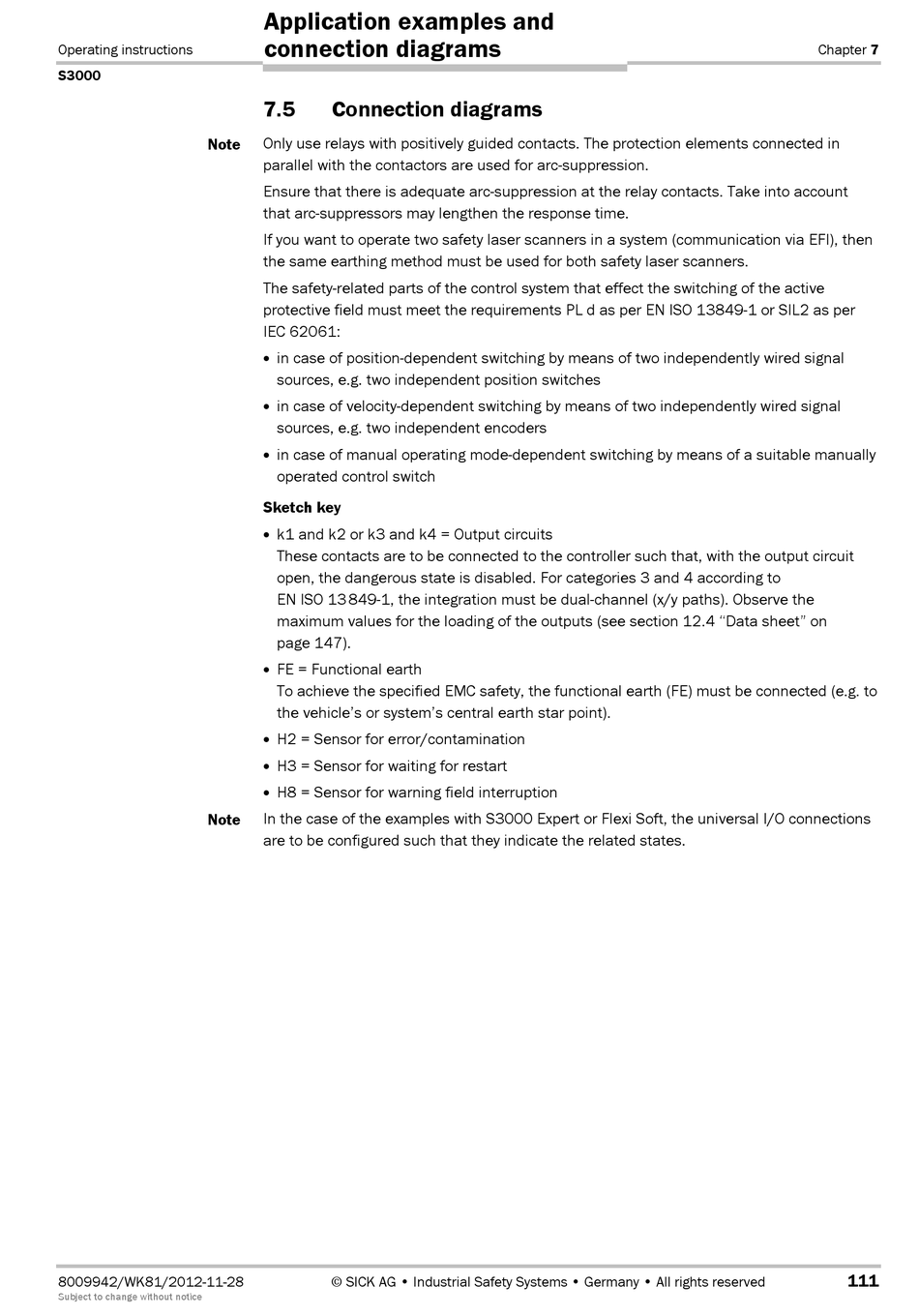

7.5 Connection diagrams
Only use relays with positively guided contacts. The protection elements connected in
parallel with the contactors are used for arc-suppression.
Ensure that there is adequate arc-suppression at the relay contacts. Take into account
that arc-suppressors may lengthen the response time.
If you want to operate two safety laser scanners in a system (communication via EFI), then
the same earthing method must be used for both safety laser scanners.
The safety-related parts of the control system that effect the switching of the active
protective field must meet the requirements PL d as per EN ISO 13849-1 or SIL2 as per
IEC 62061:
in case of position-dependent switching by means of two independently wired signal
sources, e.g. two independent position switches
in case of velocity-dependent switching by means of two independently wired signal
sources, e.g. two independent encoders
in case of manual operating mode-dependent switching by means of a suitable manually
operated control switch
Sketch key
k1 and k2 or k3 and k4 = Output circuits
These contacts are to be connected to the controller such that, with the output circuit
open, the dangerous state is disabled. For categories 3 and 4 according to
EN ISO 13 849<1, the integration must be dual-channel (x/y paths). Observe the
maximum values for the loading of the outputs (see section 12.4 "Data sheet" on
page 147).
FE = Functional earth
To achieve the specified EMC safety, the functional earth (FE) must be connected (e.g. to
the vehicle's or system's central earth star point).
H2 = Sensor for error/contamination
H3 = Sensor for waiting for restart
H8 = Sensor for warning field interruption
In the case of the examples with S3000 Expert or Flexi Soft, the universal I/O connections
are to be configured such that they indicate the related states.
© SICK AG • Industrial Safety Systems • Germany • All rights reserved
Chapter 7
111
