S300 Mini

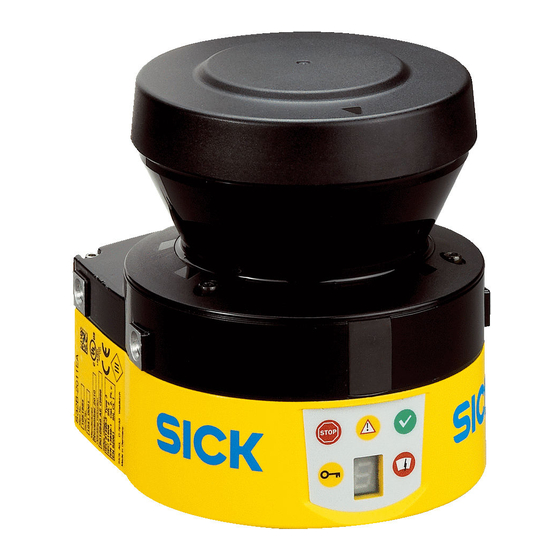

Safety Laser Scanner
Maximum safety in mini format –
contact-free, compact and easy to integrate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S300 and is the answer not in the manual?

Questions and answers

Related Manuals for SICK S300

Summary of Contents for SICK S300

  • Page 1 S300 Mini Safety Laser Scanner Maximum safety in mini format – contact-free, compact and easy to integrate...
  • Page 2 S300 With a height of 116 mm, the S300 Mini is the smallest safety laser scanner in the world o p t o - e L e c t r o n i c p r o t e c t i v e d e v i c e S | S i c K...
  • Page 3 • Footprint of 95 cm² 95 cm minimum footprint S300 Mini in actual size: 102 x 116 x 104 mm (W x H x D) 102 mm 8014476/2012-09-19 o p t o - e L e c t r o n i c p r o t e c t i v e d e v i c e S | S i c K...
  • Page 4 8 m radius The S300 Mini’s warning and protective fields enable flexible reaction to a variety of hazardous situations o p t o - e L e c t r o n i c p r o t e c t i v e d e v i c e S | S i c K...
  • Page 5 Lösung bis zur großen funktionsvielfalt Little effort for a lot of safety Application example: protecting a small vehicle with two S300 Mini S300 Mini Remote: maximum functionality in the minimum of space • Cost-effective all-round vehicle protection possible •...

  • Page 6: Product Description

    S300 Mini Safety laser scanners Maximum safety in mini format product description The S300 Mini safety laser scanner has This allows the realization of advanced an impressive ultra-compact design system solutions, for example with the ensuring it can fit easily into any vehicle Flexi Soft safety controller.
  • Page 7 (W x H x d) 102 mm x 116 mm x 105 mm Weight 0.8 kg, without connecting cables Functional data S300 Mini Standard S300 Mini remote Scanning angle 270° protective field range, radial 2 m / 3 m (depending on type)

  • Page 8: Electrical Data

    Availability depends on the configuration of the universal I/Os. The S300 Mini Remote can only be operated on an S3000/S300 safety laser scanner, on a safety controller Flexi Soft or on a sens:Control device via EFI. Use only pre-assembled extension cables.
  • Page 9 S300 Mini Safety laser scanners dimensional drawing ∅ 94 36.5 Max. 200 54.5 10.5 M5 × 7.5 All dimensions in mm 8014476/2012-09-19 o p t o - e L e c t r o n i c p r o t e c t i v e d e v i c e S | S i c K...
  • Page 10 S300 Mini Safety laser scanners connection diagrams You can find more connection diagrams at www.mysick.com S300 Mini Standard with restart interlock and external device monitoring +24 V S300 Mini Standard sh = shield • S300 Mini Standard in conjunction with relays/contactors •...
  • Page 11 S300 Mini Safety laser scanners S300 Mini Standard on UE10-3OS safety relay +24 V S300 Mini Standard sh = shield UE10-3OS • S300 Mini Standard on UE10-3OS safety relay • Operating mode: with restart interlock (universal I/O 1 must be configured as reset) and external device monitoring...
  • Page 12 S300 Mini Safety laser scanners Protective field switching between an S3000 Expert and an S300 Mini Remote with static inputs +24 V IN A1 IN B1 IN C1 IN D1 S3000 S300 Mini Remote H = housing sh = shield •...
  • Page 13 S300 Mini Safety laser scanners S300 Mini Remote: protective field switching with a Flexi Soft safety controller +24 V S300 Mini Remote S300 Mini Remote EFI 1 H = housing sh = shield Flexi Soft CPU1 Flexi Soft XTIO EFI 2 •...
  • Page 14 S300 Mini Safety laser scanners accessories Mounting systems figure property assembly / remark type part no. adjustment For rear mounting on – Mounting kit 1a 2034324 wall or machine For rear mounting on wall or machine with – Mounting kit 1b...
  • Page 15 S300 Mini Safety laser scanners Power supply units figure input voltage output voltage Maximum output type part no. current 2.1 A Power supply 7028789 100 V AC ... 240 V AC 24 V DC 3.9 A Power supply 7028790 Configuration software...
  • Page 16 • Laser measurement technology for lity of products, requests for quotation from SICK will provide you with an ideal detecting the volume, position and and online orders basis for your plans – there is no need contour of people and objects to settle for anything less than the best.
