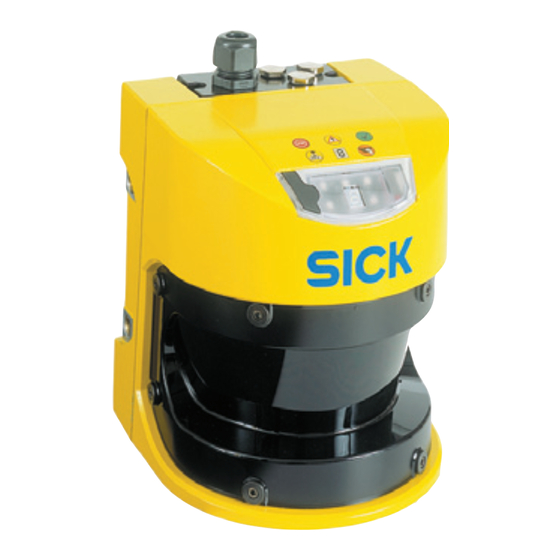

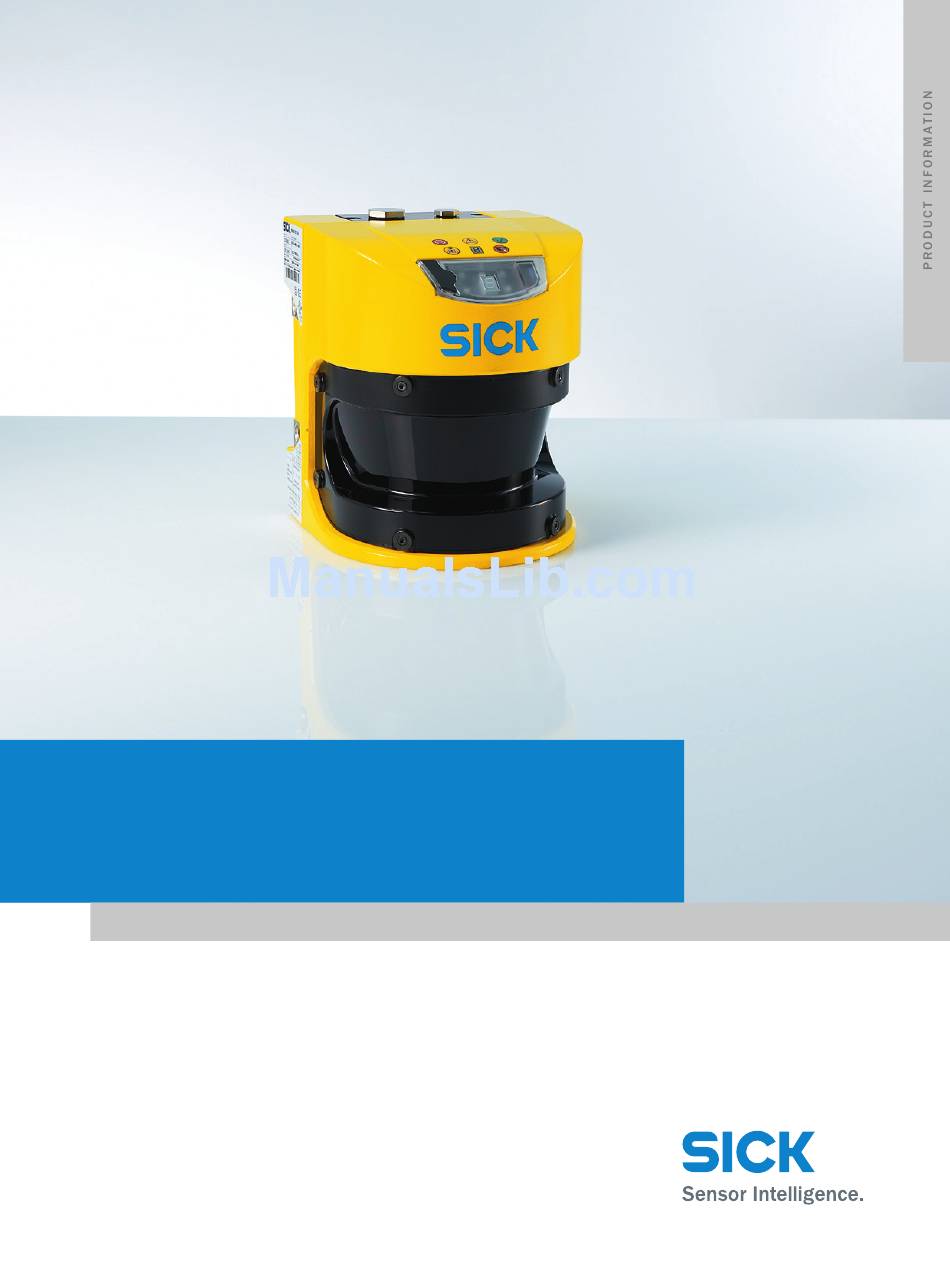

- Page 1 S3000 Expert Safety Laser Scanners Close safety gaps with 64 fields: Checkmate!
-
Page 2: Product Description
S3000 product family. Without refraining SICK, S3000 Expert comes with extend- from the usual reliability of the S3000, ed interoperability with other devices. All many more protecting tasks can be ac- around safety of autonomous guided ve- complished. -
Page 3: General Data
S3000 Expert Safety laser scanners Detailed technical data You can find more detailed data in the operating instructions. Download at www.mysick.com General data Laser protection class 1, (21 CFR 1040.10 and 1040.11, IEC 60825-1) Enclosure rating IP 65 (EN 60529) -
Page 4: Electrical Data
S3000 Expert Safety laser scanners Electrical data Connection type Plug-in connection housing with screw, screw-type terminals Supply voltage v 24 V DC (16.8 V DC ... 28.8 V DC) Power consumption 0.8 A (24 V DC), 2.3 A Number of inputs... -
Page 5: Ordering Information
S3000 Expert Safety laser scanners Ordering information Delivery S3000 systems: • Sensor head with I/O module mounted • Operating instructions and CDS (Configuration & Diagnostic Software) on CD-ROM • Adhesive label “Important information” The system plug has to be ordered separately! - Page 6 Safety laser scanners Applications Triple mode and 64 fields Two field set modes can be selected with S3000 Expert. With Different steering angles and payload conditions of automated triple mode a second warning field is available. Thereby pedes- guided vehicles can be easily realized with 64 fields. A 5th...
-
Page 7: Dimensional Drawing
S3000 Expert Safety laser scanners Dimensional drawing Area to be kept clear during M8x9 M13.5 136.8 installation of the scanner 27.8 65.2 77.5 Axis of rotation of motor 92.5 All dimensions in mm 8013972/2011-08-10 O P T O - E L E C T R O N I C P R O T E C T I v E D E v I C E S | S I C K... -
Page 8: Connection Diagrams
Combine and link safety solutions with Flexi Soft: Extended Switching of safety fields with static and dynamic inputs of safety with S3000 Expert safety laser scanners, Flexi Soft two scanners connected with Flexi Soft safety controller via safety controller and incremental encoders. -
Page 9: Mounting Systems
S3000 Expert Safety laser scanners Accessories Mounting systems Property Assembly Adjustment Note Type Part No. No adjustment – Mounting kit 1 2015623 facility For mounting at the rear on wall or Longitudinal and machine Only in conjunction cross-wise adjust- Mounting kit 2... - Page 10 S3000 Expert Safety laser scanners SDL connection cables Note Direction of Connection type Number of cores Cable length Part No. cable outlet 2.5 m 2029337 For the connection 2029338 Interconnectron of safety bus mod- Straight plug M23 x 12 10 m...
-
Page 11: Configuration Software
S3000 Expert Safety laser scanners Confi guration software Description Type Part No. CDS (Confi guration & Diagnostic Software) 2032314 Cleaning agent Description Type Part No. Plastic cleaner and care product, anti-static Plastic cleaner 5600006 Other Description Items supplied Type Part No. - Page 12 • Laser measurement technology for lity of products, requests for quotation from SICK will provide you with an ideal detecting the volume, position and and online orders basis for your plans – there is no need contour of people and objects to settle for anything less than the best.
