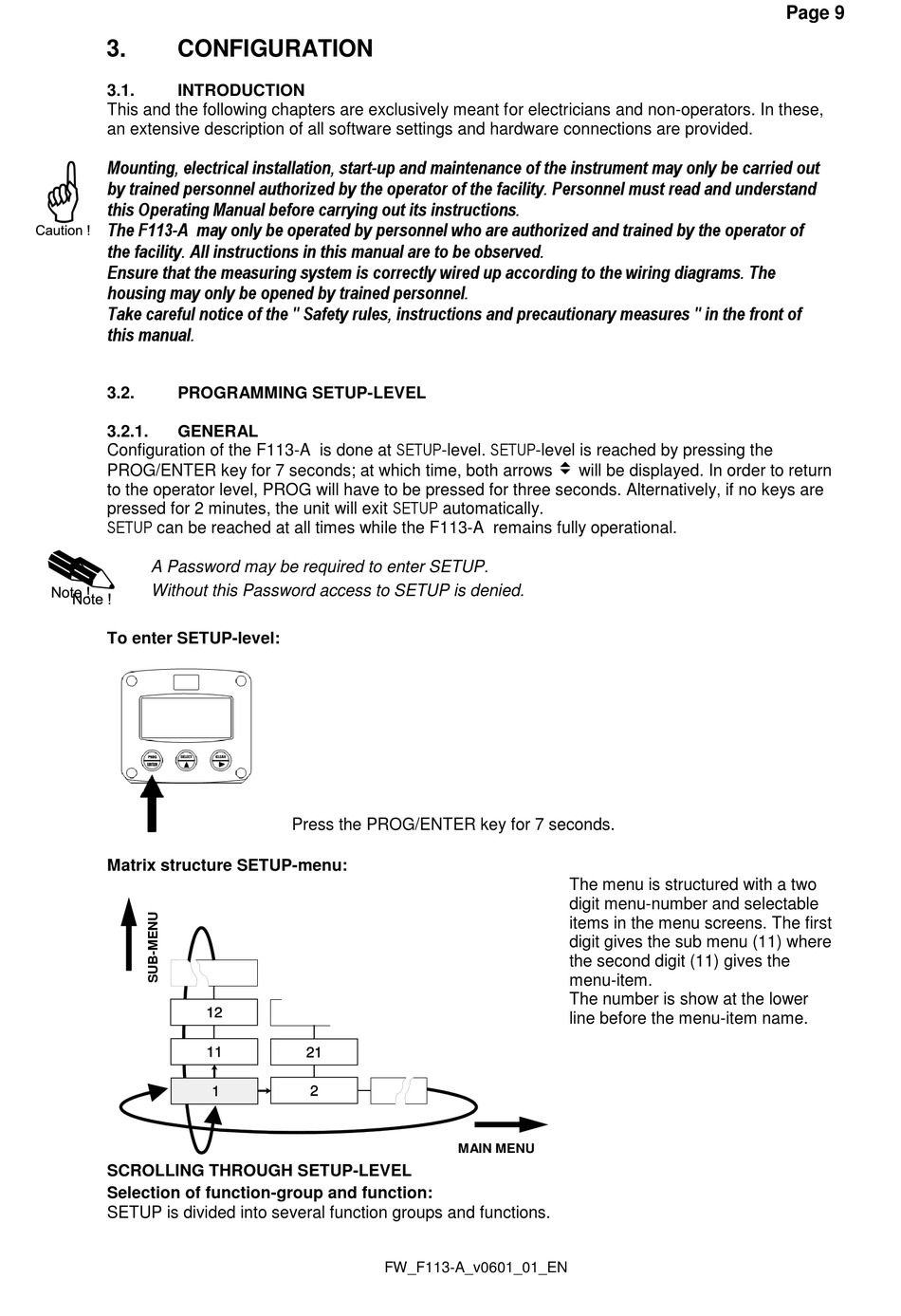

3.

CONFIGURATION

3.1.

INTRODUCTION

This and the following chapters are exclusively meant for electricians and non-operators. In these,
an extensive description of all software settings and hardware connections are provided.
Mounting, electrical installation, start-up and maintenance of the instrument may only be carried out
by trained personnel authorized by the operator of the facility. Personnel must read and understand
this Operating Manual before carrying out its instructions.
The F113-A may only be operated by personnel who are authorized and trained by the operator of
the facility. All instructions in this manual are to be observed.
Ensure that the measuring system is correctly wired up according to the wiring diagrams. The
housing may only be opened by trained personnel.
Take careful notice of the " Safety rules, instructions and precautionary measures " in the front of
this manual.
3.2.

PROGRAMMING SETUP-LEVEL

3.2.1.

GENERAL

Configuration of the F113-A is done at SETUP-level. SETUP-level is reached by pressing the
PROG/ENTER key for 7 seconds; at which time, both arrows  will be displayed. In order to return
to the operator level, PROG will have to be pressed for three seconds. Alternatively, if no keys are
pressed for 2 minutes, the unit will exit SETUP automatically.
SETUP can be reached at all times while the F113-A remains fully operational.
A Password may be required to enter SETUP.
Without this Password access to SETUP is denied.
To enter SETUP-level:
Matrix structure SETUP-menu:
SCROLLING THROUGH SETUP-LEVEL
Selection of function-group and function:
SETUP is divided into several function groups and functions.
Press the PROG/ENTER key for 7 seconds.
MAIN MENU
FW_F113-A_v0601_01_EN
The menu is structured with a two
digit menu-number and selectable
items in the menu screens. The first
digit gives the sub menu (11) where
the second digit (11) gives the
menu-item.
The number is show at the lower
line before the menu-item name.
Page 9
