4.4.3.

TERMINAL CONNECTORS

For Intrinsically Safe applications: read chapter 5.
The following terminal connectors are available:
PD / PF/ PM / PX
Power supply

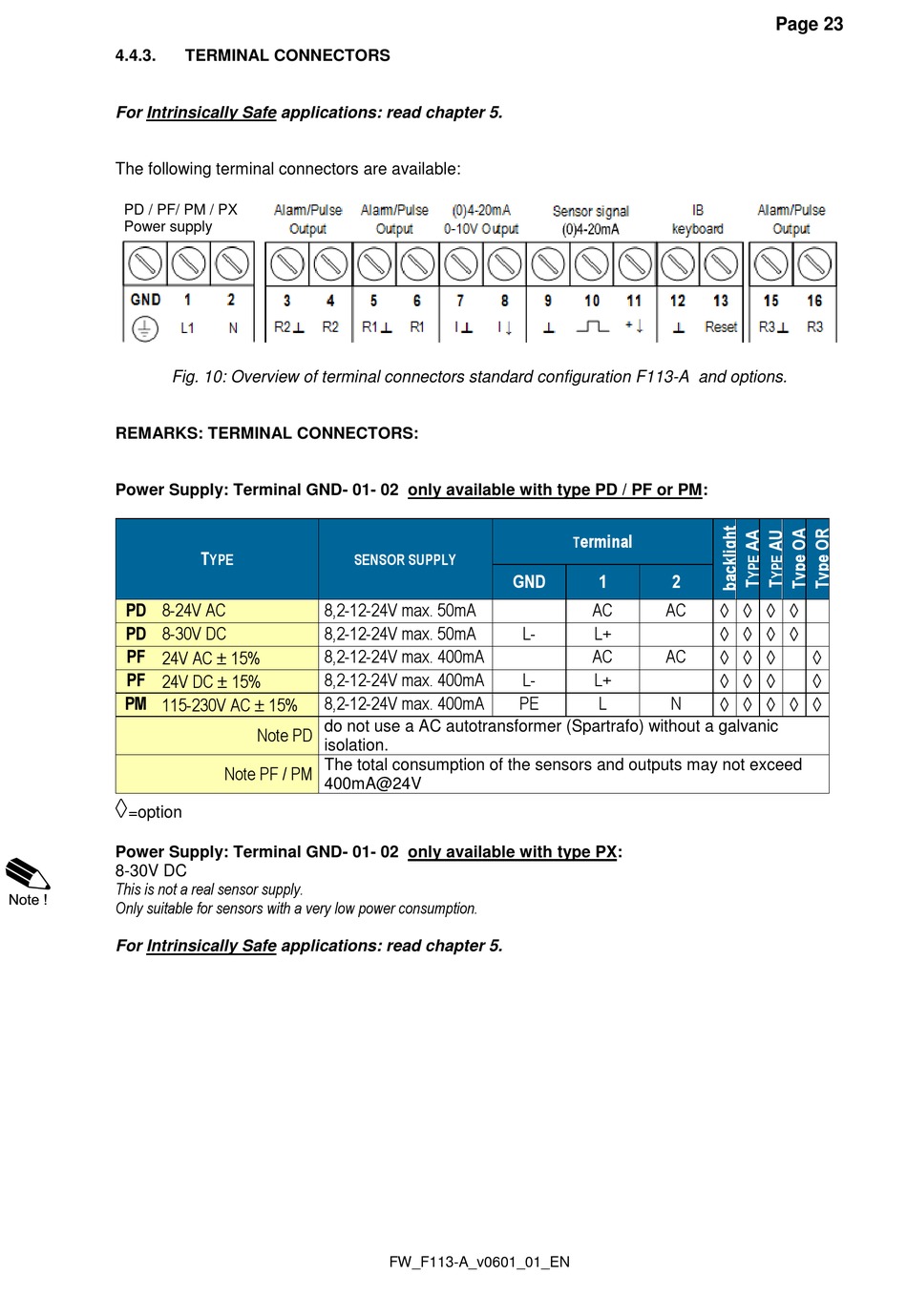

Fig. 10: Overview of terminal connectors standard configuration F113-A and options.
REMARKS: TERMINAL CONNECTORS:
Power Supply: Terminal GND- 01- 02 only available with type PD / PF or PM:
T
YPE
PD 8-24V AC
PD 8-30V DC
PF 24V AC  15%
PF 24V DC  15%
PM 115-230V AC  15%
Note PD
Note PF / PM
◊
=option
Power Supply: Terminal GND- 01- 02 only available with type PX:
8-30V DC
This is not a real sensor supply.
Only suitable for sensors with a very low power consumption.
For Intrinsically Safe applications: read chapter 5.
SENSOR SUPPLY
8,2-12-24V max. 50mA
8,2-12-24V max. 50mA
8,2-12-24V max. 400mA
8,2-12-24V max. 400mA
8,2-12-24V max. 400mA
do not use a AC autotransformer (Spartrafo) without a galvanic
isolation.
The total consumption of the sensors and outputs may not exceed
400mA@24V
