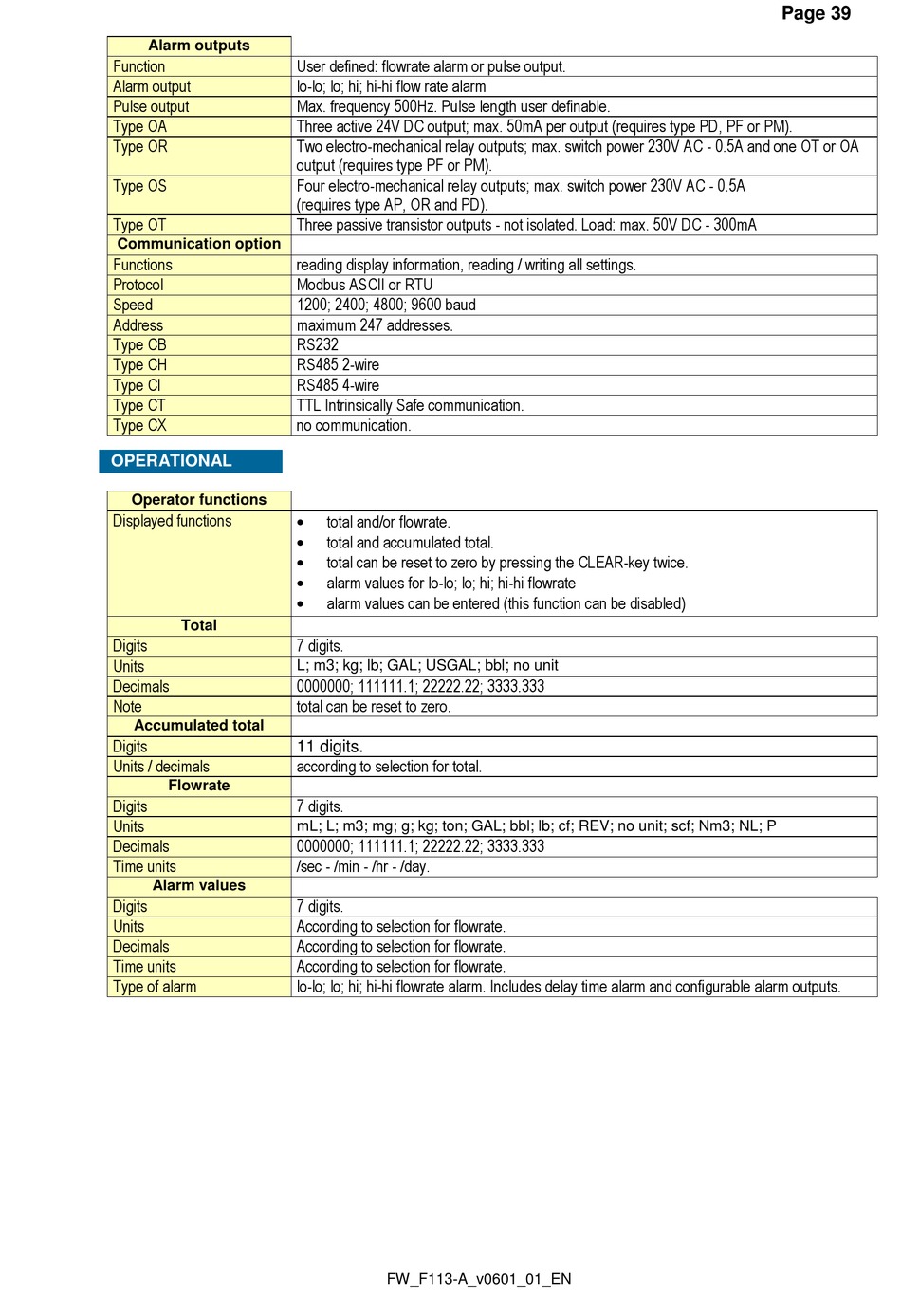

Fluidwell F Series Operation Manual page 39

Alarm outputs
Function
Alarm output
Pulse output
Type OA
Type OR
Type OS
Type OT
Communication option
Functions
Protocol
Speed
Address
Type CB
Type CH
Type CI
Type CT
Type CX
OPERATIONAL
Operator functions
Displayed functions
Total
Digits
Units
Decimals
Note
Accumulated total
Digits
Units / decimals
Flowrate
Digits
Units
Decimals
Time units
Alarm values
Digits
Units
Decimals
Time units
Type of alarm
User defined: flowrate alarm or pulse output.
lo-lo; lo; hi; hi-hi flow rate alarm
Max. frequency 500Hz. Pulse length user definable.
Three active 24V DC output; max. 50mA per output (requires type PD, PF or PM).
Two electro-mechanical relay outputs; max. switch power 230V AC - 0.5A and one OT or OA
output (requires type PF or PM).
Four electro-mechanical relay outputs; max. switch power 230V AC - 0.5A
(requires type AP, OR and PD).
Three passive transistor outputs - not isolated. Load: max. 50V DC - 300mA
reading display information, reading / writing all settings.
Modbus ASCII or RTU
1200; 2400; 4800; 9600 baud
maximum 247 addresses.
RS232
RS485 2-wire
RS485 4-wire
TTL Intrinsically Safe communication.
no communication.

total and/or flowrate.

total and accumulated total.

total can be reset to zero by pressing the CLEAR-key twice.

alarm values for lo-lo; lo; hi; hi-hi flowrate

alarm values can be entered (this function can be disabled)
7 digits.
L; m3; kg; lb; GAL; USGAL; bbl; no unit
0000000; 111111.1; 22222.22; 3333.333
total can be reset to zero.
11 digits.
according to selection for total.
7 digits.
mL; L; m3; mg; g; kg; ton; GAL; bbl; lb; cf; REV; no unit; scf; Nm3; NL; P
0000000; 111111.1; 22222.22; 3333.333
/sec - /min - /hr - /day.
7 digits.
According to selection for flowrate.
According to selection for flowrate.
According to selection for flowrate.
lo-lo; lo; hi; hi-hi flowrate alarm. Includes delay time alarm and configurable alarm outputs.
FW_F113-A_v0601_01_EN
Page 39
