2.

OPERATIONAL

2.1.

GENERAL

The F113-A may only be operated by personnel who are authorized and trained by the operator of
the facility. All instructions in this manual are to be observed.
Take careful notice of the " Safety rules, instructions and precautionary measures " in the front of
this manual.
This chapter describes the daily use of the F113-A . This instruction is meant for users / operators.
2.2.

CONTROL PANEL

The following keys are available:
Functions of the keys
This key is used to program and save new values or settings.
It is also used to gain access to SETUP-level; please read chapter 3.
This key is used to SELECT accumulated total and flowrate alarm values.
The arrow-key  is used to increase a value after PROG has been pressed
or to configure the unit; please read chapter 3.
Press this key twice to CLEAR the value for total.
The arrow-key is used to select a digit after PROG has been pressed or to
configure the unit; please read chapter 3.
2.3.

OPERATOR INFORMATION AND FUNCTIONS

In general, the F113-A will always function at Operator level. The information displayed is
dependent upon the SETUP-settings. All pulses generated by the connected flowmeter are
measured by the F113-A in the background, whichever screen refresh rate setting is chosen. After
pressing a key, the display will be updated very quickly during a 30 second period, after which it will
slow-down again.
RUN
For the Operator, the following functions are available:

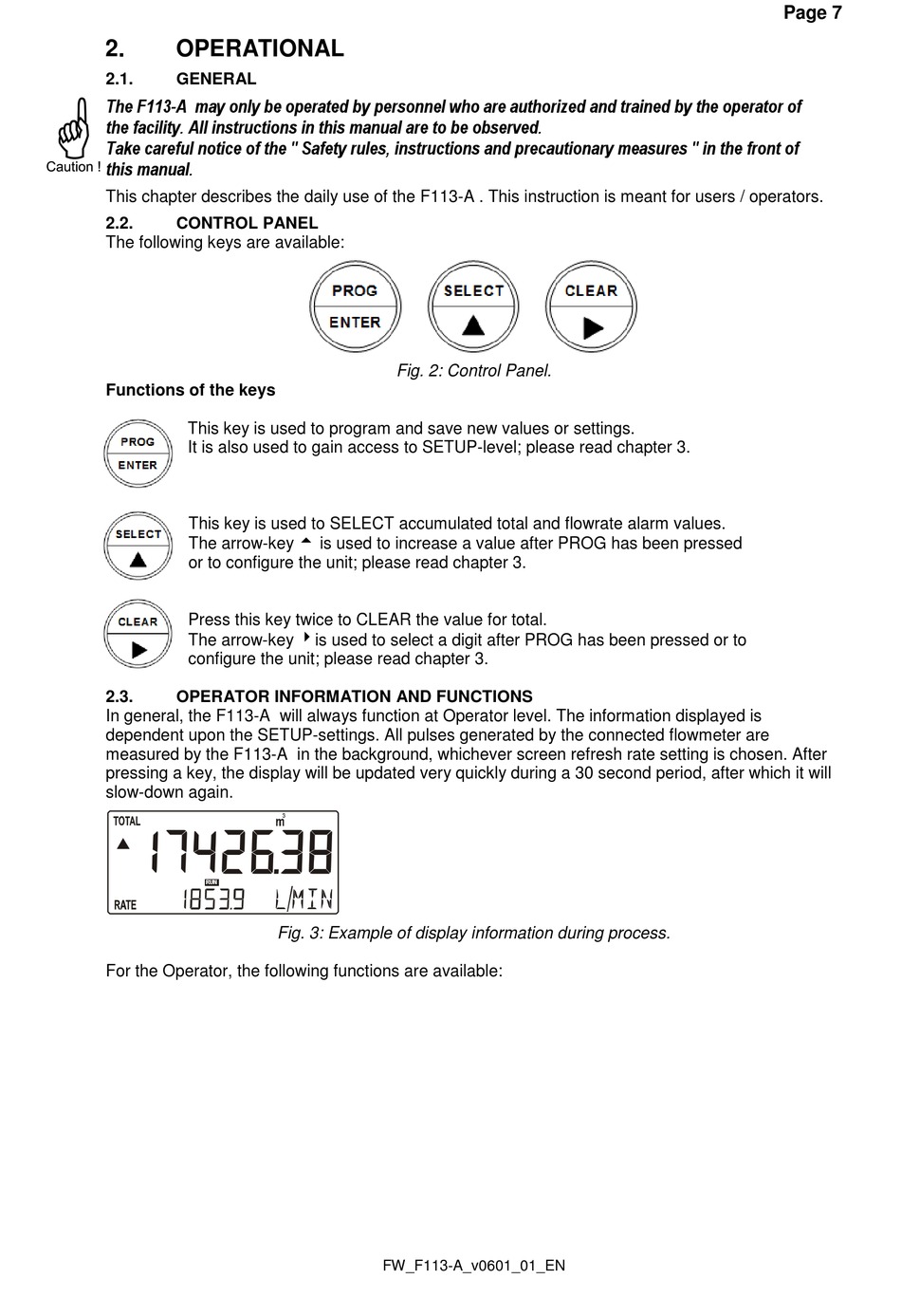

Fig. 2: Control Panel.
Fig. 3: Example of display information during process.
