Installing the Lock

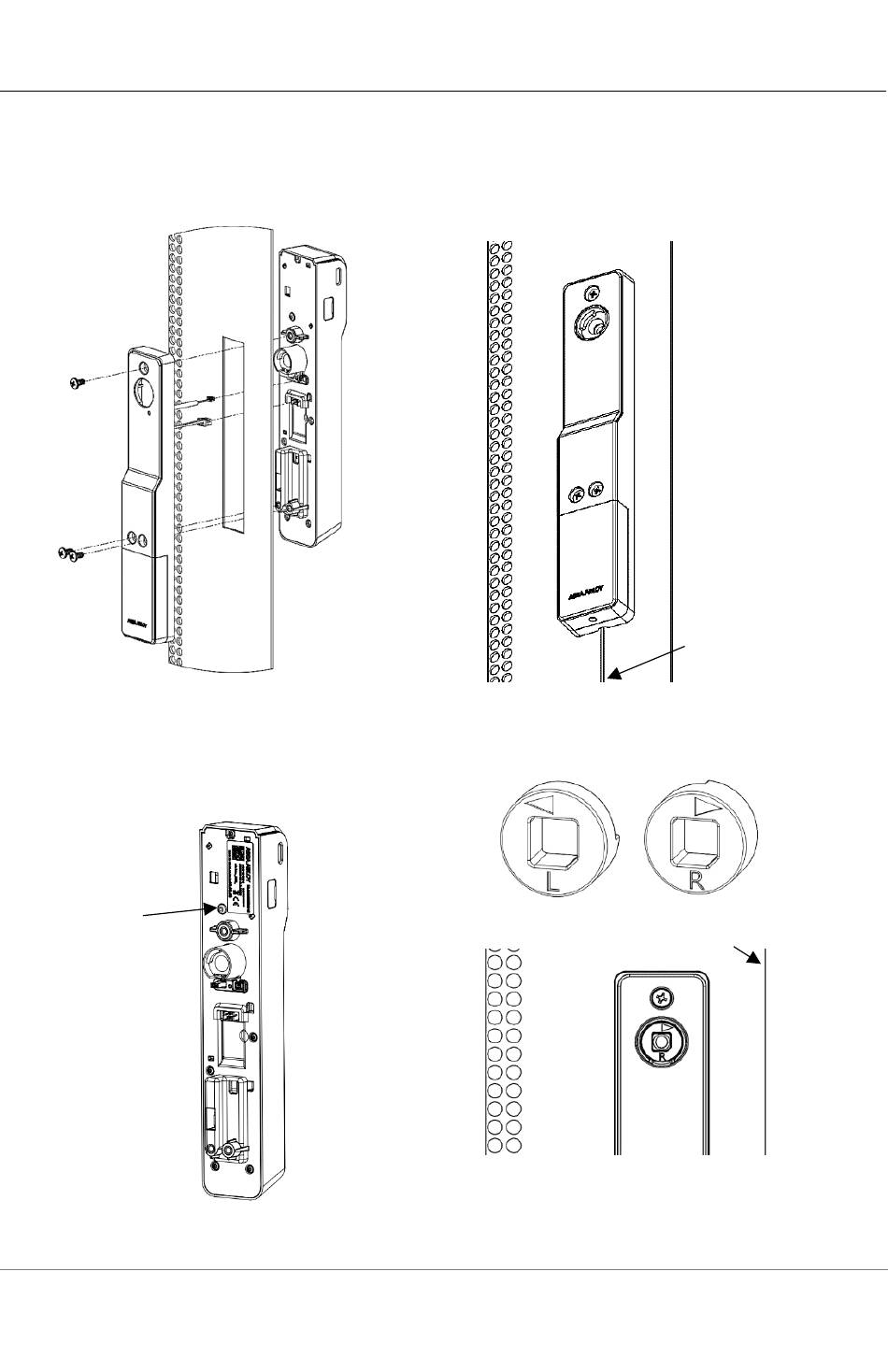

1. Locate the 150mm x 25mm lock cutout on the door. Connect battery cable and
optional DPS cable to lock body. Secure battery bracket to lockbody using 3x screw
B.
2. Ensure lock body is flush against the
mounting surface to depress tamper
switch.
Tamper
Switch
Page 4 of 12
For more information visit website assaabloyesh.com
3. Select appropriate handing selector.
Note: ensure that the arrow on the
handing selector is pointing towards
the edge of the door.
DPS Cable
(optional)
Edge
Door
P/N: 3080006.017_1
