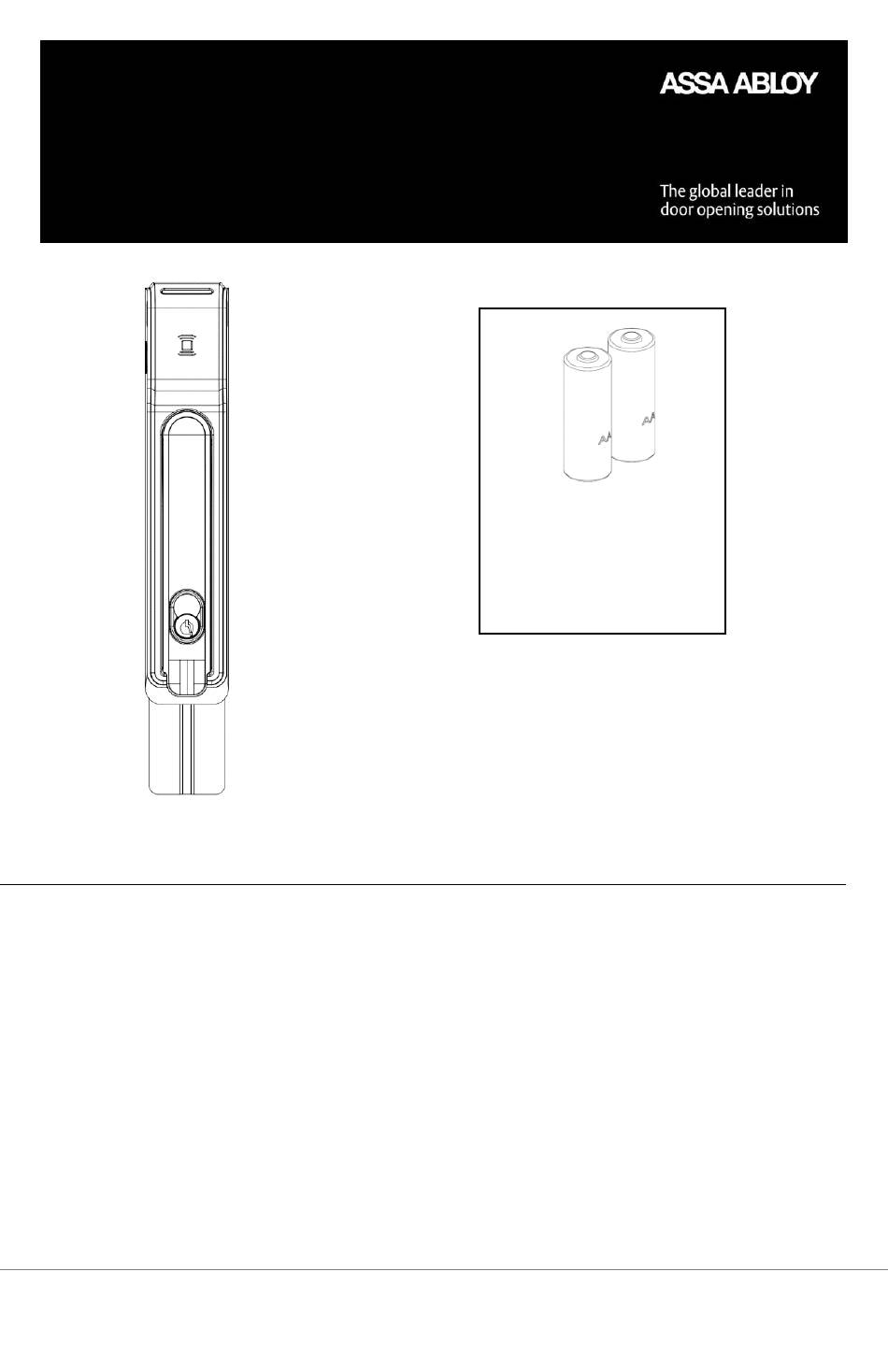

HES KS100 Aperio
Wireless Cabinet Lock
Installation and Operating Instructions
Product Specifications
Wireless Frequency: 2.4GHz, IEEE 802.15.4, using AES 128-bit encryption
Lock Battery Type: AA Lithium, 1.5 Volts (V)
Battery Life: 50,000 cycles*
Holding Force: 400 lbs
FCC Part 15 Compliant, Industry Canada Compliant
Operating Temperature: 32 to 122 F (0 to 50 C)
®
HID
multiCLASS SE
HID iClass SE (SIO-enabled), HID iCLASS Seos, HID MIFARE SE, HID DESfire EV1 SE, MIFARE
CLASSIC DESfire EV1. Low Frequency (125KHz) – HID Prox, AWID, EM4102, ioProx. NFC Enabled
Mobile Phones.
Page 1 of 12
For more information visit website assaabloyesh.com
technology Credentials Supported: High Frequency (13.56 MHz) – HID iCLASS,
®
2x
AA Lithium Batteries
required. Use of other
types of batteries, such as
alkaline, will significantly
decrease battery life.
*All battery life claims are approximate and based on a set
configuration profile. Battery performance is based on pre-
defined system settings such as battery chemistry and battery
model used, credential presentation settings (LED/buzzer), UHF
polling period, UHF status intervals, and operations per
day. Actual battery performance will vary and depends on the
factors above.
P/N: 3080006.017_1
Advertisement
Table of Contents
Related Manuals for Assa Abloy HES KS100 Aperio
Summary of Contents for Assa Abloy HES KS100 Aperio
- Page 1 HES KS100 Aperio Wireless Cabinet Lock Installation and Operating Instructions AA Lithium Batteries required. Use of other types of batteries, such as alkaline, will significantly decrease battery life. *All battery life claims are approximate and based on a set configuration profile.
-
Page 2: Recommended Tools
Recommended tools Cutting Wheel Phillips #2 Screwdriver Hardware Specifications Table 1 – Cam CAM LENGTH DEPTH 38mm - 4 38mm [1-1/2"] 26mm [1”] (Standard) 38mm - 5 28mm 38mm [1-1/2”] (Optional) [1-1/10"] 45 mm - 1 45mm 18mm (Optional) [1-3/4”] [7/10”] DPS Cable Extension Optional –... -
Page 3: Package Contents
Package Contents Battery Bracket Lock Body Handle Assembly Note: SFIC mechanical key override/SFIC blank sold separately. SFIC Cam and Handing Selectors Spacer Screw A 3x Screw B 3x Dolphin 2x AA Lithium 8/32 x 5/16” #1/4-20 x .50 Connector Batteries Truss Head Pan Head Phillips... -
Page 4: Installing The Lock
Installing the Lock 1. Locate the 150mm x 25mm lock cutout on the door. Connect battery cable and optional DPS cable to lock body. Secure battery bracket to lockbody using 3x screw DPS Cable (optional) 2. Ensure lock body is flush against the 3. - Page 5 4. Install handle, handing selector, and cam. Secure with screw A. Installing the SFIC Core (Optional) 1. Insert SFIC core and cam into handle. Use spacer for 6 pin SFIC core. Note: SFIC blank plastic core (SFIC-BC) sold separately. SFIC Blank is required if no cylinder Is used.
-
Page 6: Installing The Batteries
Installing the Batteries 1. Loosen screw on battery cover, slide cover down, and install batteries in the appropriate orientation. Micro USB Port For emergency power & local (hard wired) firmware updates, use micro USB port located on the side of the KS100 reader. -
Page 7: Optional Accessories
CAM: 38MM - 5 (28mm Depth) KS-CAM45 CAM: 45MM - 1 (18mm Depth) ASSA ABLOY Aperio™ AH20 1:1 Wiegand Hub AH20W14 ASSA ABLOY Aperio™ Hub External Antenna - 3,9 EXT-10-ANT dBi Omnidirectional ASSA ABLOY Aperio™ Programming Kit APA-10-PC ASSA ABLOY Aperio™ USB Radio Dongle... -
Page 8: Led Codes
LED Codes Page 8 of 12 For more information visit website assaabloyesh.com P/N: 3080006.017_1... - Page 9 Aperio Hub Technical Data - AH20 Approvals CE, ETL, FCC, IC, C-Tick FCC 47CFR Part 15 subpart B and subpart C; IC RSS-210 Safety and emissions EN ETSI 301 489-17 v2.1.1; ENETSI 300 328 v1.7.1; EN 60950-1 ed.2 2007 Dimensions (mm) 82x82x37 Power Supply 8-24 VDC...
-
Page 10: Connecting The Hub
Connecting the Hub The following applies only to Aperio factory paired kits with AH20 Hubs. Connect the Wiegand D1, D0, red, and green LED signals Note: The Green LED input is used to grant access to the cabinet lock. If the Green LED signal is not available to indicate approved access, the approval input can be activated by a relay with “NO”... - Page 11 ARNING FCC Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 12 Conformité aux normes IC Cet appareil est confrome avec Industrie Canada exempt de license RSS standard(s). Son fonctionnement est souimes aux deux conditions suivantes: (1) cet appareil ne peut causer d’interférences, et (2) cet appareil doit accepter toute interference, y compris des interférences qui peuvent provoquer un fonctionnement indésirable du périphérique.
