Multi-purpose lock

Advertisement

Quick Links

Installation Instructions
®
Multi-Purpose Lock

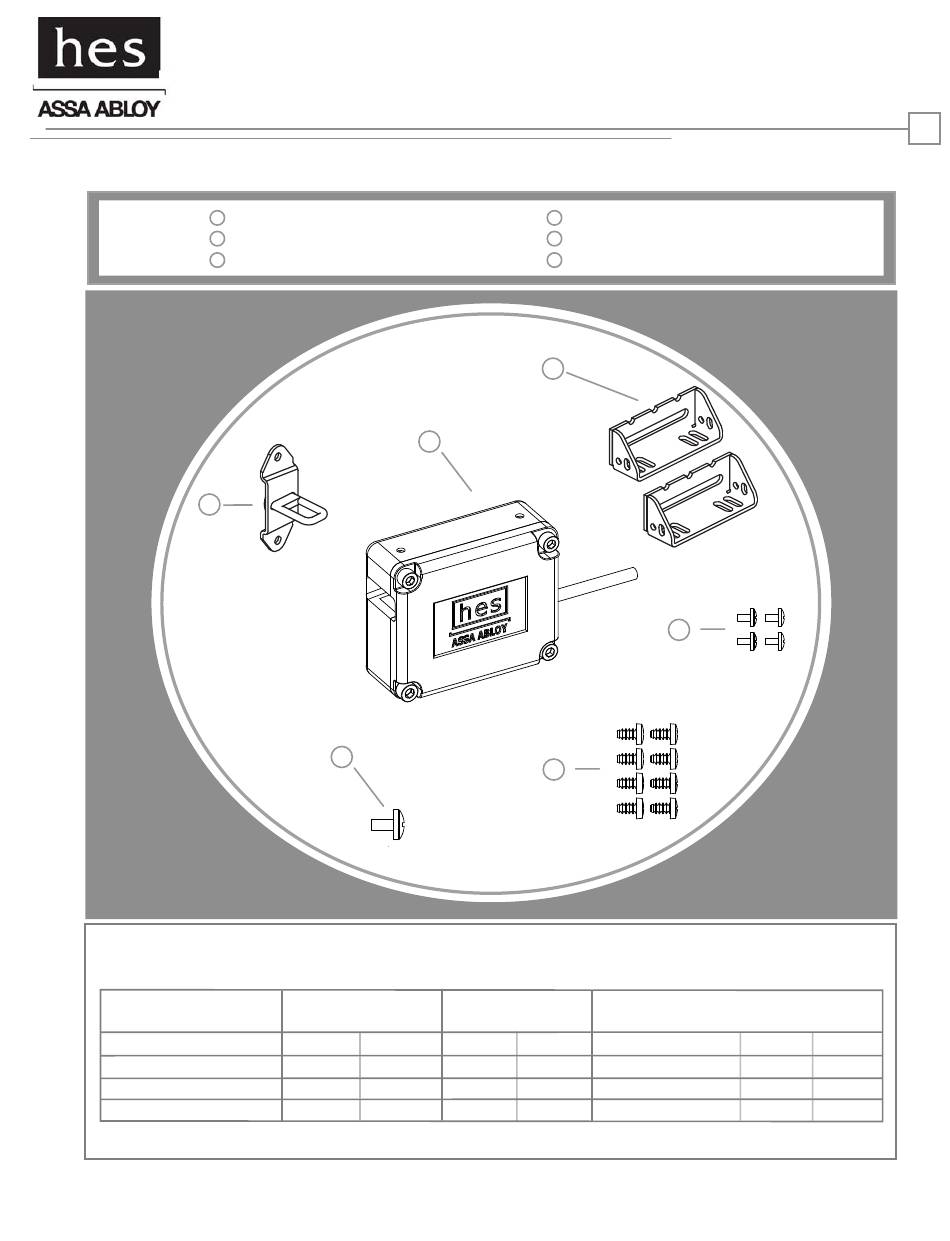

Product Components
Hook Bracket Assembly
1
660 Multi-Purpose Lock Body
2
Lock Mounting Brackets
3
1
Electrical Specifications
ELECTRICAL RATINGS
FOR SOLENOID
Operating Voltage +/- 10%
Resistance in Ohms
Watts Seated
Amps Seated
ASSA ABLOY, the global leader
in door opening solutions
2
6
INTERMITTENT DUTY
CONTINUOUS DUTY
STANDARD
12VDC
24VDC
12VDC
48
192
17
3
3
8.4
250mA
125mA
700mA
#6-32 X 3/16" Screws
4
#10 X 1/2" Screws
5
#8-32 X 5/8" Screw
6
3
5
MINIMUM WIRE GAUGE REQUIREMENTS
PRELOAD
24VDC
SOLENOID VOLTAGE
200 feet or less
67.8
200 - 300 feet
8.4
300 - 400 feet
350mA
HES, Inc.
Phoenix, AZ 85044
800-626-7590
www.hesinnovations.com
4
12VDC
24VDC
14 gauge
18 gauge
12 gauge
18 gauge
12 gauge
16 gauge
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HES 660 and is the answer not in the manual?

Questions and answers

Summary of Contents for Assa Abloy HES 660

  • Page 1 14 gauge 18 gauge Resistance in Ohms 67.8 200 - 300 feet 12 gauge 18 gauge Watts Seated 300 - 400 feet 12 gauge 16 gauge Amps Seated 250mA 125mA 700mA 350mA ASSA ABLOY, the global leader in door opening solutions...
  • Page 2 Installation Directions CAUTION! Before connecting any device at the installation site, verify input voltage using a multimeter. Many power supplies and low voltage transformers operate at higher levels than listed. Any input voltage exceeding 10% of the solenoid rating may cause severe damage to the unit and will void the warranty. 4.
  • Page 3 Installation Directions DIAGRAM 3: MOUNTING TEMPLATE DIAGRAM 6: HOOK BRACKET INSTALLATION Model 660 Mounting Template Align dotted line with outer edge of cabinet. Tape Model 660 Mounting Template to inside surface of cabinet. Drill four 1/16” holes through paper template. MODEL 660 LOCK ASSEMBLY DIAGRAM 4: POWER &...
  • Page 4 Installation Directions DIAGRAM 5: HOOK BRACKET INSTALLATION Left hand 7/16” config shown 1/16” 1-11/16” Inside surface of Cabinet Inside surface of cabinet DIAGRAM 6: FINAL LOCKDOWN DIAGRAM 7: OPTIONAL KEY OVERRIDE X=1/4” + R1 Y= 2-1/8” + R1 2-1/8” + R1 PADDLE: 660 KO OPTION MOUNTED TO...
