Recommended tools

Cutting Wheel
Phillips #2 Screwdriver

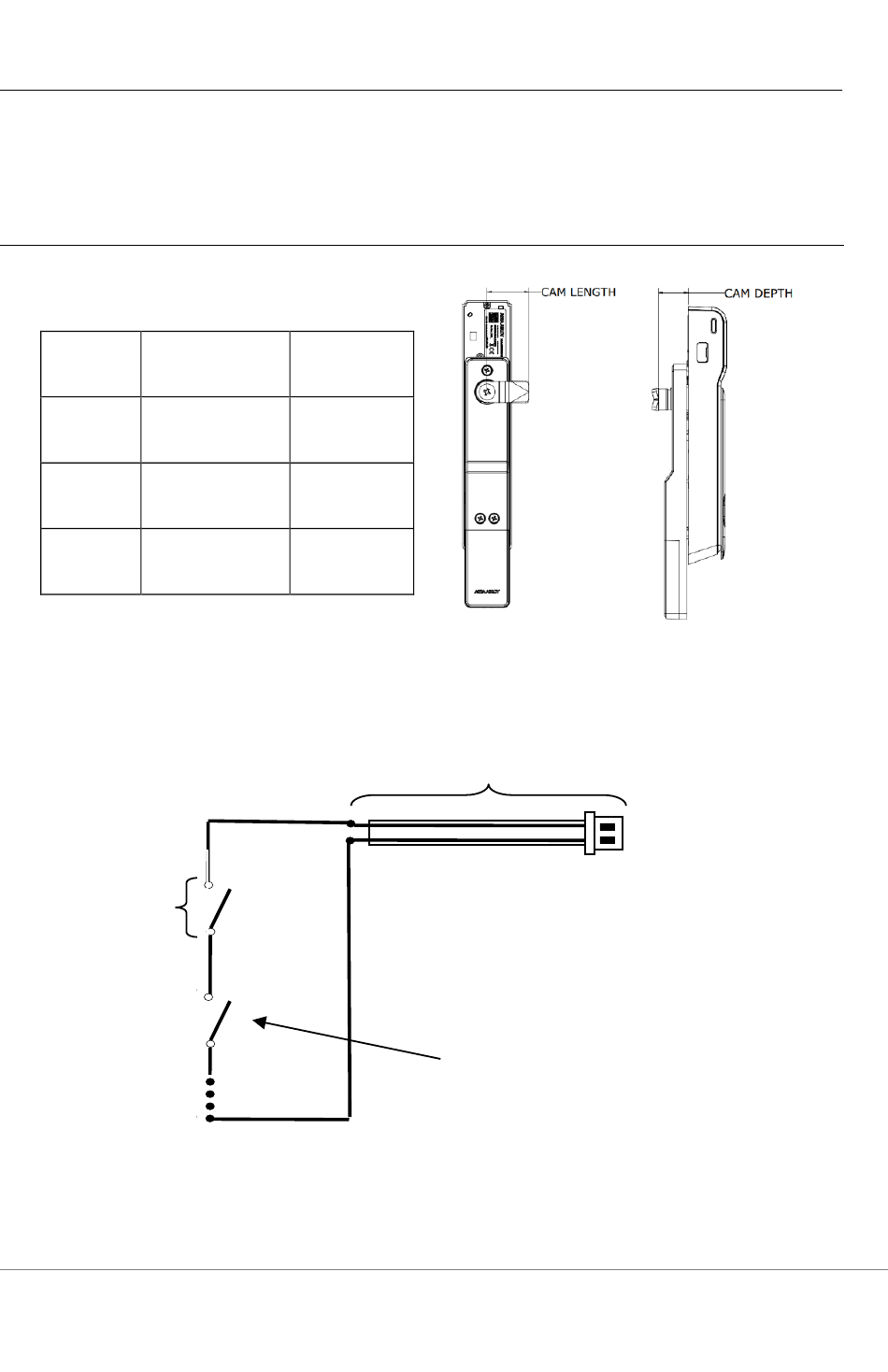

Hardware Specifications

Table 1 – Cam
CAM CAM LENGTH
38mm - 4
38mm [1-1/2"]
(Standard)
38mm - 5
38mm [1-1/2"]
(Optional)
45 mm - 1 45mm
(Optional) [1-3/4"]
DPS Cable Extension
Optional – The DPS signal is closed when the handle is resting in its locked position. The DPS circuit can be
extended to include normally open DPS switches arranged in a series to monitor additional doors and panels
Switch #1
(SPST-NO):
Provided
DPS
Switches
(SPST-NO):
As Needed
Optional
For Technical Support Please call 1-800-810-WIRE
Page 2 of 12
For more information visit website assaabloyesh.com
CAM
DEPTH
26mm [1"]
28mm
[1-1/10"]
18mm
[7/10"]
DPS Extension Cable
Extending the DPS Circuit:
A: Remove the DPS jumper
B: Connect the included DPS extension
C: Connect additional normally open
cable
DPS switches as shown to monitor
additional panels.
P/N: 3080006.017_1
