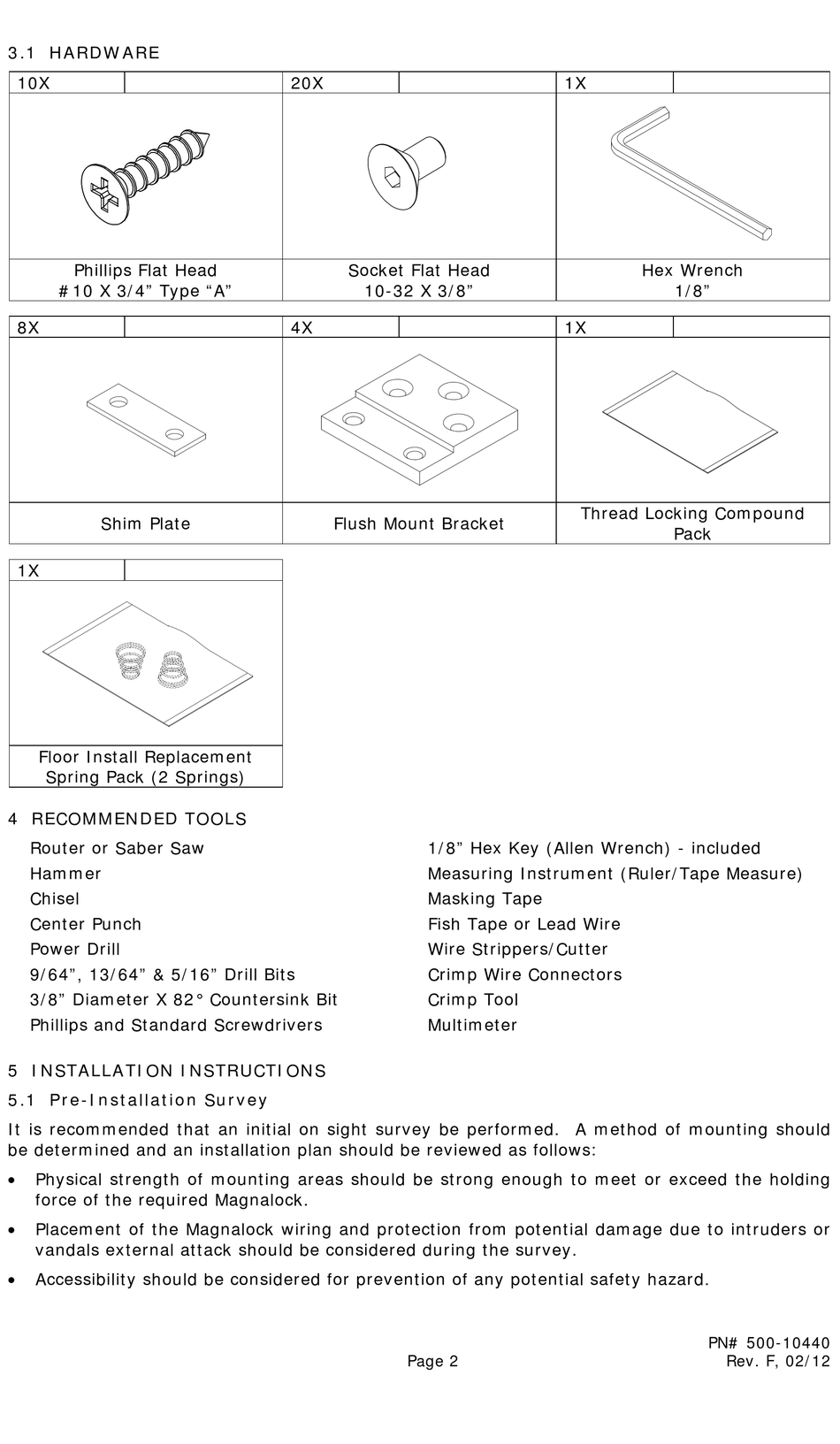

3.1 HARDWARE
10X
Phillips Flat Head
#10 X 3/4" Type "A"
8X
Shim Plate
1X
Floor Install Replacement
Spring Pack (2 Springs)

4 RECOMMENDED TOOLS

Router or Saber Saw
Hammer
Chisel
Center Punch
Power Drill
9/64", 13/64" & 5/16" Drill Bits
3/8" Diameter X 82° Countersink Bit
Phillips and Standard Screwdrivers

5 INSTALLATION INSTRUCTIONS

5.1 Pre-Installation Survey
It is recommended that an initial on sight survey be performed. A method of mounting should
be determined and an installation plan should be reviewed as follows:
 Physical strength of mounting areas should be strong enough to meet or exceed the holding
force of the required Magnalock.
 Placement of the Magnalock wiring and protection from potential damage due to intruders or
vandals external attack should be considered during the survey.
 Accessibility should be considered for prevention of any potential safety hazard.
20X
Socket Flat Head
10-32 X 3/8"
4X
Flush Mount Bracket
1/8" Hex Key (Allen Wrench) - included
Measuring Instrument (Ruler/Tape Measure)
Masking Tape
Fish Tape or Lead Wire
Wire Strippers/Cutter
Crimp Wire Connectors
Crimp Tool
Multimeter
Page 2
1X
Hex Wrench
1/8"
1X
Thread Locking Compound
Pack
PN# 500-10440
Rev. F, 02/12
