ILX800-SMSG ♦ Micro800 Platform
SMS Text Plug-in Module for GSM Networks

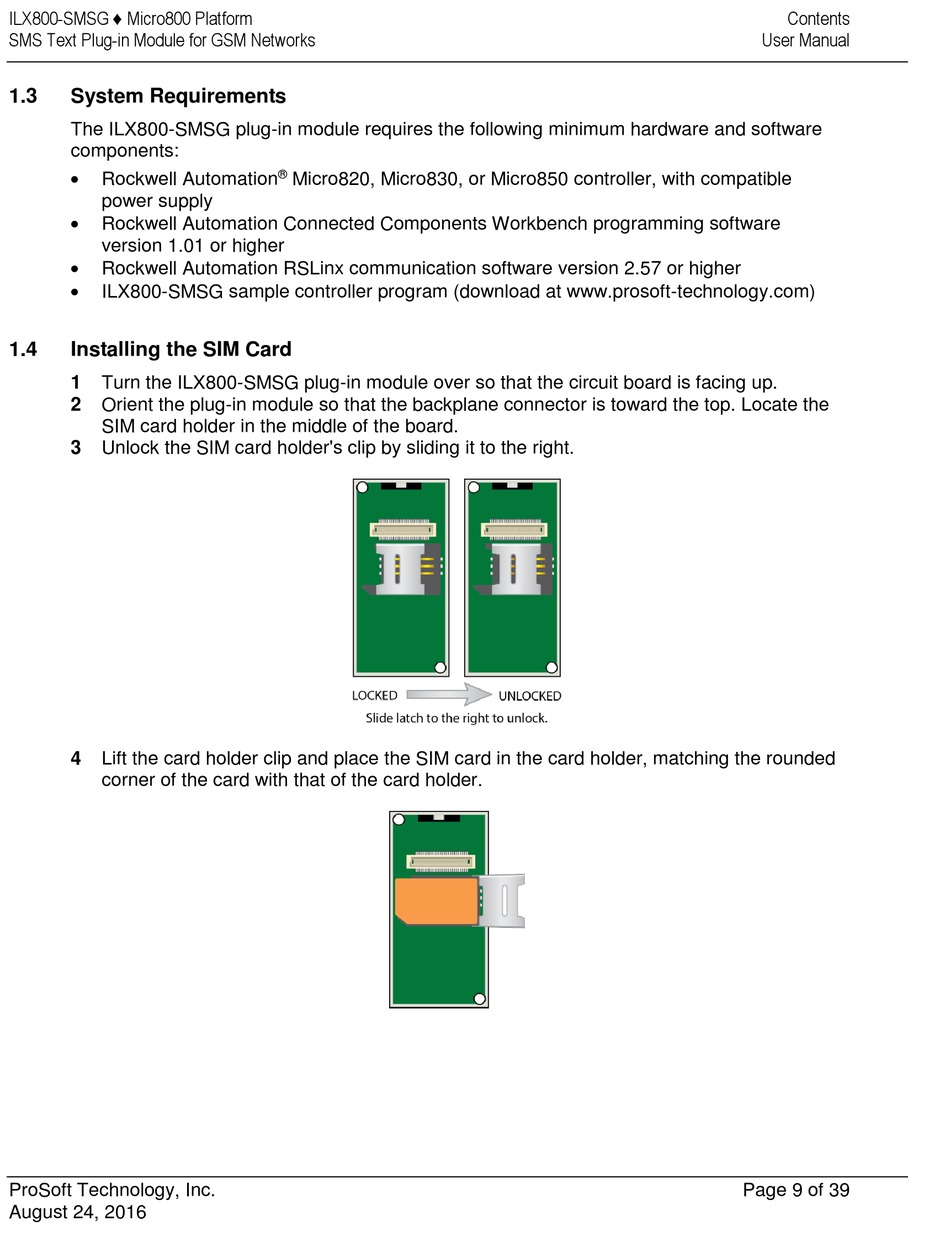

1.3 System Requirements
The ILX800-SMSG plug-in module requires the following minimum hardware and software
components:

Rockwell Automation
power supply

Rockwell Automation Connected Components Workbench programming software
version 1.01 or higher

Rockwell Automation RSLinx communication software version 2.57 or higher

ILX800-SMSG sample controller program (download at www.prosoft-technology.com)
1.4 Installing the SIM Card
1 Turn the ILX800-SMSG plug-in module over so that the circuit board is facing up.
2 Orient the plug-in module so that the backplane connector is toward the top. Locate the
SIM card holder in the middle of the board.
3 Unlock the SIM card holder's clip by sliding it to the right.
4 Lift the card holder clip and place the SIM card in the card holder, matching the rounded
corner of the card with that of the card holder.
ProSoft Technology, Inc.
August 24, 2016
®
Micro820, Micro830, or Micro850 controller, with compatible
