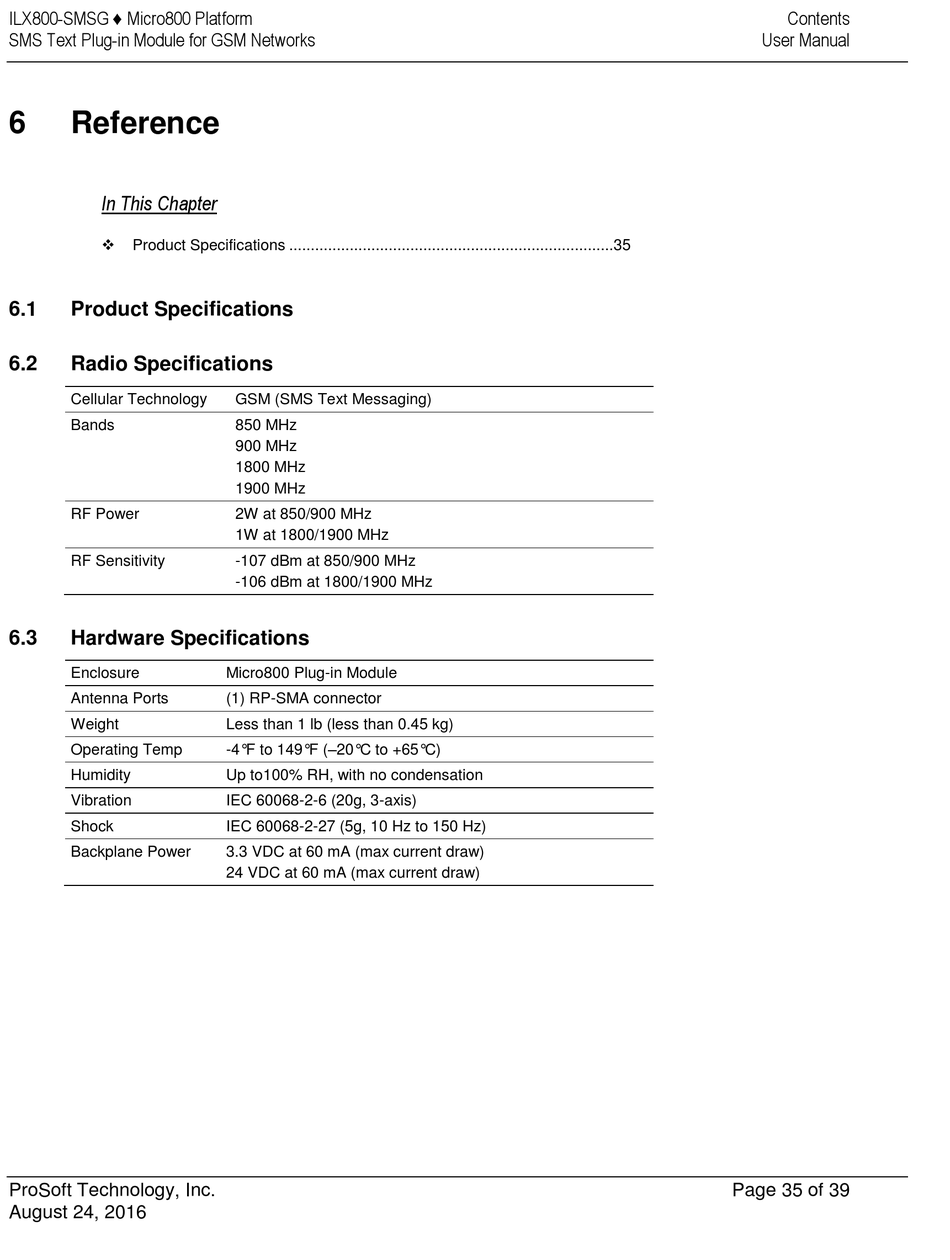

ProSoft Technology ILX800-SMSG User Manual page 35

ILX800-SMSG ♦ Micro800 Platform
SMS Text Plug-in Module for GSM Networks
6 Reference
In This Chapter

Product Specifications ...........................................................................35
6.1 Product Specifications
6.2 Radio Specifications
Cellular Technology
Bands
RF Power
RF Sensitivity
6.3 Hardware Specifications
Enclosure
Antenna Ports
Weight
Operating Temp
Humidity
Vibration
Shock
Backplane Power
ProSoft Technology, Inc.
August 24, 2016
GSM (SMS Text Messaging)
850 MHz
900 MHz
1800 MHz
1900 MHz
2W at 850/900 MHz
1W at 1800/1900 MHz
-107 dBm at 850/900 MHz
-106 dBm at 1800/1900 MHz
Micro800 Plug-in Module
(1) RP-SMA connector
Less than 1 lb (less than 0.45 kg)
-4°F to 149°F (–20°C to +65°C)
Up to100% RH, with no condensation
IEC 60068-2-6 (20g, 3-axis)
IEC 60068-2-27 (5g, 10 Hz to 150 Hz)
3.3 VDC at 60 mA (max current draw)
24 VDC at 60 mA (max current draw)
Contents
User Manual
Page 35 of 39
