ILX800-SMSG ♦ Micro800 Platform
SMS Text Plug-in Module for GSM Networks
2.4

Entering a Test Phone Number

Set up a test phone number in the sample program. Once the program has been
downloaded, the module will send out a greeting text message on boot-up to this phone
number.
1 Double-click the L
Project Organizer pane.
2 Click the header of the N

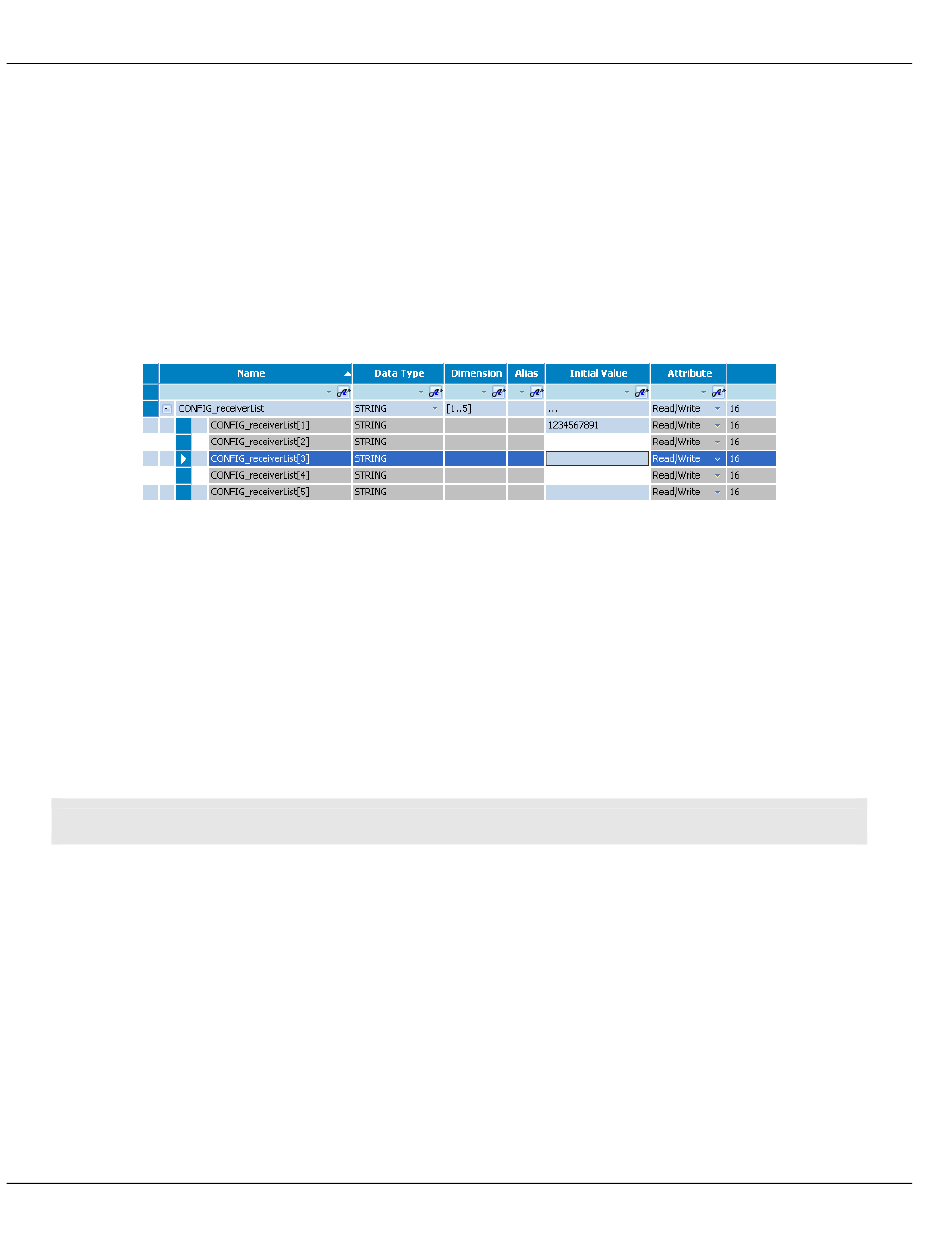

3 Find the variable CONFIG_receiverList in the Name column. Click the [+] sign next to
CONFIG_receiverList to expand it.
4 Enter an area code and phone number in the Initial Value column. Do not enter any
spaces, parentheses or hyphens.
For more information about entering phone numbers in the Receiver List, see Receiver List.
2.5

Connecting the Controller to Your PC

You will need a Type A/B USB cable to connect the controller to your PC.
1 Connect the USB cable's Type A plug to a USB jack on your PC.
2 Connect the USB cable's Type B plug to the USB jack on the controller.
3 If the driver for the USB connection to the controller is not already installed on your PC,
Windows will launch the Found New Hardware Wizard. Follow the prompts to install the
driver.
Note: RSLinx will automatically configure and start the AB_VBP-x driver for the USB connection.
ProSoft Technology, Inc.
August 24, 2016
V icon for the PSFT_ILX800_SMSG program in the
OCAL ARIABLES
column to sort the variables alphabetically.
AME
Contents
User Manual
Page 17 of 39
