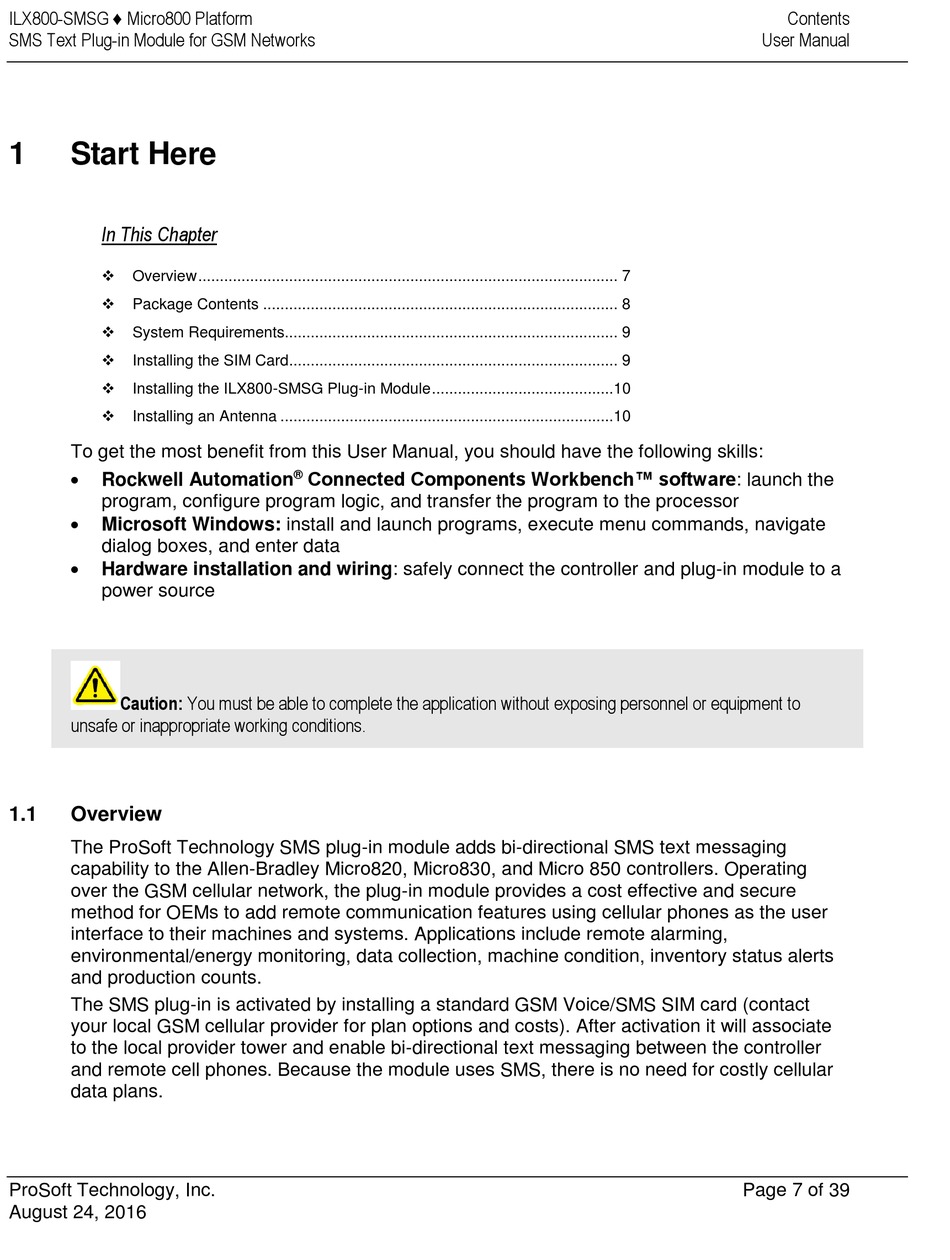

ProSoft Technology ILX800-SMSG User Manual page 7

ILX800-SMSG ♦ Micro800 Platform
SMS Text Plug-in Module for GSM Networks
1 Start Here
In This Chapter

Overview ................................................................................................. 7

Package Contents .................................................................................. 8

System Requirements............................................................................. 9

Installing the SIM Card............................................................................ 9

Installing the ILX800-SMSG Plug-in Module ..........................................10

Installing an Antenna .............................................................................10
To get the most benefit from this User Manual, you should have the following skills:

Rockwell Automation
program, configure program logic, and transfer the program to the processor

Microsoft Windows: install and launch programs, execute menu commands, navigate
dialog boxes, and enter data

Hardware installation and wiring: safely connect the controller and plug-in module to a
power source
Caution: You must be able to complete the application without exposing personnel or equipment to
unsafe or inappropriate working conditions.
1.1 Overview
The ProSoft Technology SMS plug-in module adds bi-directional SMS text messaging
capability to the Allen-Bradley Micro820, Micro830, and Micro 850 controllers. Operating
over the GSM cellular network, the plug-in module provides a cost effective and secure
method for OEMs to add remote communication features using cellular phones as the user
interface to their machines and systems. Applications include remote alarming,
environmental/energy monitoring, data collection, machine condition, inventory status alerts
and production counts.
The SMS plug-in is activated by installing a standard GSM Voice/SMS SIM card (contact
your local GSM cellular provider for plan options and costs). After activation it will associate
to the local provider tower and enable bi-directional text messaging between the controller
and remote cell phones. Because the module uses SMS, there is no need for costly cellular
data plans.
ProSoft Technology, Inc.
August 24, 2016
Connected Components Workbench™ software: launch the
®
Contents
User Manual
Page 7 of 39
