Appendix E Decode Zone

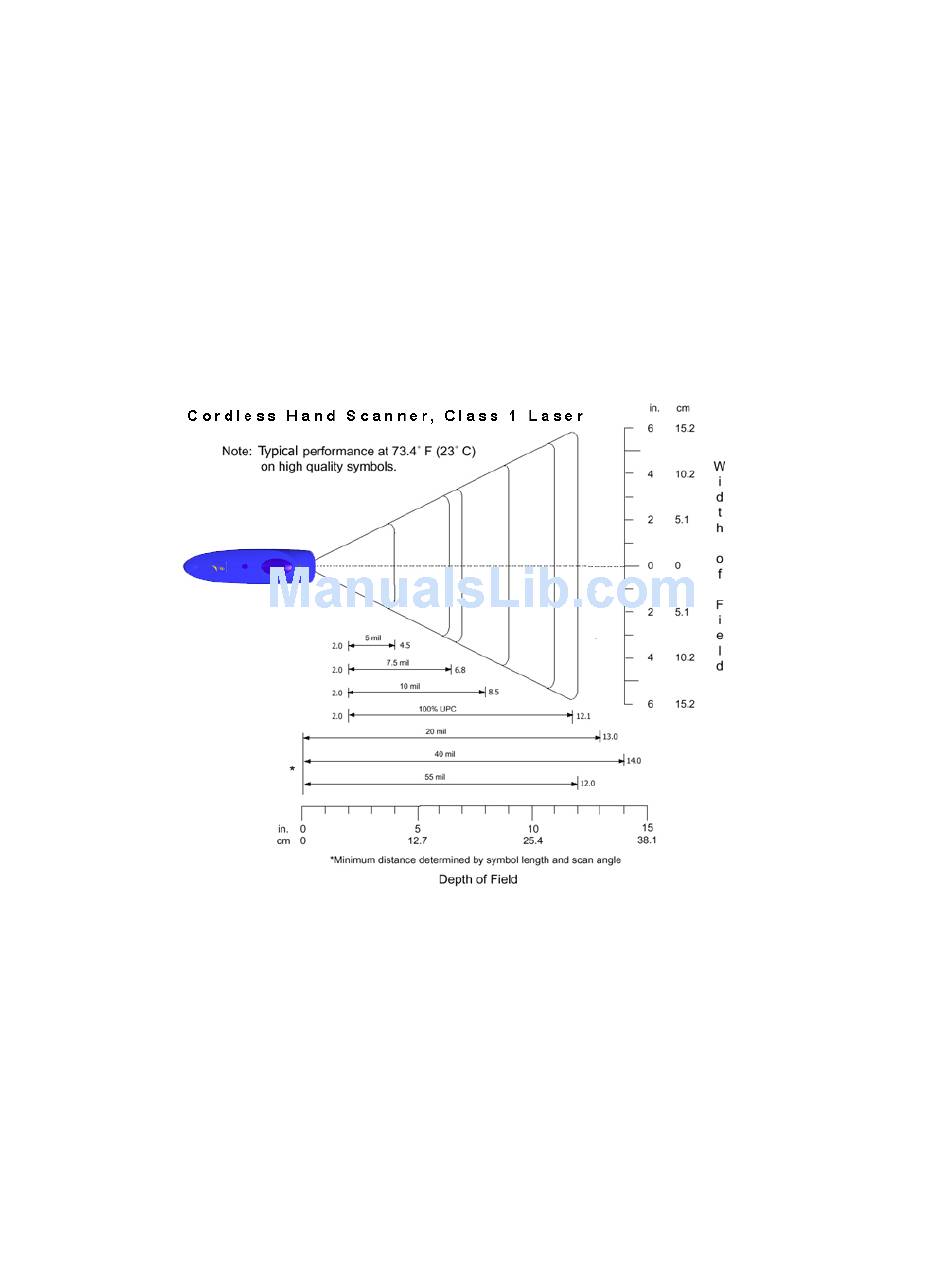

The decode zones for the Cordless Hand Scanner is shown below. The

minimum element width ("X Dimension" or bar code "size") is the width in

thousandths of an inch (mils) of the narrowest element (bar or space) in the

symbol. The figures shown are the typical scanning distances (depths of

field) for selected bar code sizes. The maximum usable length of a bar code

symbol (Width of Field) at any given range is also shown.
