C
Caution
Overcurrent could damage the control handle. Use a 1 Amp fuse in series for applications with low
current requirements to avoid damaging the control handle.

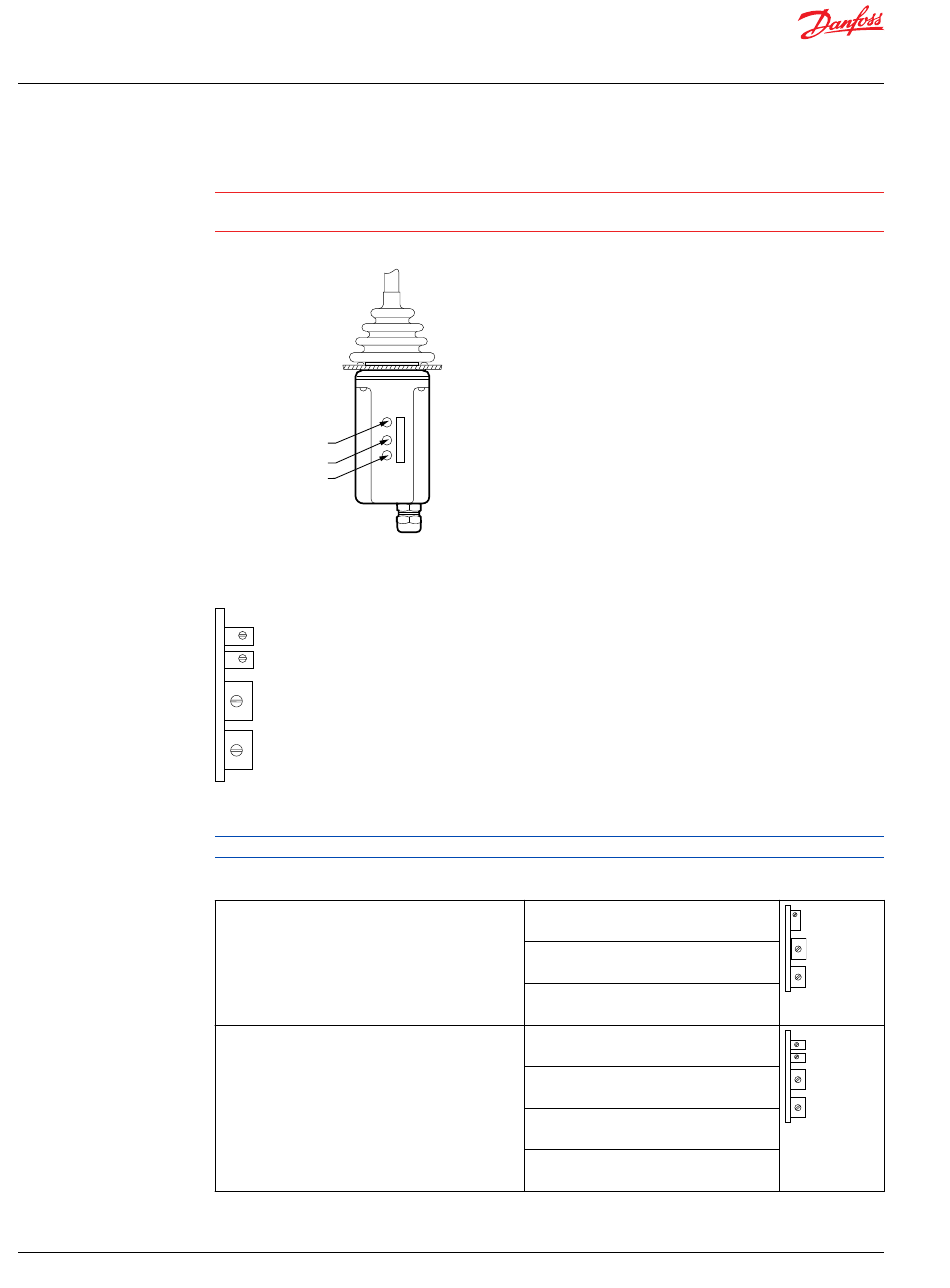

MCHXXX PWM option with trim potentiometer configurations
Step Current Adjust
Forward*
Reverse*
* Span adjust or full current output
Handle adjustments
Forward threshold*
Reverse threshold*
Forward full stroke*
Reverse full stroke*
* Clockwise increases output
2382
PWM MCHXXX option reached its end of life cycle in 2008 and is no longer available.
L control handles
Standard L
L with (2) threshold adjustments
T
F
R
1138B
Threshold adjustment
Counter clockwise increases output
Forward full stroke
Clockwise increases output
Reverse full stroke
Clockwise increases output
Forward threshold
Counter clockwise increases output
Reverse threshold
Clockwise increases output
Forward full stroke
Clockwise increases output
Reverse full stroke
Clockwise increases output
