MCHXXX
Installation
Wiring
©
Danfoss | February 2017
For optional connectors, contact your Danfoss representative.
A barrier terminal strip inside the handle's case provides connections to power, ground, and
potentiometers when no external cable is ordered. Run a cable from the strip through the strain relief
provided on the side or bottom of the case. Reference
handle movement causes a current flow from terminal B to A when the terminal strip is facing you.
W
Warning
An unforeseen failure may cause an output which could activate a valve or pump. Unexpected vehicle or
mechanism movement can endanger people or damage equipment. Handles equipped with a center-off
switch will mitigate this condition. When an active neutral is necessary, provide an operator-presence
interlock and/or braking system sufficient to stop and hold the system or vehicle.
In most applications, auxiliary switches must be customer-wired, as shown in
page 14. When the switch is used as a center-off, power is connected from the external 12 Volt supply
to the terminal labeled common. The switch terminals are 3/16 inch quick-connect.
(primarily)
on page 15 shows a pre-wired control handle with center-off switch and Delphi connector,
exhibiting the handle phasing and color coding of the wires.

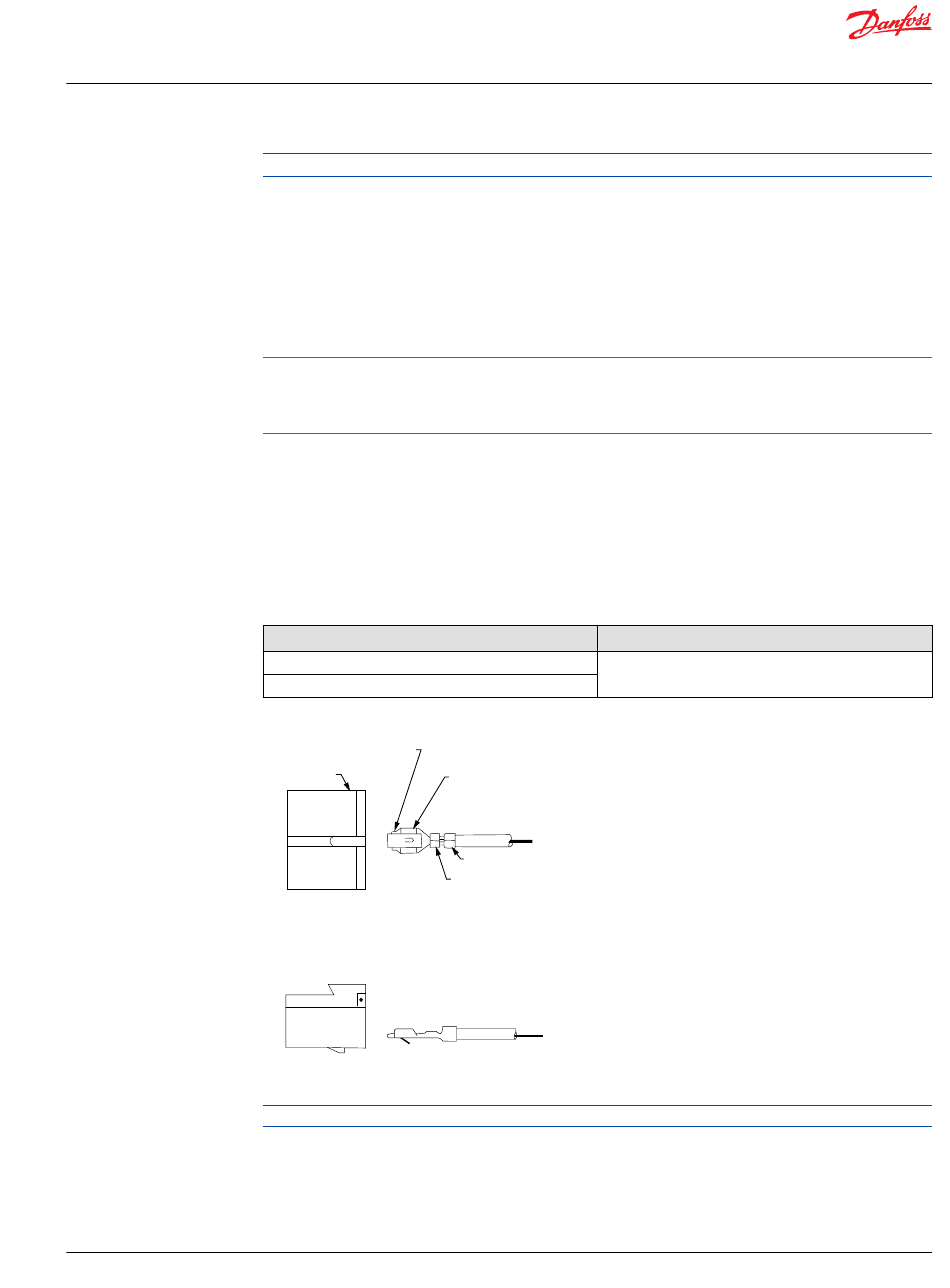

The following illustration shows how to assemble the mating Delphi connector (male shell, female
sockets) used in
PWM Option (primarily)
Delphi mating connector bag assembly (order seperately from handle)
Description
Six sockets
One plastic connector body
Unsealed Delphi mating connector assembly
Trim Terminal As Shown (2)
Shroud (Ref )
* Crimp before inserting terminal into body
For optional connectors, contact your Danfoss representative.
PWM MCHXXX option models are fitted with trim potentiometers for adjusting the output current. The
following illustration shows the location of the three trim potentiometers on the L handle. There are
either 3 or 4 trim potentiometers depending on the specific MCHXXX model. Reference
specification chart
on page 5, Electrical characteristics option table, Code M—Proportional, three
switches.
Potentiometer option
on page 15.
Danfoss part number
K03370
Terminals (6) (Ref )
Insulation Crimp*
Leadwire Crimp*
1137B
on page 14. A clockwise
Potentiometer option
PWM Option
Ordering
11022667 | BC00000033en-US0601 | 11
