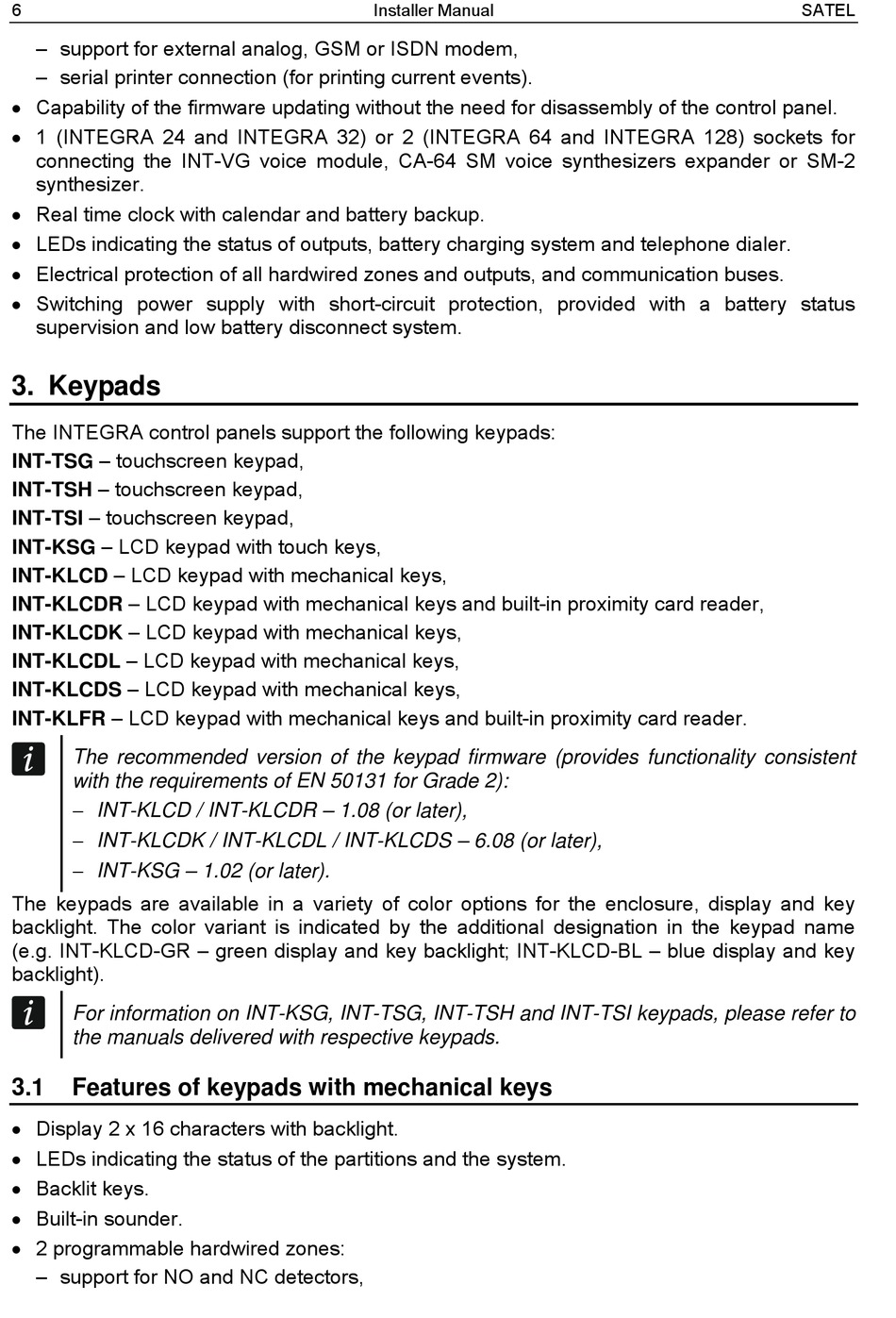

6
– support for external analog, GSM or ISDN modem,
– serial printer connection (for printing current events).
 Capability of the firmware updating without the need for disassembly of the control panel.
 1 (INTEGRA 24 and INTEGRA 32) or 2 (INTEGRA 64 and INTEGRA 128) sockets for
connecting the INT-VG voice module, CA-64 SM voice synthesizers expander or SM-2
synthesizer.
 Real time clock with calendar and battery backup.
 LEDs indicating the status of outputs, battery charging system and telephone dialer.
 Electrical protection of all hardwired zones and outputs, and communication buses.
 Switching power supply with short-circuit protection, provided with a battery status
supervision and low battery disconnect system.

3. Keypads

The INTEGRA control panels support the following keypads:
INT-TSG – touchscreen keypad,
INT-TSH – touchscreen keypad,
INT-TSI – touchscreen keypad,
INT-KSG – LCD keypad with touch keys,
INT-KLCD – LCD keypad with mechanical keys,
INT-KLCDR – LCD keypad with mechanical keys and built-in proximity card reader,
INT-KLCDK – LCD keypad with mechanical keys,
INT-KLCDL – LCD keypad with mechanical keys,
INT-KLCDS – LCD keypad with mechanical keys,
INT-KLFR – LCD keypad with mechanical keys and built-in proximity card reader.
The recommended version of the keypad firmware (provides functionality consistent
with the requirements of EN 50131 for Grade 2):
 INT-KLCD / INT-KLCDR – 1.08 (or later),
 INT-KLCDK / INT-KLCDL / INT-KLCDS – 6.08 (or later),
 INT-KSG – 1.02 (or later).
The keypads are available in a variety of color options for the enclosure, display and key
backlight. The color variant is indicated by the additional designation in the keypad name
(e.g. INT-KLCD-GR – green display and key backlight; INT-KLCD-BL – blue display and key
backlight).
For information on INT-KSG, INT-TSG, INT-TSH and INT-TSI keypads, please refer to
the manuals delivered with respective keypads.
3.1

Features of keypads with mechanical keys

 Display 2 x 16 characters with backlight.
 LEDs indicating the status of the partitions and the system.
 Backlit keys.
 Built-in sounder.
 2 programmable hardwired zones:
– support for NO and NC detectors,
