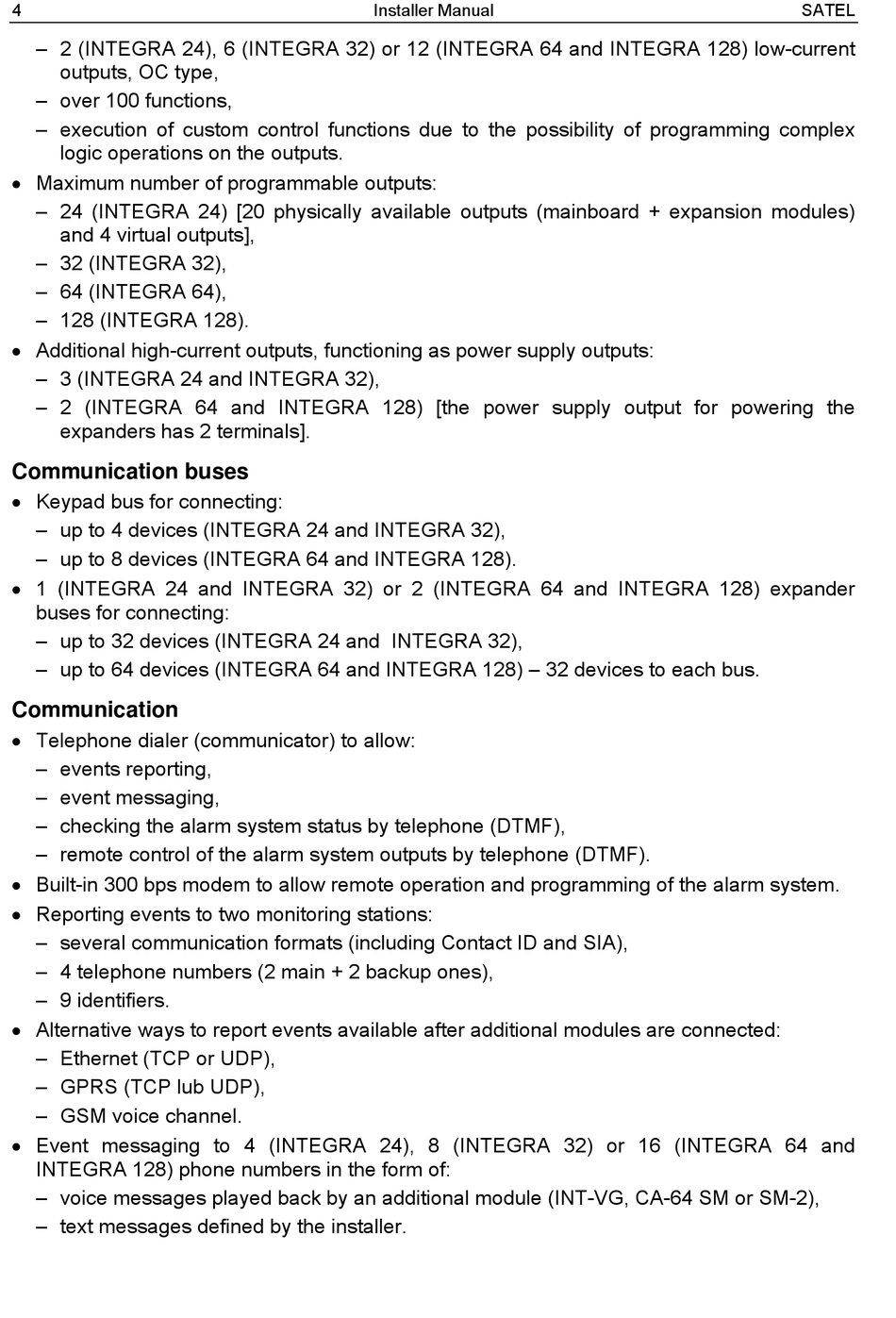

4
– 2 (INTEGRA 24), 6 (INTEGRA 32) or 12 (INTEGRA 64 and INTEGRA 128) low-current
outputs, OC type,
– over 100 functions,
– execution of custom control functions due to the possibility of programming complex
logic operations on the outputs.
 Maximum number of programmable outputs:
– 24 (INTEGRA 24) [20 physically available outputs (mainboard + expansion modules)
and 4 virtual outputs],
– 32 (INTEGRA 32),
– 64 (INTEGRA 64),
– 128 (INTEGRA 128).
 Additional high-current outputs, functioning as power supply outputs:
– 3 (INTEGRA 24 and INTEGRA 32),
– 2 (INTEGRA 64 and INTEGRA 128) [the power supply output for powering the
expanders has 2 terminals].
Communication buses
 Keypad bus for connecting:
– up to 4 devices (INTEGRA 24 and INTEGRA 32),
– up to 8 devices (INTEGRA 64 and INTEGRA 128).
 1 (INTEGRA 24 and INTEGRA 32) or 2 (INTEGRA 64 and INTEGRA 128) expander
buses for connecting:
– up to 32 devices (INTEGRA 24 and INTEGRA 32),
– up to 64 devices (INTEGRA 64 and INTEGRA 128) – 32 devices to each bus.
Communication
 Telephone dialer (communicator) to allow:
– events reporting,
– event messaging,
– checking the alarm system status by telephone (DTMF),
– remote control of the alarm system outputs by telephone (DTMF).
 Built-in 300 bps modem to allow remote operation and programming of the alarm system.
 Reporting events to two monitoring stations:
– several communication formats (including Contact ID and SIA),
– 4 telephone numbers (2 main + 2 backup ones),
– 9 identifiers.
 Alternative ways to report events available after additional modules are connected:
– Ethernet (TCP or UDP),
– GPRS (TCP lub UDP),
– GSM voice channel.
 Event messaging to 4 (INTEGRA 24), 8 (INTEGRA 32) or 16 (INTEGRA 64 and
INTEGRA 128) phone numbers in the form of:
– voice messages played back by an additional module (INT-VG, CA-64 SM or SM-2),
– text messages defined by the installer.
Installer Manual SATEL
