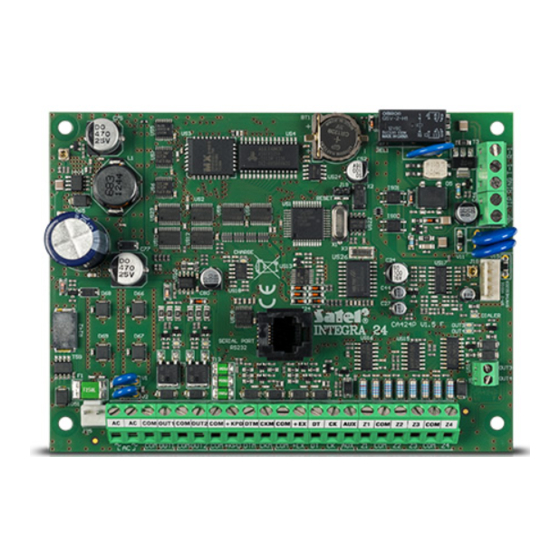

Alarm control panel
INTEGRA
EN
Firmware version 1.21
PROGRAMMING
integra_p_en 11/22
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.pl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INTEGRA 24 and is the answer not in the manual?

Questions and answers

Related Manuals for Satel INTEGRA 24

Summary of Contents for Satel INTEGRA 24

  • Page 1 Alarm control panel INTEGRA Firmware version 1.21 PROGRAMMING integra_p_en 11/22 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
  • Page 2 Before you start programming, please read carefully this manual in order to avoid mistakes that can lead to malfunction or even damage to the equipment. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
  • Page 3 Changes made to the firmware version 1.21 Keypads Support for INT-TSG2 and INT-TSH2 keypads with firmware version 2.01. Expansion Support for ACU-220 and ACU-280 controllers with firmware version modules 6.05 and 6.06. Zones The 82. A type zone can control a group of partitions. ISARM Outputs New output type: 120.

  • Page 4: Table Of Contents

    Programming SATEL CONTENTS General ..........................5 Configuring the control panel with keypad ................ 5 Starting the service mode ..................5 Starting the service mode “from pins” ................ 6 Hiding the service mode .................... 6 Exiting the service mode .................... 6 Service mode menu ....................
  • Page 5 SATEL INTEGRA Options ........................67 Output triggering ...................... 68 Clearing alarm in partitions ..................68 Output disabling ....................... 68 120. Thermostat output settings ................68 5.7.1 Rules for programming the thermostatic output settings ..........69 Output groups ......................69 Logical functions of outputs ..................70 5.10...
  • Page 6 Programming SATEL 12.1.5 Event codes ....................... 100 12.1.6 Test transmissions ..................... 100 12.1.7 SMS reporting only INTEGRA 128-WRL ..............101 12.2 Starting the reporting ..................... 101 12.2.1 Telephone reporting ....................101 12.2.2 Reporting via Ethernet network .................. 102 12.2.3 Reporting via cellular data network ................102 12.2.4...

  • Page 7: General

    INTEGRA 128-WRL control panel, and also for any control panel if the INT-GSM / INT-GSM LTE module or the SATEL GSM module is installed in the alarm system. Communication via Ethernet is possible if the ETHM-1 Plus / ETHM-1 module is connected to the control panel.

  • Page 8: Starting The Service Mode "From Pins

    In INTEGRA 24, INTEGRA 32, INTEGRA 64 and INTEGRA 128 control panels, the DIALER LED will start flashing. 4. Wait about 10 seconds (in INTEGRA 24, INTEGRA 32, INTEGRA 64 and INTEGRA 128 control panels, the DIALER LED will go off) and remove the jumper from the pins. The control panel will enter the service mode.

  • Page 9: Service Mode Menu

    SATEL INTEGRA Service mode menu Functions relating to INTEGRA 128-WRL control panel only are highlighted by white font on black background. Service end SM settings Service code INTEGRA ident. DLOADX ident. GUARDX ident. Ident. ACCO-NET DLOADX tel. No GUARDX tel. No...
  • Page 10 Programming SATEL [select partition by number] Hardware LCD keypads Settings [select device by name – see: p. 17] Names [select device by type and address] DTM short Tmp.alw.ld.DTM Expanders Settings ABAX - INTEGRA Tamper in part. Response period High jam sens.
  • Page 11 SATEL INTEGRA User Passwd Addr. D Addr. G Port D Port G GSM band Audio Options Tel. options. Mon. TELEPHONE Mon.GPRS Mon.SMS Mon. ETHM-1 Messaging SMS messaging Modem answer. Ext.mod.answ. Voice answer. Remote control Tone dialing Groud start No dialton.tst No answer test Dbl.
  • Page 12 Rings to answer Min.code length Prefix length Clock adjustm. Daylight saving Summer time Winter time Time server Time zone No t.serv.trbl No SATEL trbl. No LAN(AC) tr. PING test PING PING period PING tries Integrate key Zones Details [select zone by name]...
  • Page 13 SATEL INTEGRA Pulses count Type Entry delay / Alarm delay / Surveillan. time / Signal. delay / Bypass time / Expander number / Arming mode / Group / Exit delay / Outputs group Max.viol.time / Max.opening t. Max.n-viol.time No viol [min]...
  • Page 14 Programming SATEL [select zone by number] Outputs Details [select output by name] Function Cut-off time Polarization + Pulsating Latch Timers control Timers 9..16 / Timers 17..28 / Timers 33..64 Arm - no ctrl. Off-delay tmr. ON/OFF Quick AC trbl. Edit.in ART-200 Zones / Timers / Expanders / Outputs / Users / Doors / Voice mess.
  • Page 15 SATEL INTEGRA [select schedule by number] Monitoring Mon. TELEPHONE Mon. GPRS Mon.SMS Mon. ETHM-1 Dont rep. rsts. Stations Advanced Long hsk.s1t1 Long hsk.s1t2 Long hsk.s2t1 Long hsk.s2t2 Long hsk. wait. Need ack.id.s1 Id. 6-chars s1 Source name s1 Partit.name s1 SIA evr.bl.s1A / TELIM 0ton s1A...
  • Page 16 Programming SATEL Identifier sys. Event assign. Station 2 Tel. 1 number Tel. 2 number Tel. 1 format Tel. 2 format IP address Port Key (MS) Key (GPRS) Key (ETHM) SIA-IP SIA-IP acct Coded Key (SIA-IP) KeyHEX (SIA-IP) Timestamp SIA-IP test Ev.independent...
  • Page 17 SATEL INTEGRA Other Test at Test MS1 every Test MS2 every Independ.test Messaging Messaging Dbl.voice msg. Repetition cnt. Tel. names [select telephone by number] Tel. settings [select telephone by name] Tel. number Type Rounds count Fwd.unknwn.SMS Any code Code Assignment...
  • Page 18 Programming SATEL Synthesizer Pager message Telephones Outputs Synthesizer Pager message Telephones Arming failed Synthesizer Pager message Telephones Messages [select message] Pager types [select pager] Msg.abort in P. [select telephone by name] Msg.abort on T. [select telephone by name] Tel.answ./ctrl. Voice answer.
  • Page 19 SATEL INTEGRA Who can erase System status Partitions Zones Troubles Supply voltage Radio devices ST prog.version GSM IMEI/v/sig. IP/MAC/IMEI/ID Modules version Restarts Clear all Clear settings Clear codes Settings<-FLASH STARTER Devices connected to the keypad bus [service code] 9 Structure Hardware LCD keypads Settings...
  • Page 20 Programming SATEL Key sounds Trbl.in p.arm. Zone violation Auto-arm delay Unkn. card sig. Ev.3 unk. cards Al.3 unk. cards Dspl. mode chg. Show code ent. Show disarming Show arm Control (8#) RS communicat. (does not apply to INT-KSG) Sound volume...
  • Page 21 SATEL INTEGRA Alarms Fire alarm Medical alarm Panic alarm Silent panic 3 wrong codes Options Alarm signal. New trbl.sign. Key sounds Trbl.in p.arm. Zone violation Auto-arm delay Unkn. card sig. Ev.3 unk. cards Al.3 unk. cards Show code ent. Show disarming...
  • Page 22 Connect DLOADX Connect GUARDX Connect Intern. Connect GSM PING test INTEGRUM (only ETHM-1 Plus) Integrate Coded integr. SATEL server (only ETHM-1 Plus) PUSH messages (only ETHM-1 Plus) Change ID (only ETHM-1 Plus) Fail. – event Fail. – alarm Code+arrows (only ETHM-1 Plus) Tamper in part.
  • Page 23 SATEL INTEGRA Alarm (latch) Alarm (time) Entry delay Exit delay Auto-arm delay Hardw. signal Force arm Al. 3 unk .cards No autorst.3t. Tamper in part. INT-S / INT-SF / INT-SK / INT-SCR Lock feature Lock Lock function Relay ON time...
  • Page 24 Programming SATEL Confirmation Backlight Auto backlight No autorst.3t. Partition INT-SZ / INT-SZK Lock Lock function Relay ON time Relay type Unauth. event Unauth. alarm Max. door open Dependent door1 Dependent door2 Doors on fire Master users Users Alarms Fire alarm...
  • Page 25 SATEL INTEGRA INT-R / CA-64 SR / CA-64 DR Lock feature Lock Lock function Relay ON time Unauth. event Unauth. alarm Max. door open Dependent door1 Dependent door2 Doors on fire Master users Users Readers Reader A (does not apply to CA-64 DR and INT-R being used as CA-64 DR)
  • Page 26 Programming SATEL Settings [select zone to which wireless device is assigned] Filter [select zone to which wireless device is assigned] Remove device [select zone to which wireless device is assigned] Synchronization Test mode on Test mode off ACU-220 / ACU-280 No autorst.3t.

  • Page 27: Entering Data By Means Of The Keypad

    Microphone n [n = microphone number (1...4)] Speaker n [n = speaker number (1...4)] Only listen AVT buttons Sound signal. Silent alarm Satel commands Wait aft.event Wait aft.disc. Runtime No autorst.3t. Tamper in part. Entering data by means of the keypad...

  • Page 28: Selection From The Single-Choice List

    Programming SATEL Described below are general rules for entering data, however they may be different as regards some functions. 2.6.1 Selection from the single-choice list The upper line of display shows the function name, and the lower one – the currently selected item.

  • Page 29: Entering Names

    SATEL INTEGRA Characters available after next keystroke mode [ABC] mode [abc] Table 1. Characters available in the keypad when entering telephone numbers (to change the letter case, press ). Special character Function description switch-over to pulse dialing switch-over to tone dialing (DTMF)

  • Page 30: Configuring The Control Panel With Dloadx Program

    Programming SATEL Characters available after next keystroke  " & < > Table 3. Characters available when entering names. The lower case letters are available under the same keys (to change the letter case, press  key). 3. Configuring the control panel with DLOADX program Required program version: 1.21.000 (or newer).
  • Page 31 SATEL INTEGRA opens the “Zones” window. opens the “Outputs” window. opens the “Timers” window. opens the “Reporting” window. opens the “Messaging” window. opens the “Answering and remote control” window. opens the “Service note” window. opens the “Users” window. opens the window with information on errors made when configuring the alarm system opens the “Data comparison”...

  • Page 32: Parameters Related To Communication Between The Control Panel And Dloadx Program

    Programming SATEL − enables/disables the COM port, − opens the connection information window (remote programming). Color of the button icon has the following meanings: green – ready to send data, alternating green and yellow – data transmission in progress, red – no communication with the control panel, gray –...
  • Page 33 SATEL INTEGRA DLOADX program settings You can configure the modem communication settings in the “Configuration” window, “Modem” tab. Description of parameters Telephone numbers Panel’s tel. no – telephone number of the control panel. PC phone number – telephone number of the modem connected to computer with DLOADX program installed.

  • Page 34: Ethernet Communication Parameters

    Programming SATEL Initializing – lines containing the modem initialization commands: for communication with built-in control panel 300 bps modem: in the first line E0V1Q0 – a command required for proper operation of the modem. You should also add the operating mode selection: B0 or B1 (selection of transmission format: V.21 or Bell103), and the commands limiting transmission rate over telephone line to 300 bps.

  • Page 35: Cellular Data Network Communication Parameters

    DLOADX program using the ETHM-1 Plus / ETHM-1 / INT-GSM / INT-GSM LTE module. SATEL server The settings below apply to communication with the module via the SATEL server. Connection – select the set of parameters that will be used for establishing communication: ETHM-1 ID, ETHM-1 MAC and DLOADX MAC (ETHM-1) –...
  • Page 36 DLOADX program via the INT-GSM / INT-GSM LTE module. SATEL server The settings below apply to communication with the module via the SATEL server. Connection – select the set of parameters that will be used for establishing communication: INT-GSM ID, INT-GSM IMEI and DLOADX IMEI (INT-GSM) –...

  • Page 37: Local Programming

    SATEL INTEGRA Local programming 3.3.1 Starting local programming 1. Connect the control panel RS-232 port to the computer port (for the connection method please refer to the I NSTALLER MANUAL 2. Start the DLOADX program and click on the button. A window will open in which you should select the computer port to which the control panel is connected.
  • Page 38 (built-in 300 bps modem or external analog modem). The control panel may only be remotely programmed from a specified locality. 3. Connection initialized by means of SMS (INTEGRA 128-WRL control panel or SATEL GSM module operating as an external modem).
  • Page 39 DLOADX program, • configure the GSM communicator. DLOADX program settings: • configure the modem communication parameters. If communication is to take place through the SATEL GSM module connected to the control panel, configure settings of the module (see: GSM module manual).
  • Page 40 Programming SATEL 1. Click on the button in the DLOADX program. 2. A drop-down menu will be displayed. Select the “ISDN/GSM modem” in it. A window will open in which modem initialization information will be displayed. 3. Send an SMS message to the telephone number of INTEGRA 128-WRL control panel / GSM module connected to the control panel.

  • Page 41: Starting Remote Programming Via Ethernet Network

    SATEL INTEGRA Connection initialized by the control panel – built-in GSM communicator (CSD transmission) only INTEGRA 128-WRL Control panel settings: • program the telephone number of modem connected to computer, • configure the GSM communicator. DLOADX program settings: • configure the modem communication parameters.
  • Page 42 IP address. The INT-GSM / INT-GSM LTE module must be connected to the ETHM-1 Plus module. 4. Establishing connection via the SATEL server. The control panel can be programmed from any location. No public IP address is required for the control panel or the computer with DLOADX program..
  • Page 43 4. The DLOADX program will inform you about establishing connection by means of a suitable message. Establishing connection via the SATEL server For communication via the SATEL server, the ports of 1024-65535 range are used as outgoing ports. These ports must not be blocked.

  • Page 44: Starting Remote Programming Via The Cellular Data Network

    ATEL SERVER Required settings of the DLOAX program for communication via the SATEL server: • programmed: identification number assigned to the ETHM-1 Plus module by the SATEL server (ETHM-1 ID), MAC address of the ETHM-1 Plus module (ETHM-1 MAC) and data encryption key (DLOADX ) or selected set of parameters “Module: ETHM-1, Address n”...
  • Page 45 2. Initiating connection by SMS message. The computer with DLOADX program must have a public IP address. 3. Establishing connection via the SATEL server. The control panel can be programmed from any location. No public IP address is required for the computer with DLOADX program.
  • Page 46 Programming SATEL Required settings of the INT-GSM / INT-GSM LTE module for all methods of establishing connection: • C DLOADX option enabled, OMMUNICATION WITH • data encryption key (DLOADX ) programmed, • configured Internet connection settings. Initiating connection from the keypad Required settings of the INT-GSM / INT-GSM LTE module: •...
  • Page 47 SATEL INTEGRA Establishing connection via the SATEL server For communication via the SATEL server, the ports of 1024-65535 range are used as outgoing ports. These ports must not be blocked. Required settings of the INT-GSM / INT-GSM LTE module: • C option enabled.

  • Page 48: Control Panel Data File

    Programming SATEL – data encryption key (identical to that programmed in the GSM module). 4. Having entered the number of TCP port and data encryption key, press the “Start” button. Activation of the server for cellular data network connection will follow.

  • Page 49: Partitions

    SATEL INTEGRA Fig. 2. Presentation of the system structure in the DLOADX program. Partitions The partition is a separated area within the premises protected by the security alarm system. The subdivision into partitions enables arming/disarming the system only in part of the protected area, as well as limiting access to some portion of the premises to selected users.
  • Page 50 Programming SATEL With temporary blocking [With time bypass] – the partition can be armed/disarmed by the user, but on arming the partition is blocked for a time indicated by the user or determined by the installer (see D option). When blocked, the partition can only be...
  • Page 51 SATEL INTEGRA Access according to timer – the partition can be armed/disarmed by the user, but only within the time intervals set by the indicated timers. The number of timers depends on the control panel. Controlled by timer – the partition, which is armed in time periods determined by selected timers, but may also be controlled by the user code.

  • Page 52: Zones

    Programming SATEL Disarm by two codes [2 cds to d-arm] – if this option is enabled, disarming requires that codes be entered in turn by two users. Codes on two keypads [Codes on 2 kpd] – if this option is enabled and the partition is armed/disarmed using two codes, they must be entered from different keypads.

  • Page 53: Assigning Zones To A Partition

    SATEL INTEGRA • wireless – in the INTEGRA 128-WRL control panel or after connecting the ABAX 2 / ABAX wireless system controller. The number of available wireless zones depends on the number of wireless devices registered in the system and is determined during the procedure of adding the devices.

  • Page 54: Programming The Zones

    Programming SATEL Fig. 4. Numeration of EOL resistors. T – tamper. A – alarm. In case of the EOL configuration, the resistor value is a sum of the values programmed for the R1 and R2 resistors. 4.3.3 Programming the zones The zones can be programmed : •...
  • Page 55 SATEL INTEGRA 1 – fully armed and, additionally, the zones for which the B option is YPASSED IF NO EXIT enabled, will be bypassed, 2 - 3. I type zones will not be armed, 8. E will trigger silent alarm,...

  • Page 56: Zone Types

    Programming SATEL Zone sensitivity – depending on wiring type: NO, NC, EOL, 2EOL/NC, 2EOL/NO – the time during which the zone must be violated, so that it can be noted by the control panel. Roller – 2 parameters are to be programmed (in the DLOADX program, you should enter...
  • Page 57 SATEL INTEGRA 6. E – violation of the zone during exit delay countdown is equivalent to the partition exit. 7. D – if disarmed, the zone will signal violation acoustically in keypads and on IGHT the 9. DAY A , 12. S and 116.
  • Page 58 Programming SATEL 47. N – may be used to control the outputs. Additional options (S O ALARM ACTION TORE TO and S ) enable the zone to be used for EVENT LOG O REPORTING TORE EVENT ONLY IF ARMED other applications e.g. supervising the keybox.

  • Page 59: Zone Options

    SATEL INTEGRA 85. E – – similarly as the 0. E type with an extra feature: the NTRY CONDITIONAL NTRY zone becomes an instant one upon arming, if no partition exit is registered upon starting the arming procedure. 86. E –...
  • Page 60 Programming SATEL Bypassed if no exit – if this option is enabled, the zone will be automatically bypassed, when no partition exit is registered during the partition exit delay countdown. The zone will also be bypassed when the “full + bypasses” arming mode is on (registering a partition exit is irrelevant then).
  • Page 61 SATEL INTEGRA Restore after bell – with this option enabled, the zone restore code will be reported to the central monitoring station only after the alarm signaling is ended. Restore after disarm – with this option enabled, the zone restore code will be reported to the central monitoring station only after disarming the partition to which the zone belongs.

  • Page 62: Counters

    Programming SATEL Restore disables verif. – option for the 89. F zone type. If it is enabled, INISHING EXIT DELAY the zone restore will disable verification of alarms in the partition. All alarms will be unverified until the partition is armed again.

  • Page 63: Outputs

    SATEL INTEGRA by beeps in keypad (violation – 5 short beeps; tamper – 1 long beep; masking – 3 long beeps). Additionally, the function allows selection of a system output which will be used for signaling during the test (zone violation will activate the output for 0.4 second, tamper – for 1,6 seconds, masking –...

  • Page 64: Output Functions

    Programming SATEL State indication – instead of the output state, the state of selected zone can be displayed. This can be useful if the output is activated just for a short while to turn on / off a device and the device state is supervised by the control panel zone. In the service mode, to...
  • Page 65 SATEL INTEGRA 9. DAY – signals the following: ALARM – alarms from 13. PANIC- type zones, SILENT – medical alarms from the 14. M and 15. P type EDICAL UTTON ERSONAL EMERGENCY zones, – alarms from 7. D type zones, if the partition to which the zone belongs is...
  • Page 66 Programming SATEL If the 24. MONO S or 25. BI S type output is to be controlled from the WITCH WITCH keypad, it must be assigned to a group of outputs (see: “Output groups” p. 69). 26. T – the output controlled by timers.
  • Page 67 SATEL INTEGRA 48...63 V 0...15 – activated by the telephone messaging function. It enables any OICE MESSAGE external device to be used for playback of notification messages. When programming the telephone messaging, the number of message to be played back is to be programmed.
  • Page 68 Programming SATEL 99. A – signals read-in of the user card. CCESS CARD READ 100. C – – signals holding the user card. DOWN 101. C – – signals that the card has been read in indicated READ EXPANDER modules/keypads.

  • Page 69: Options

    SATEL INTEGRA 116. I – signals the same alarms and violations as the 1. B or 9. DAY NTERNAL SIREN URGLARY output type (logic product of the 1. B and 9. D outputs). LARM URGLARY LARM 117. T – informs about tamper of selected zones, keypads and expanders.

  • Page 70: Output Triggering

    Programming SATEL Output triggering Zones – indicate the zones. The output will be controlled by events related to these zones. LCD keypads – indicate the LCD keypads. The output will be controlled by events related to these LCD keypads. Partitions – indicate the partitions/partition keypads. The output will be controlled by events related to these partitions/partition keypads.

  • Page 71: Rules For Programming The Thermostatic Output Settings

    SATEL INTEGRA Temperature T1 – the first temperature threshold (economic temperature). It is active when all control timers are OFF or the forcing output is active. If the first temperature threshold is active, the output will be turned on when the temperature drops below temperature T1 (economic temperature).

  • Page 72: Logical Functions Of Outputs

    Programming SATEL The output groups can be defined: • using the keypad, in the service mode, by means of the O function, UTPUT GROUPS • using the DLOADX program, in the “Output groups” window (to open the window, press the “Output groups” button in the “Outputs” window).

  • Page 73: Output Testing

    – the INTEGRA 128-WRL control panel can send event codes via the cellular data network (GPRS), – any control panel can send event codes via the cellular data network (LTE/GPRS) by using the SATEL GSM module. The R – GPRS option does not apply to reporting via the cellular data EPORTING network by using the INT-GSM / INT-GSM LTE module.
  • Page 74 Programming SATEL Reporting – ETHM/INT-GSM [Mon.ETHM-1] – the option is available if the INT-GSM / INT-GSM LTE module is installed in the alarm system. If this option is enabled, the control panel can send event codes via Ethernet by using the ETHM-1 Plus / ETHM-1 module and/or via the cellular network (cellular data / SMS) by using the INT-GSM / INT-GSM LTE module.

  • Page 75: Printer Options

    SATEL INTEGRA Double call – with this option enabled, the control panel must be called twice for the modem communication to be established. The first time you must wait for the preprogrammed number of rings and hang up. Then you must call back within three minutes and the control panel will answer the call immediately.
  • Page 76 Programming SATEL Confirm commands with “1” [Confirm with 1] – if this option is enabled, the LCD keypad will require, in case of some functions, additional confirmation with the key 1. Clear messaging on alarm clearing [Autoabort msg.] – with this option enabled, clearing...
  • Page 77 SATEL INTEGRA – new access codes in the system must be composed of at least 5 characters (U SER CODE parameter), LENGTH – the following global options are enabled (cannot be disabled): ROUBLE MEMORY UNTIL REVIEW O NOT SHOW ALARM IF ARMED...

  • Page 78: Arming Options

    No shortcuts in menu – if this option is enabled, the user menu shortcuts are not supported. Do not report SATEL server connection trouble [No SATEL trbl.] – if this option is enabled, loss of communication with the SATEL server will not be reported as trouble.

  • Page 79: Times

    SATEL INTEGRA Times Global entry delay – parameter taken into account in the delayed zones, for which the programmed E is equal to 0. NTRY DELAY Global alarm time – time of signaling alarm in keypads, proximity card arm/disarm devices, proximity card readers and DALLAS chip readers.

  • Page 80: Other Parameters

    Programming SATEL Disable downloading [Block DWNL] – with this option enabled, starting communication with the DLOADX program “from pins” will be impossible. Hide service mode after [Hide SM after] – the time counted from the last operation performed in the service menu, after expiry of which the service mode menu will be hidden (see: p.

  • Page 81: Only Integra 128-Wrl

    SATEL INTEGRA 7. GSM phone only INTEGRA 128-WRL You can program the GSM communicator settings in the INTEGRA 128-WRL control panel: • using the keypad, in the service mode, by means of the functions available in the GSM H GSM), submenu (S...

  • Page 82: Programming The Keypads

    Programming SATEL DLOADX connection Address [Addr. D] – address of the computer with DLOADX program with which the control panel is to communicate via the cellular data network (GPRS). The computer with DLOADX program must have a public IP address. You can enter either the IP address or the domain name.
  • Page 83 SATEL INTEGRA Show fire alarms of partitions [Fire alarms] – the keypad can signal fire alarms from selected partitions. Fig. 8. Example of LCD keypad settings. CHIME signal of zones [Chime zones] – the keypad can audibly signal violation of selected...
  • Page 84 Programming SATEL Zone disabling CHIME [Chime bps. zone] – zone, which, if violated, will disable the CHIME feature for specified time. Bypass time [Chime bps. time] – time during which the CHIME signal will be disabled after violation of the zone which disables the signaling (time is counted from the zone restore). If the value 0 is programmed, the signaling will not be disabled.

  • Page 85: Volume/Filter

    SATEL INTEGRA Sign. new trouble [New trbl.sign.] – with this option enabled, the keypad can audibly signal the occurrence of a new trouble (if the T option is enabled). ROUBLE MEMORY UNTIL REVIEW New trouble signaling is cleared after the troubles have been reviewed by the user.

  • Page 86: State Inspections

    Programming SATEL Card reader filter [Sensitivity] – the level of signal filtering by the proximity card reader (when programming from the keypad: 1 – minimal filtering, 10 – maximal filtering). Higher filtering level is useful where noise occurs, causing the reader to malfunction. This parameter is available for the INT-KLCDR keypad with firmware version 1.06 (or newer)

  • Page 87: User Functions Definition

    SATEL INTEGRA Zone state [Zone characters] You can define the symbols which will be used to illustrate the state of zones on the display. Partition state [Part.characters] You can define the symbols which will be used to illustrate the state of partitions on the display.

  • Page 88: Abax System - Integra 128-Wrl Control Panel Mainboard

    Programming SATEL Event after 3 readings [Ev.3 unk.cards] – if this option is enabled, reading in an unknown card three times will save the event. Alarm after 3 readings [Al.3 unk.cards] – if this option is enabled, reading in an unknown card three times will trigger an alarm.

  • Page 89: Parameters And Options Of Wireless Devices

    SATEL INTEGRA can work within each other's operating range (12 seconds – up to 150, 24 seconds – up to 300, 36 seconds – up to 450). Beyond the response period, information about tampers of devices and violations of detectors operating in active mode are sent to the control panel.
  • Page 90 Programming SATEL Configuration – for some devices you can configure additional parameters and options. If the ABAX 2 device is identified as the ABAX device, its name is shown in parentheses next to the ABAX device name. Shown in square brackets is information about the number of zone for which additional parameters are to be programmed if the device takes up more than one zone.

  • Page 91: Configuring The Wireless Devices - Dloadx Program

    SATEL INTEGRA ASD-150 (ASD-250) – wireless smoke detector. You can configure:  option to indicate alarm from other ASD-250 / ASD-150 detectors,  option to send alarm to other ASD-250 / ASD-150 detectors. ATD-100 (ATD-200) – wireless temperature detector. You can configure the temperature...
  • Page 92 Programming SATEL AGD-100 (AGD-200) Enter a digit from the 1 to 3 range to set the sensitivity (1 – low , 2 – medium, 3 - high). AMD-100 (AMD-200) / AMD-101 (AMD-201) Enter the digit 0 (bottom reed switch) or 1 (side reed switch) to determine which of the two reed switches is to be active.
  • Page 93 SATEL INTEGRA ASD-150 (ASD-250) Enter 2 digits: 1st digit – option to signal alarm from other ASD-150 / ASD-250 detectors: 0 (disabled) or 1 (enabled). 2nd digit – option to send out alarm to other ASD-150 / ASD-250 detectors: 0 (disabled) or 1 (enabled).

  • Page 94: Configuring The Wireless Devices - Lcd Keypad

    Programming SATEL ASW-210 For each position occupied by the controller, enter 0 (relay can only be controlled via the control panel), 1 (the input enables relay to be controlled with monostable switch) or 2 (the input enables relay to be controlled with bistable switch).

  • Page 95: Wireless Expanders Of Hardwired Zones And Outputs

    SATEL INTEGRA signaling stops after the maximum duration of acoustic signaling elapses, even if the control output is still active. The optical signaling is active as long as the output is active. ASP-205 / ASP-215 – both outputs control acoustic and optical signaling. Thus two different, independently triggered ways of signaling can be configured.

  • Page 96: Ac Wireless Controllers

    Programming SATEL • battery status – information on low battery is sent when the battery voltage drops below 11 V for more than 12 minutes (3 battery tests). The expander will kept sending this information to the control panel until the battery voltage rises and remains above 11 V for longer than 12 minutes (3 battery tests).

  • Page 97: User Schedules

    The control panel can send event codes to the monitoring station using the following transmission paths: • analog telephone line (INTEGRA 128, INTEGRA 64, INTEGRA 32 or INTEGRA 24 control panel), • GSM voice channel (INTEGRA 128-WRL control panel) – the use of this transmission path is not recommended because of distortions that may occur when sending the event codes, •...

  • Page 98: Reporting Parameters And Options

    (GPRS/LTE). 3. GSM communicator to send SMS [INTEGRA 128-WRL control panel], 4. analog telephone line [INTEGRA 128, INTEGRA 64, INTEGRA 32 or INTEGRA 24 control panel] / GSM voice channel [INTEGRA 128-WRL control panel] (basic and backup telephone number).
  • Page 99 SATEL INTEGRA control panel will make an attempt to send the event code to station 1 and, if unsuccessful, to station 2. The dual path reporting requires that the following settings be additionally programmed: − just one transmission path for Station 1: ETHM (Ethernet) [settings of the ETHM-1 Plus module with the INT-GSM / INT-GSM LTE module connected to it], −...

  • Page 100: Monitoring Station 1 / Monitoring Station 2

    Programming SATEL No module restart reports [No rest. mon.] – when this option is enabled and the Contact ID or SIA format is used for reporting, no event codes referring to module restarts will be sent to the monitoring station.
  • Page 101 IP format [SIA-IP] – if the event codes are to be sent via Ethernet or cellular data network, specify whether SATEL format or SIA-IP format (SIA DC-09 standard) will be used. Protocol [UDP] – if the event codes are to be sent via Ethernet or cellular data network, specify whether TCP or UDP protocol will be used.

  • Page 102: Sia-Ip

    Programming SATEL Events assignment If the events are to be sent to both stations (S 2 is selected), you can define TATION which event types will be reported to the given station. It is not possible to assign events for the C...

  • Page 103: Sms Reporting Only Integra 128-Wrl

    SATEL INTEGRA • in specified time intervals. For each monitoring station, the number of days, hours and minutes between transmission can be individually programmed. The test transmission code will be sent: – after a predefined period of time has elapsed since the last transmission, irrespective of...

  • Page 104: Reporting Via Ethernet Network

    – reporting format in which the codes will be sent, – server address, – port number, – IP format in which the codes will be sent (SATEL or SIA-IP), – encryption key (S ) and control panel identifier for the purposes of reporting...
  • Page 105 – reporting format in which the codes will be sent, – server address, – port number, – IP format in which the codes will be sent (SATEL or SIA-IP), – encryption key (S ) and control panel identifier for the purposes of reporting...

  • Page 106: Sms Reporting

    Programming SATEL – IP format in which the codes will be sent (SATEL or SIA-IP), – encryption key (S ) and control panel identifier for the purposes of reporting TATION KEY via the cellular data network (GPRS ) if the SATEL format is selected, –...

  • Page 107: Messaging

    • voice messages. You must connect to the control panel: – the INT-VG module or another voice synthesizer, – in case of the INTEGRA 128, INTEGRA 64, INTEGRA 32 and INTEGRA 24 control panel: telephone line or SATEL GSM module.

  • Page 108: Telephone Numbers

    Programming SATEL Fig. 13. Example of messaging settings in the DLOADX program. Max. redial number for one round [Repetition cnt.] – the number of attempts to get through after which the control panel will give up messaging for the current round, if it fails to establish connection (the number is busy).

  • Page 109: Clearing

    For messaging using the PAGER type messages, you must define the parameters of pager identification. Default parameters of the pager type 1 are adjusted to the SATEL GSM module requirements for conversion of the PAGER type message into SMS message.

  • Page 110: Answering Phone Calls And Remote Control

    Programming SATEL 14. Answering phone calls and remote control The call answering function allows the control panel users to receive information on the partition status (arm mode, alarms). Owing to the telephone control function, the users can control the R outputs by means of a telephone.

  • Page 111: Activation Of The Remote Control

    SATEL INTEGRA 3. Define whether the function is to be available at all times, or only when selected partitions are armed (function A NSWER IF PARTITIONS ARE ARMED 4. Program the telephone codes for the users who are to use the function (see: U ANUAL 14.3 Activation of the remote control...
  • Page 112 Programming SATEL SMS control – if this option is enabled, control by means of SMS messages is possible. Tel. code required [Tel.cod.in SMS ] – if this option is enabled, the SMS message to be sent to the control panel will have to contain, beside the control command, also the telephone code.

  • Page 113: Control Panel Firmware Update

    16. Control panel firmware update Available on the www.satel.eu website is the current version of control panel firmware and the F X program enabling to write it to the control panel. In order to update the firmware: LASH 1.

  • Page 114: Manual Update History

    Programming SATEL If the firmware update is suddenly terminated (e.g. due to loss of power) and, as a result, the control panel firmware is damaged, the STARTER program will start automatically and will remain active until the correct firmware is installed.
  • Page 115 • Section describing how to start remote programming via Ethernet has been modified (p. 39). • Information on communication via the SATEL server has been added (p. 40 and p. 41). • Section describing how to start remote programming via GPRS has been modified (p.
  • Page 116 Programming SATEL • Information on ASD-150 detector has been added (p. 89 and 91). • Information on reporting trouble by ACX-201 expander has been added (p. 94). • List of functions available in the service mode menu has been supplemented 2018-06 1.18...
  • Page 117 SATEL INTEGRA (p. 28). • Description of AC option has been added (p. 67). LOSS FAST • Section describing the keypad settings has been modified (p. 80). • Description of E option has been added (p. 100). VENT INDEPENDENT POOLING •...
