If the device is connected to the second bus, its address in the system can be
determined by adding the number 32 to the address set in it.
The address affects numeration of zones and outputs in the system (see section
N
UMERATION OF ZONES AND OUTPUTS IN THE SYSTEM
5.7

Connecting the detectors

How the detector is connected to the zone must be suitable for the configuration chosen for
that zone. The zones on the control panel mainboard support the following configurations:
NC – the wiring type dedicated to connecting devices with the NC (normally closed) alarm
output. Opening the circuit will trigger an alarm.
NO – the wiring type dedicated to connecting devices with the NO (normally open) alarm
output. Closing the circuit will trigger an alarm.
EOL – this wiring type may be used to connect devices having the NC or NO alarm output.
Closing or opening the circuit will trigger an alarm.
2EOL/NC – the wiring type recommended to connect detectors having the NC alarm output
and a tamper output. The zone can recognize 3 states: normal, alarm and tamper.
2EOL/NO – the wiring type similar as 2EOL/NC, but for detectors with the NO alarm output.
Roller – the wiring type dedicated to connecting roller shutter detectors.
Vibration – the wiring type dedicated to connecting vibration detectors. The zone will also
accept connection of a detector with the NC alarm output (e.g. a vibration detector and
a magnetic contact can be connected in series).
Follow output – in case of this configuration the detector should not be connected. The zone
status depends only on that of the selected output (the output is not to be physically
connected to the zone).

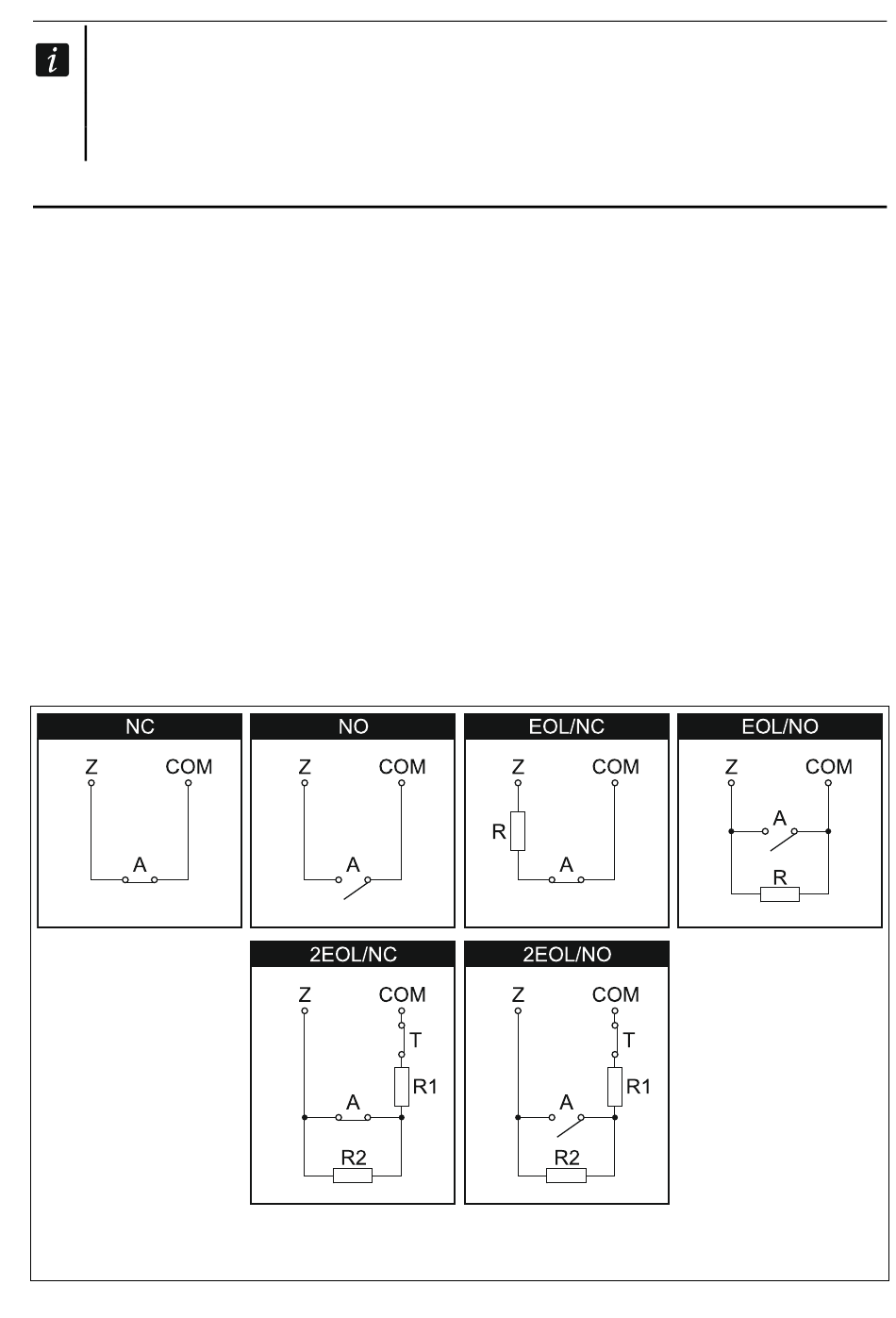

Fig. 10. The ways to connect detectors to zones. The detector outputs are designated with
INTEGRA
letters: A - alarm, T – tamper. R=R1+R2.
p. 28).
