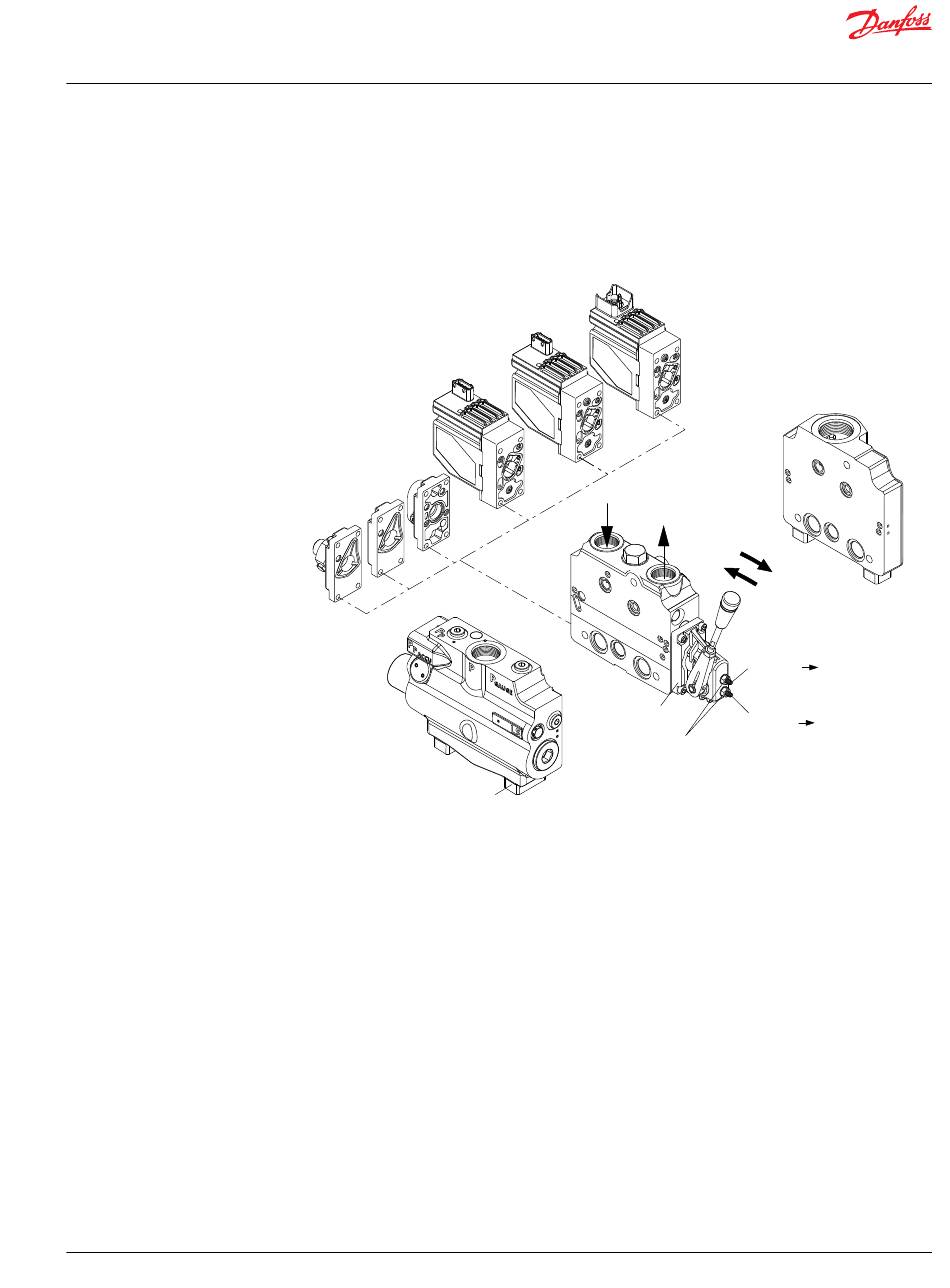

PVG 100 standard oil flow direction/max flow setting

Adjustment screws are used to change the amount of oil flowing from ports P to B or P to A.
PVM to the right of PVP
PVEO
PVH
PVMD
PVMR/PVMF

PVG 100 valve system

PVG 100 is a hydraulic load sensing valve, designed to fulfill efficiency requirements.
From a simple load sensing directional valve to an advanced electrohydraulic controlled load
independent proportional valve the PVG 100 modular system makes it possible to build up a valve group
to fulfill customer requirements. The compact external dimensions of the valve remain unchanged
whatever combination is specified.

General features PVG 100, load independent flow control

•
Flow sharing for maximum controllability and safety
•
Load-independent flow control for precise operation and improved productivity
‒ Oil flow to an individual function is independent of the load pressure of this function regardless of
sufficient or insufficient pump flow.
Oil flow to one function is independent of the load pressure of other functions regardless of
‒
sufficient or insufficient pump flow.
•
Load-sensing technology for higher efficiency, safety, reduced energy consumption, and longer
system lifetime
•
Configurable as an advanced electrical, hydraulic or mechanically operated proportional load-sensing
valve
•
Open spool-ends for system integrating mechanical cable or linkage actuation
PVEH/PVES
PVEA
B
PVB
PVM
[61-79 lbf•in]
PVP
PVT
A
P-A
P-B
Q max: P B
Q max: P A
7-9 N•m
