ULTRAFLO Cage Feeding Systems for Brood Grow & Layer Installations
®

Three Power Unit System

1
3
5

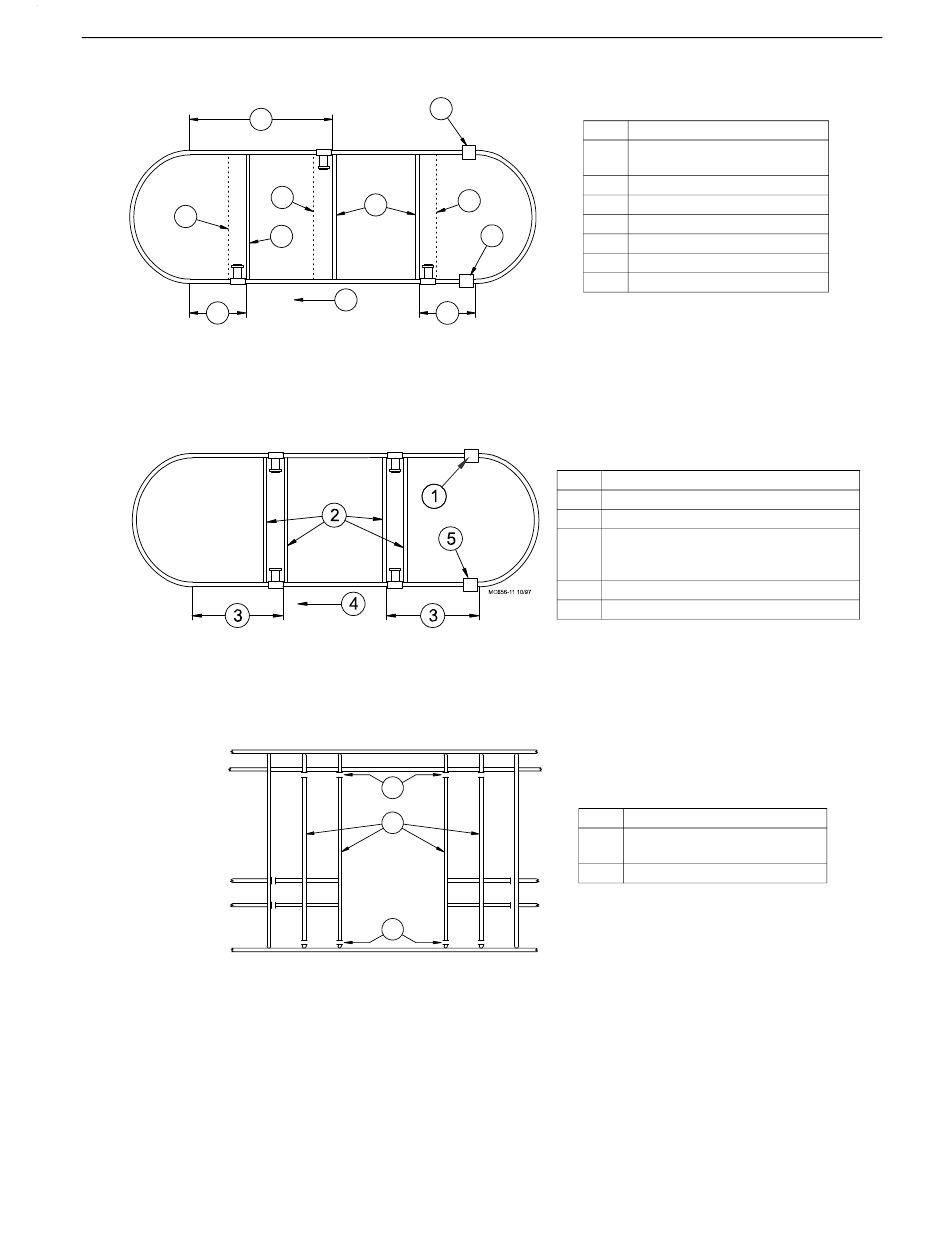

Figure 16.Power Unit Location Diagram for Three Power Unit Systems (top view)

Four Power Unit System

Figure 17.Power Unit Location Diagram for Four Power Unit Systems (top view)
If cages are to be removed to allow space for Power Units, cut the cage front wires shown in Figure
18. to allow room for the Power Unit to be installed.
MC656P
2
3
4
4
6
5
2
1
2
Figure 18.Modify cage for Power Unit Installation (front view).
Installation for Layer Cage Systems Only
Key Description
1 Locate the Power Unit in the
center of the cage row.
2 Intake Cup
3
3 Motor Support Stand
4 Cage Floor Support
7
5 64' (19.5 m)
6 Auger Direction
7 Clean Out (typical location)
MC656-22 10\97
Key Description
1 Intake Cup
2 Cage Floor Stand or Motor Support Stand
3 Systems up to 500' (152 m): 80' (24 m)
Systems over 500' (152 m): 120' (37 m)
Systems over 600' (198 m): 152' (46 m)
4 Auger Direction
5 Clean-Out (typical location)
Key Description
1 Cut out these cage front wires to
allow for motor installation.
2 Cut here.
MC656-14 8/95
