Chore-Time ULTRAFLO Series Installation And Operators Instruction Manual page 12

Installation for Brood-Grow Cage Systems Only
Bottom Tier of All Brood-Grow Systems (with Step Rail Brackets)
Key Description
1 Wireform Hanger
2 Hold Down Hanger
3 Feed Trough Support

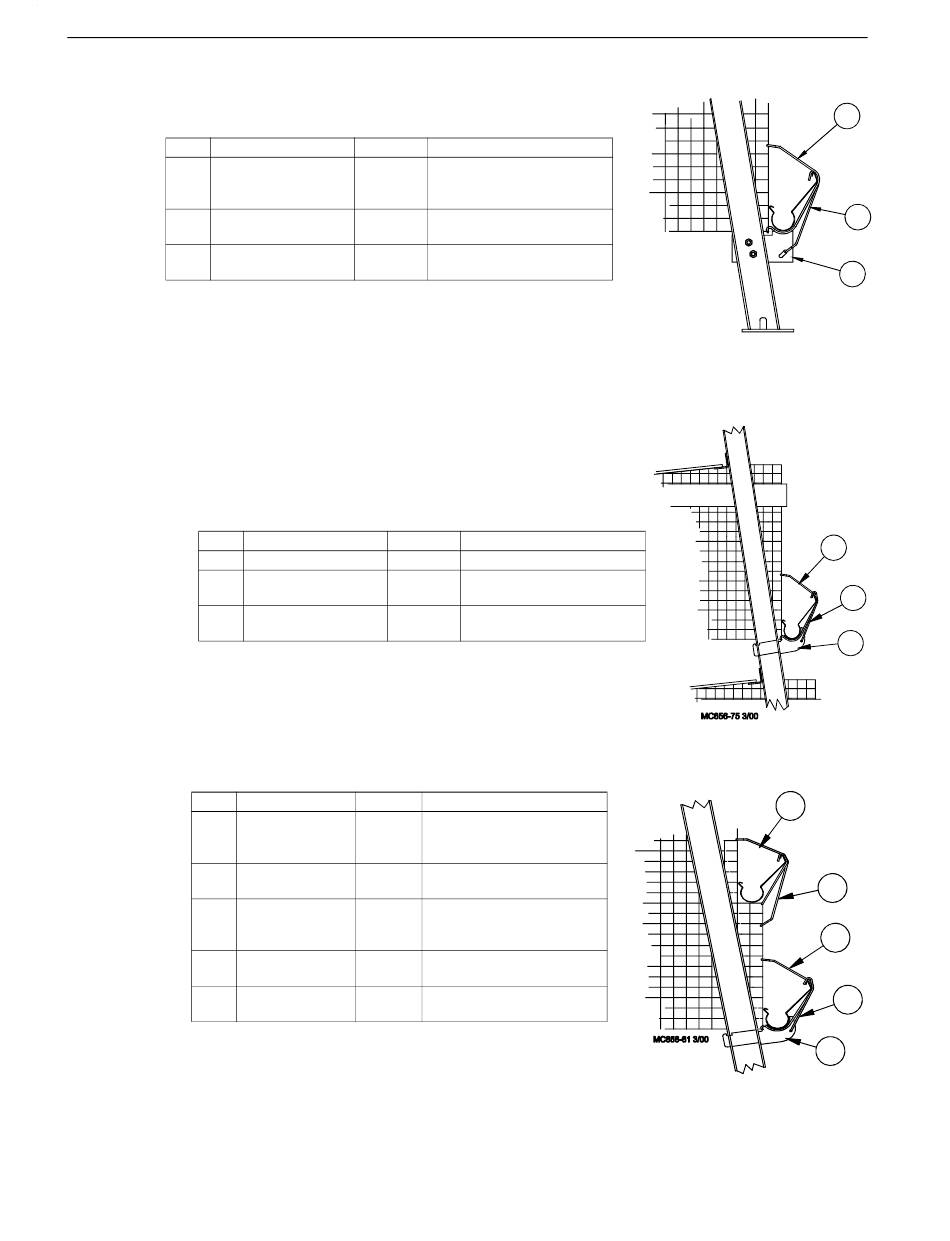

Figure 9.Hanger Installation Diagram for Brood-Grow with Step Rail Brackets
D.B.S. & Curtain-Backed Brood-Grow Systems
(no Step Rail Brackets)
Key
1
2
3
Figure 10.Hanger Installation Diagram for D.B.S. & Curtain-Backed Brood-Grow
2 + 2 Brood-Grow & Stacked Brood-Grow (no Step Rail Brackets)
Key Description
1 Upper Levels
Hanger
2 Hold Down
Hanger
3 Wireform Hanger
4 Feed Trough
Support
5 Trough Wire
Figure 11.Hanger Installation Diagram for 2 + 2 Brood-Grow (side view)
12
ULTRAFLO
Part No.
27107
37111
15568
(side view)
Description part No.
Wireform 27107
Feed Trough Support 16204
Trough Wire 39486
(side view)
Part No. Location
14729 Install at every partition on
all tiers without Feed Trough
Supports.
37111 Install at every other Cage
Partition.
27107 Install at every partition on
tiers with Feed Trough
Supports.
16204 See "Trough Installation"
on page 10.
39486 See "Trough Installation"
on page 10..
Cage Feeding Systems for Brood Grow & Layer Installations
®
Location
Install at every partition on
tiers with Feed Trough
Supports.
Install at every partition with
Feed Trough Support.
See Trough Support
Installation on page 10.
Location
Install at every partition.
See Trough Support
Installation on page 10.
See Trough Support
Installation on page 10.
MC656-68 3/00
1
1
2
3
4
MC656P
1
2
3
3
2
5
