Installation for Layer Cage Systems Only
Installation for Layer Cage Systems Only
Power Unit Location
Determine where the Power Units should be located. Refer Figures 14 through 17 to determine Power
Unit placement.
If the Motor Support Stand is not present as shown, it must be installed according to the instructions
shipped. Refer to instruction MD785 for additional information.
One Power Unit Systems: Place the Power Unit in the center of the cage row (See Figure 14.).
Two Power Unit Systems: The Power Units should be placed in the center of the cage row on opposite
sides of the cage row (See Figure 15.).
Three Power Unit Systems: Three Power Unit Systems require two Power Units on one side and one
on the other side of the Cage Row. The two on the same side should be approximately 64' (19.5 m) from
the ends of the Cage Row. The single Power Unit should be spaced in the center of the Cage Row, on
the opposite side (See Figure 16.).
Four Power Unit Systems: Place the Power Units 80' or 120' (24 or 37 m) from each end of the Cage
Row, depending on the length of the Cage Row (See Figure 17.).
For cage rows with 12" cages, space equal to two vertical rows of cages should be left out at each motor
location for motor installation. If cages were installed, it will be necessary to remove two sets of cages
and install a bolt together Motor Stand 24" (61 cm) from the existing mainframe.
For cages with 16" & 24" cages, space equal to one vertical row of cages should be left out at each motor
location for motor installation. If cages were installed, it will be necessary to remove one set of cages
and install a bolt together Motor Stand 16" (41 cm) or 24" (61 cm) from the existing mainframe
Single Power Unit System.
Two Power Unit System

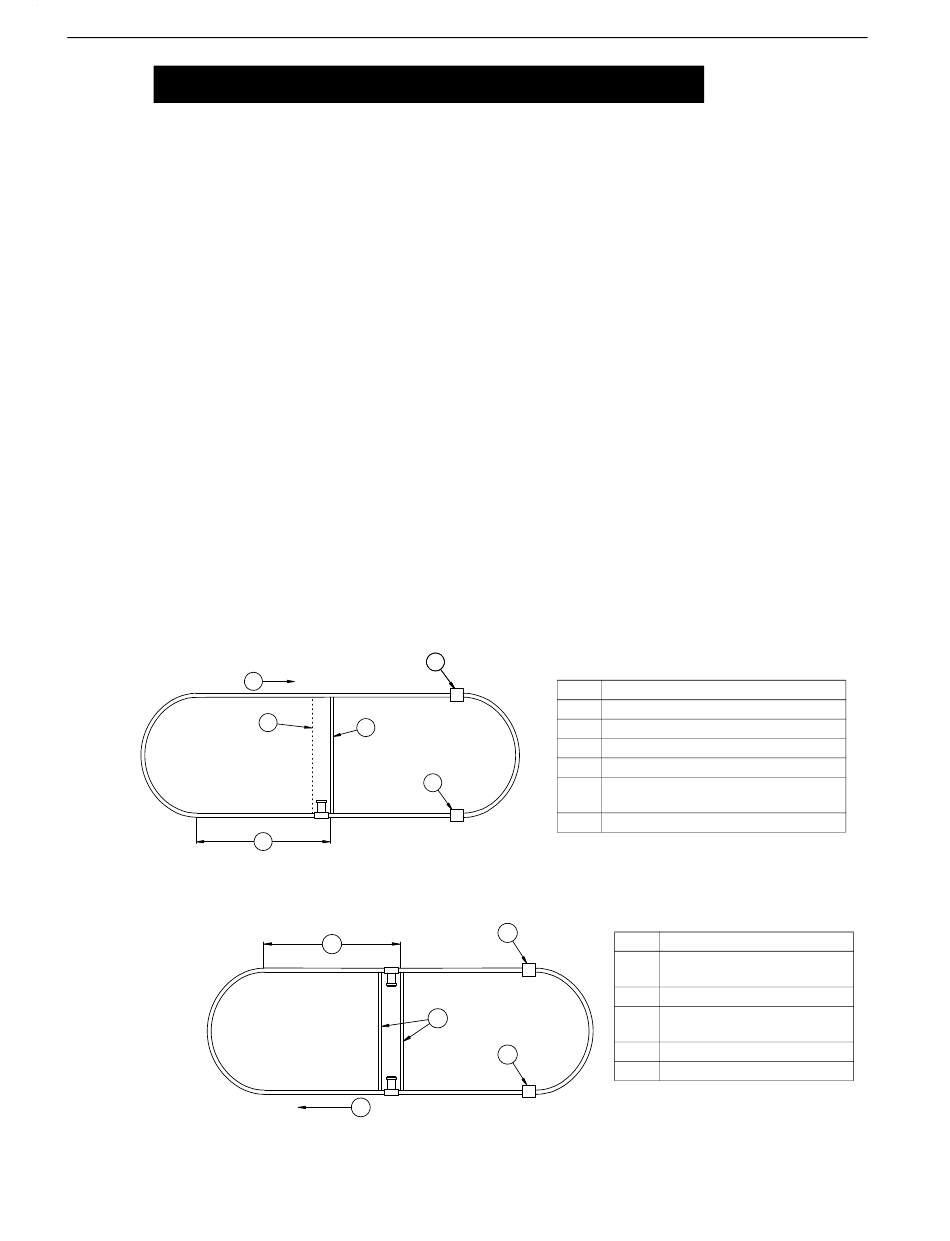

Figure 15.Power Unit Location Diagram for two Power Unit Systems (top view)
14
ULTRAFLO
1
4
3
6
MC656-8 10/97
5
Figure 14.Power Unit Location Diagram for Single Power Unit Systems (top view)
1
4
Cage Feeding Systems for Brood Grow & Layer Installations
®
2
Key
Description
1
Auger Direction
2
Intake Cup
3
Cage Floor Support
4
Motor Support Stand
5
Locate the Power Unit in the center of
the cage row.
6
Clean-Out (typical location)
2
3
5
MC656-9 10/97
Key
Description
1
Locate the Power Unit in the
center of the cage row.
2
Intake Cup
3
Cage Floor Support or Motor
Support Stand
4
Auger Direction
5
Clean Out (typical location)
