Menu 4 – Photoelectric Beam
The photoelectric beam is placed across the gate/door and when it is broken it can operate the gate/door
to do certain functions.
Menu No. Photoelectric
Beam Feature
4.1 Photoelectric Beam
4.2 Exit
The factory default for the PE beam input is "normally closed" but this can be changed to normally open.
To change it go back to Menu 3.
Elsema Pty Ltd recommends a photoelectric beam should be connected to the control card when any of
the auto close options are used.

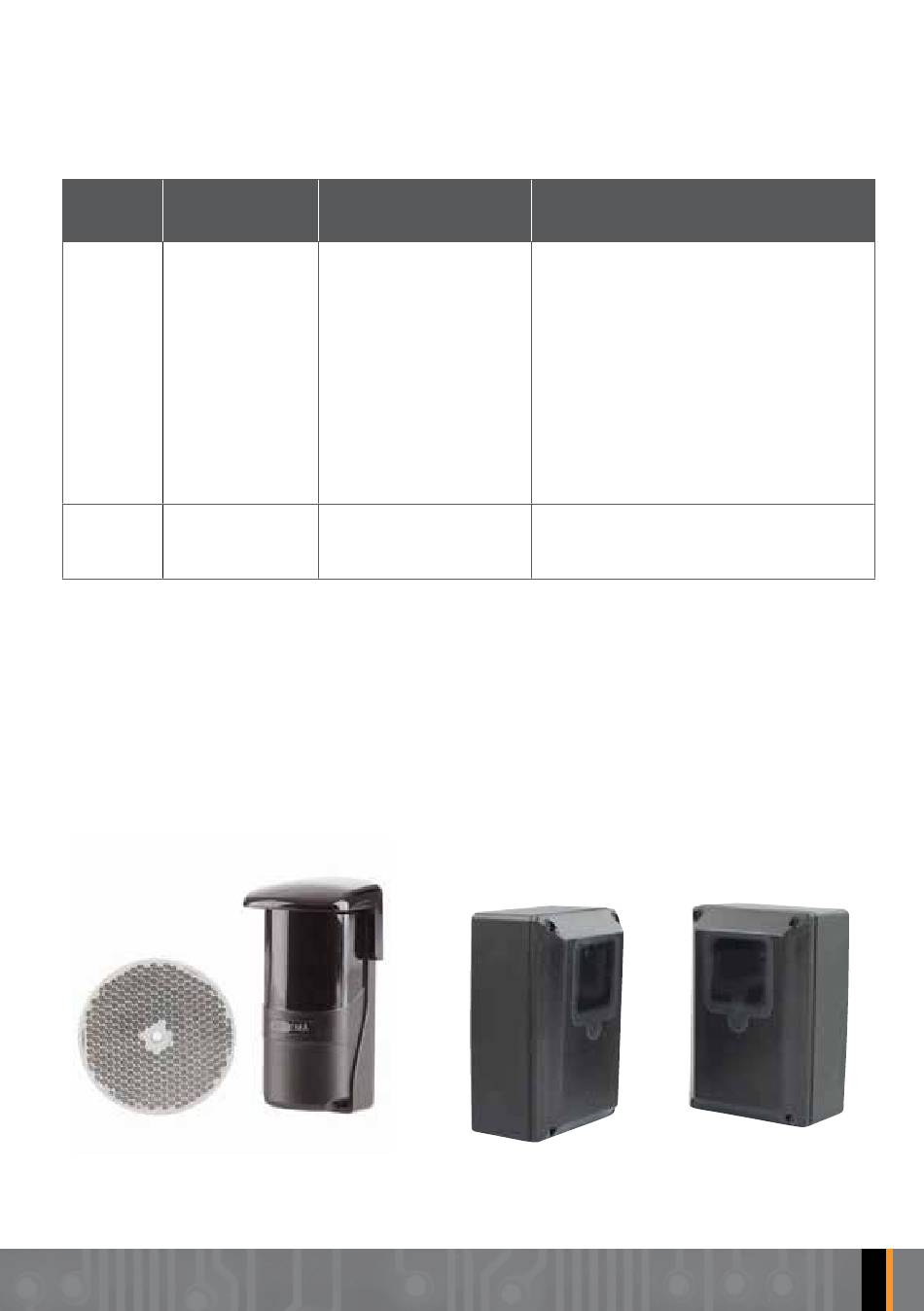

Elsema sells several different types of photoelectric beams. We stock Retro-Reflective and Through
Beam photoelectric beams.
PE1500
(Polarised Retro-Reflective Type)
www.elsema.com
Factory
Default
PE Beam stops and opens
gate/door on close cycle
Adjustable
PE Beam stops and opens
gate/door on close cycle
------------------------------------
PE Beam stops gate/door
on close cycle
------------------------------------
PE Beam stops gate/door
on open & close cycle
------------------------------------
PE Beam stops and closes
gate/door on open cycle
PE24
(Through-Beam type)
