- Page 1 5th Edition Eclipse Variable Speed Drive Controller ® with Eclipse Operating System ® (EOS) VSD kits suitable for motors ranging from 0.4 to 2.2 kW Controller with Eclipse Operating System for Variable Speed Drive Operated Gates. Setup and Technical Information www.elsema.com...
- Page 2 Failing to follow instructions and the safety warnings may result in serious injury and/or damage to property. Elsema Pty Ltd shall not be liable for any injury, damage, cost, expense or any claim whatsoever to any person or property which may result from improper use or installation of this product.
-
Page 3: Table Of Contents
Menu 12 – i-Learning ..................... 26 Menu 13 – Password ...................... 27 Menu 14 – Operational Records..................27 Menu 15 – Tools ......................28 Menu 16 – VSD Setting ....................29 Accessories ........................30 PentaFOB Programming Instructions ................31 ® www.elsema.com... -
Page 4: Features

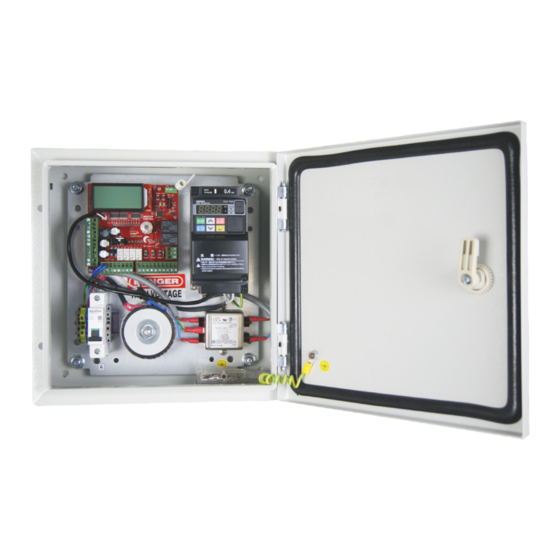

MCi-VSD kit comes with its own Omron VSD for controlling a 3-phase 240 Volt AC motor. The MCi card only version can also be used to control almost all types of VSD’s or even contactors. The relay outputs on the MCi are voltage free contacts, allowing the user to connect it to VSD’s Open, Close &... - Page 5 MCi-VSD04 External controls can be installed on request www.elsema.com...
-
Page 6: Menu Structure
Display Operations 15.0 15.1 15.2 Tools No. of Motors 1/2 Reset Factory Default 16.0 16.1 16.2 VSD Settings Motor Capacity Motor Poles EXIT PROGRAMMING Option only available in MCi-VSD kit Double Gate & Door Controller with Eclipse Operating System (EOS) ®... - Page 7 AC Only When Fully Open AC After Open Obstruct AC on Seq. Obstruct EXIT AC After Seq. Obstruct Option only available in MCi-VSD kit PA AC Time with PE Trig PA Hold Gate EXIT Stop Input Polarity Auxiliary Input 1 Polarity...
-
Page 8: Connection Diagram
MCi Connection Diagram 115 mm Antenna Code Reset 10 sec Powered By Eclipse Built-in Prog 1 Prog2 operating Receiver system Penta Receiver Master Common Control Push Button Open Close Relay Stop Common Relay PED Access Photo Beam Common ELSEMA Output 2 NO... -
Page 9: Operations Control
Common pedestrian access. 12-24 Volts AC Supply Supply connection for the MCi card only. Voltage free contacts. Connect to open, close and common terminal of the VSD. VSD 1 Contactor’s can also be switched with these outputs. See wiring diagram. -
Page 10: Supply And Motor Inputs
Master Control Control Push Button Open Close Stop Common PED Access Photo Beam Common ELSEMA Aux Input Open Close Aux Input Common 24/12V AC Supply Normally Closed User can change Double Gate & Door Controller with Eclipse Operating System (EOS) -
Page 11: Inverter Connection
The Voltage Free outputs are connected to a VSD as shown in the diagram. If 2 VSD’s are used, use the VSD 2 output to connect to the second VSD. Single-phase / 3-phase Main supply Relay Reverse Forward Relay Common ELSEMA Open Close Stop Varible Speed Drive/ Inverter 240V AC Supply Normally Closed... -
Page 12: Limit Switches
Limit Switches Limit switches must be connected to the MCi control card to determine the end of travel. Limit switch inputs are Normally Closed (NC) by factory default but it can be changed to Normally Open (NO) if required. Limit switches can be used in 2 different configurations on the MCi-VSD version. -
Page 13: Setup I-Learning Steps
5. Buzzer will indicate learning was successful. If there was no buzzer check all electrical wiring including the power supply then go back to step 1. 6. If you hear the buzzer after the i-Learn, the gate or door is ready for use. www.elsema.com... -
Page 14: Menu 1 - Auto Close
Auto Close and several special Auto Close features each one having its own countdown timers. Elsema Pty Ltd recommends a Photoelectric Beam to be connected to the control card when any of the Auto Close options are used. -
Page 15: Menu 2 - Pedestrian Access Features
There are several types of Pedestrian access modes. Pedestrian access opens the gate for a short time to allow someone to walk through the gate but does not allow a vehicle access. Elsema Pty Ltd recommends a Photoelectric Beam to be connected to the control card when any of the Auto Close options are used. -
Page 16: Menu 3 - Input Functions
The Photoelectric Beam or sensor is a safety device which is placed across the gate and when the beam is obstructed it stops a moving gate. The operation after the gate stops can be selected in this menu. Elsema sells several different types of photoelectric beams. We stock Retro-Reflective and Through Beam photoelectric beams. -
Page 17: Menu 4 - Photoelectric Beam
Elsema Pty Ltd recommends a Photoelectric Beam to be connected to the control card when any of the Auto Close options are used. Photoelectric Factory Menu No. Adjustable Beam Feature Default PE Beam stops and opens gate on close cycle... -
Page 18: Menu 5 - Relay Output Functions
Menu 5 – Relay Output Functions The control card has two relay outputs, Output 1 and Output 2. The user can change the function of these outputs to lock courtesy light, service call, strobe (Warning) light indicator, locking actuator, gate open (gate not fully closed) indicator or brake. - Page 19 Either output 1 or output 2 can be changed to service call indicator. This will trigger the output when the software service counter is reached. Used to alert installers or owners when the gate is to be serviced. Use Elsema’s GSM Receiver allows installers or owners to get a phone call and SMS message when the service is due.
-
Page 20: Menu 6 - Output Modes
Menu 6 – Relay Output Modes Menu 6.1 – Lock Output Modes The relay output in the lock mode can be configured in different ways. Factory Menu No. Lock Modes Adjustable Default 6.1.1 Open Lock Activation 2 seconds 1 – 30 seconds or hold 6.1.2 Close Lock Activation 1 –... - Page 21 When “Service Call Due” message shows up on the LCD a service call is required. After service has been done, follow the messages on the LCD. Factory Menu No. Service Call Mode Adjustable Default 6.4.1 Service Counter Min: 2000 to Max: 50,000 6.4.2 Exit www.elsema.com...
- Page 22 Menu 6.5 – Locking Actuator Output Mode The time for which relay output 1 turns “On” before the gate starts to open and the time for which relay 2 turns “On” after the gate is fully closed can be adjusted as below: Factory Menu No.
-
Page 23: Menu 7 - Special Features
The gate will stop as soon stop and open the gate. When this feature is as the button is released. disabled then the gate will stop on an activation of the Push Button or remote control. www.elsema.com... -
Page 24: Menu 8 - Leaf Delay
7.10 Push Button Open Only If this feature is ON, Push Button input will only Open the gate. In public access areas user should only be able to open the gate and not worry about closing it. Usually the Auto Close is used to close the gate. This mode disables closing for the Push Button input. -
Page 25: Menu 9 - Motor 1 Obstruction & Overrun Time
Slow Speed Overload Time 1 to 10 Exit The highlighted options are only available in MCi-VSD kit 9.1 Motor 1 Overrun Time This sets the overrun time for motor 1. 9.2 and 9.3 Motor 1 Obstruction Sensitivity and Detect Time This sets the time and sensitivity after which, the motor will sense and obstruction. -
Page 26: Menu 10 - Motor 2 Overrun Time
Menu 10 – Motor 2 Force and Overrun Time This sets the overrun time for motor 2. Menu No. Motor 2 Overrun Time Factory Default Adjustable 10.1 Motor 2 Overrun Time 20 seconds Off - 30 seconds 10.2 Exit 10.1 Motor 2 Overrun Time This sets the overrun time for motor 2. -
Page 27: Menu 13 - Password
The event history will store last 100 events. The following events are recorded into the memory: Power On, All input activations, Successful opening, Successful closing, Auto close, i-Learning and Factory Reset. Obstruction detection is only recorded on MCi-VSD kit. 14.2 Displays Gates Operations This displays the number of open cycles, close cycles and pedestrian cycles. -
Page 28: Menu 15 - Tools
Menu 15 – Tools Menu No. Tools 15.1 Number of Motors, Single or Double Gate System 15.2 Resets Controller to Factory Settings 15.3 Test Inputs 15.4 Exit 15.1 Number of Motors This allows you to manually set the control card to a single motor or a double motor. 15.2 Resets Controller Reset all settings to factory default. -
Page 29: Menu 16 - Vsd Setting
Exit The highlighted options are 16.1 Motors Capacity only available in MCi-VSD kit This allows you to select the size of the motor used. 16.2 Number of Motor Poles Motors can be 2, 4, or 6 poles. Check your motor for number of poles. -
Page 30: Accessories
® Flashing Lights Penta Repeater can increase the operating range Elsema has several flashing lights to act as a of the keyring remotes to up to 500 metres. warning when the gate or doors is in operation. Flashing Lights... -
Page 31: Pentafob ® Programming Instructions
Backup Chips ® This chip is used to backup or restore the contents of a receiver. When there are 100’s of remotes programmed to a receiver the installer normally backups the receiver memory in case the receiver is damaged. www.elsema.com... - Page 32 Keyring remote controls Sliding gate Swinging gate motor kits motor kits Sliding gate Swinging gate motor kits motor kits Motor control cards & Kits ELSEMA PTY LTD 31 Tarlington Place Smithfield NSW 2164 Australia 02 9609 4668 www.elsema.com...
