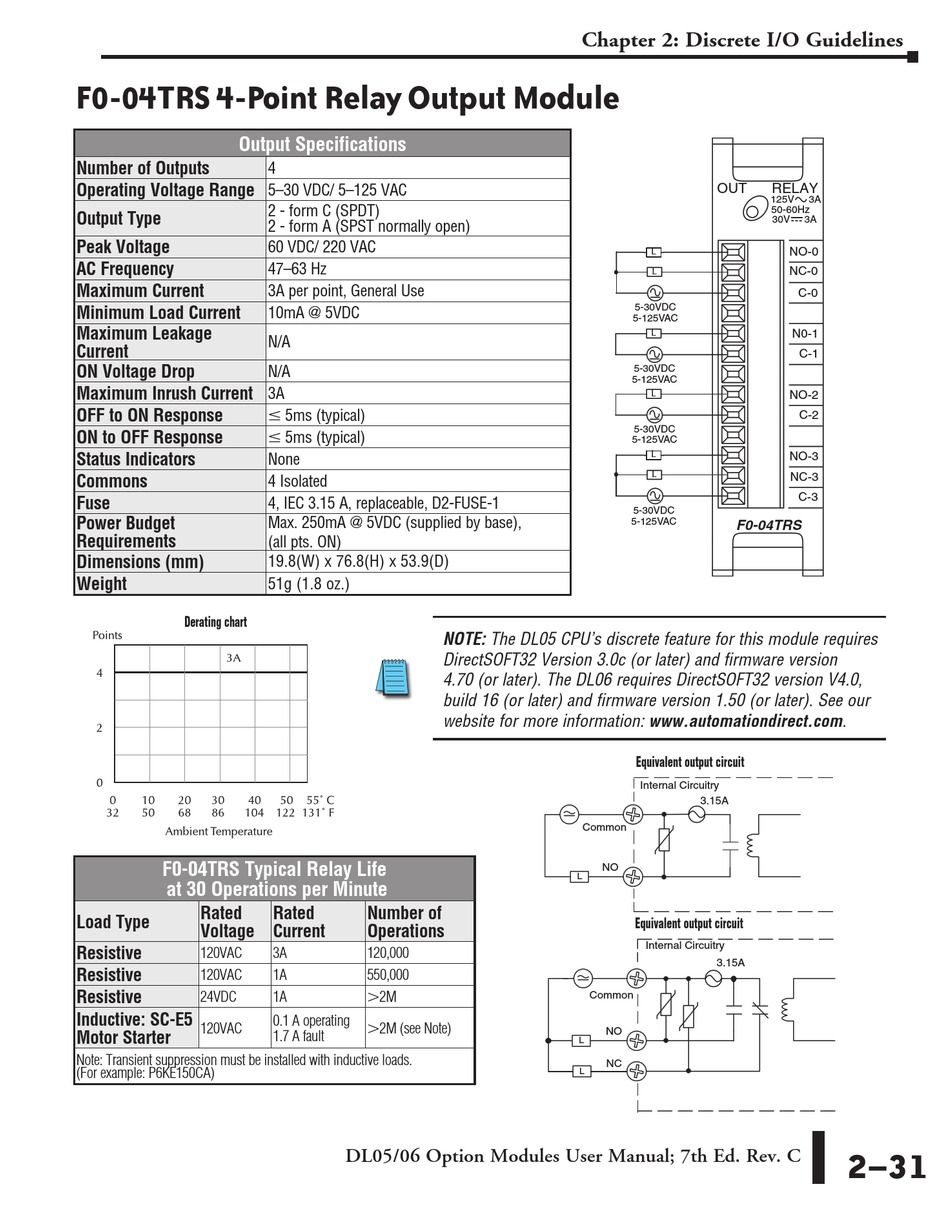

F0-04TRS 4-Point Relay Output Module

Output Specifications
Number of Outputs
Operating Voltage Range
Output Type
Peak Voltage
AC Frequency
Maximum Current
Minimum Load Current
Maximum Leakage
Current
ON Voltage Drop
Maximum Inrush Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
Fuse
Power Budget
Requirements
Dimensions (mm)
Weight
Derating chart
3A
F0-04TRS Typical Relay Life
at 30 Operations per Minute
Rated
Load Type
Voltage
Resistive
120VAC
Resistive
120VAC
Resistive
24VDC
Inductive: SC-E5
120VAC
Motor Starter
Note: Transient suppression must be installed with inductive loads.
(For example: P6KE150CA)
4
5–30 VDC/ 5–125 VAC
2 - form C (SPDT)
2 - form A (SPST normally open)
60 VDC/ 220 VAC
47–63 Hz
3A per point, General Use
10mA @ 5VDC
N/A
N/A
3A
m 5ms (typical)
m 5ms (typical)
None
4 Isolated
4, IEC 3.15 A, replaceable, D2-FUSE-1
Max. 250mA @ 5VDC (supplied by base),
(all pts. ON)
19.8(W) x 76.8(H) x 53.9(D)
51g (1.8 oz.)
NOTE: The DL05 CPU's discrete feature for this module requires
DirectSOFT32 Version 3.0c (or later) and firmware version
4.70 (or later). The DL06 requires DirectSOFT32 version V4.0,
build 16 (or later) and firmware version 1.50 (or later). See our
website for more information: www.automationdirect.com.
Rated Number of
Current Operations
3A 120,000
1A 550,000
1A
L2M
0.1 A operating
L2M (see Note)
1.7 A fault
DL05/06 Option Modules User Manual; 7th Ed. Rev. C
Chapter 2: Discrete I/O Guidelines
OUT
L
L
5-30VDC
5-125VAC
L
5-30VDC
5-125VAC
L
5-30VDC
5-125VAC
L
L
5-30VDC
5-125VAC
F0-04TRS
Equivalent output circuit
Internal Circuitry
3.15A
Common
NO
L
Equivalent output circuit
Internal Circuitry
3.15A
Common
NO
L
NC
L
RELAY
125V 3A
50-60Hz
30V 3A
NO-0
NC-0
C-0
N0-1
C-1
NO-2
C-2
NO-3
NC-3
C-3
