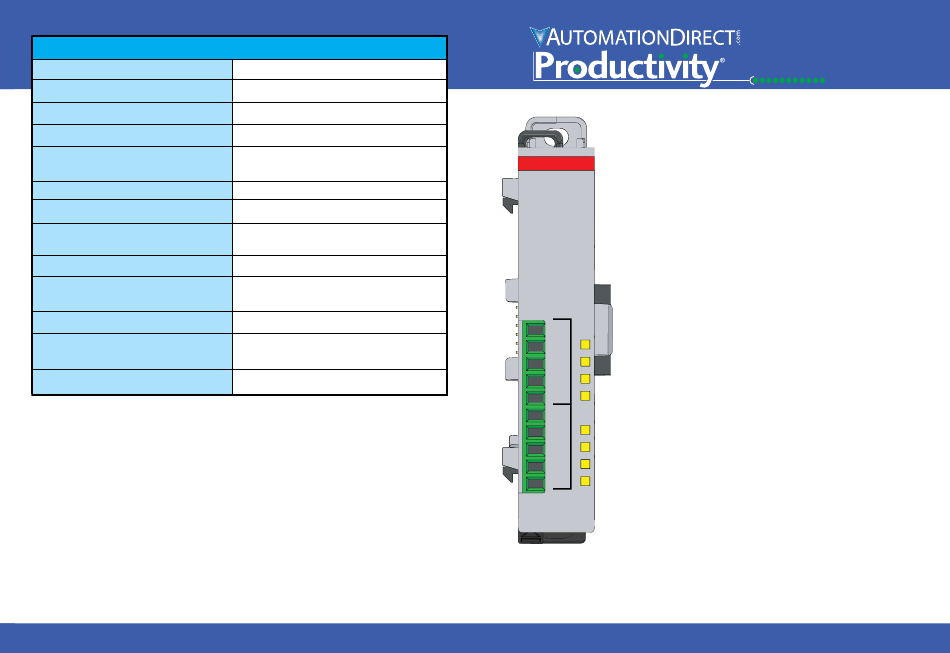

Automationdirect.com Productivity 1000 P1-08TA Manual

Output Specifications
Outputs per Module
Rated Voltage
Operating Voltage Range
AC Frequency
Maximum Output Current @ Temp
Minimum Load Current
Maximum Leakage Current
On Voltage Drop
Maximum Inrush Current
OFF to ON, ON to OFF
Response
Status Indicators
Commons per Module*
Maximum Applicable Fuse
*C1 and C2 must be jumped together by an external wire during 240VAC applications.
Sales 800-633-0405
8
100–240 VAC
80–288 VAC
47–63 Hz
0.5 A / point, 4A / common @ 55°C
0.3 A / point, 2.4 A / common @ 60°C
10mA
4mA @ 264VAC
1.5 VAC @ > 50mA
4.0 VAC @ < 50mA
6A for 10ms
1ms + 1/2 cycle
Logic Side (8 points)
2 Isolated (4 points/common) @ 120VAC
2 Non-Isolated @ 240VAC
8A

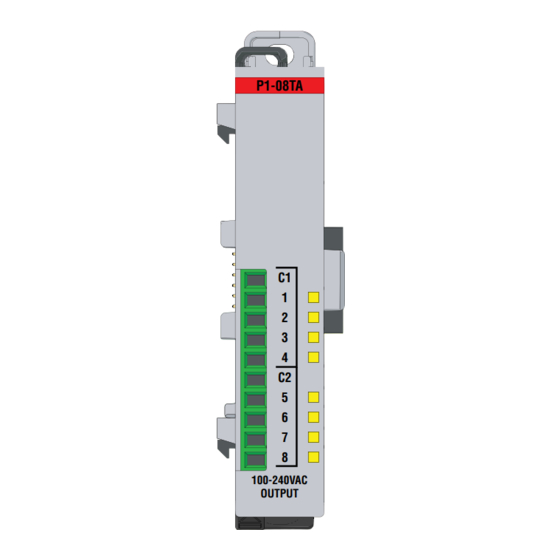

P1-08TA AC Output
P1-08TA
The P1-08TA AC Output Module provides
eight 100–240 VAC outputs for use with the
Productivity1000 system.
Output Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
C1
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Schematic & Wiring Diagram . . . . . . . . . . . . . . . . . . . . 3
1
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 4
2
Terminal Block Specifications . . . . . . . . . . . . . . . . . . . . 4
3
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4
C2
5
6
7
8
100-240VAC
OUTPUT
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement (See www.productivity1000.com for details).
www.productivity1000.com
