Automationdirect.com Productivity 1000 P1-08TRS Manual

Output Specifications
Outputs per Module
Rated Voltage
Operating Voltage Range
Output Type
AC Frequency
Maximum Output Current
Minimum Load Current
Maximum Inrush Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
Maximum Applicable Fuse
Typical Relay Life
Voltage & Type of Load
30VDC Resistive
30VDC Solenoid
120VAC Resistive
120VAC Solenoid
Sales 800-633-0405
8
6–24 VDC
6–120 VAC
5.1–30 VDC
5.1–132 VAC
6 Relays, FORM A (SPST)
2 Relays, FORM C (SPDT)
47–63 Hz
3A / point for both AC and DC
2A / point if used with ZIPLink Cable
5mA @ 5VDC
3A for 10ms
< 10ms
< 10ms
Logic Side (8 points)
8 isolated (1 point / common)
8A
Operations at 4A Load Current
100,000
100,000
100,000
100,000
1000

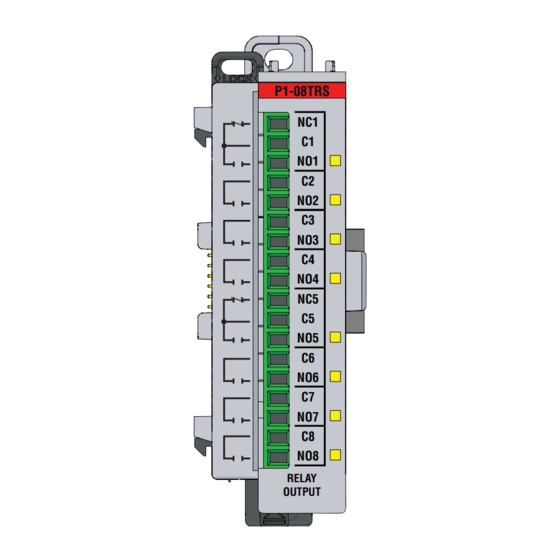

P1-08TRS Isolated Relay
P1-08TRS
The P1-08TRS high-current isolated relay
output module provides eight 3A surge-
NC1
protected outputs. The P1-08TRS offers both
C1
normally open and normally closed relay
NO1
contacts for use with the Productivity1000
System.
C2
NO2
C3
Output Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 1
NO3
Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
C4
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
NO4
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Schematic & Wiring Diagram . . . . . . . . . . . . . . . . . . . . 3
NC5
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 4
C5
Terminal Block Specifications . . . . . . . . . . . . . . . . . . . . 4
NO5
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
C6
NO6
C7
NO7
C8
NO8
RELAY
OUTPUT
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement (See www.productivity1000.com for details).
www.productivity1000.com
1
