Automationdirect.com Productivity 1000 P1-04DAL-2 Manual

Output Specifications
Output Channels
Module Signal Output Range
Signal Resolution
Resolution Value of LSB
(least significant bit)
Data Range
Output Type
Output Value in Fault Mode
Load Impedance
Maximum Capacitive Load
Allowed Load Type
Maximum Inaccuracy
Full Scale Calibration Error
Offset Calibration Error
Accuracy vs. Temperature
Max Crosstalk at DC, 50/60Hz
Linearity Error (End to End)
Output Stability and
Repeatability
Output Ripple
Output Settling Time
All Channel Update Rate
Maximum Continuous Overload
Type of Output Protection
Output Signal at Power Up and
Power Down
External Power Supply Required
Sales 800-633-0405
4
0–10 V
12-bit
0–10 V = 2.44 mV / count
1 LSB = 1 count
0–4095 counts
Voltage sourcing at 10mA
0V
≥1000Ω
0.01 µF
Grounded
0.5% of range
±0.2% of range
±0.2% of range
±75 PPM / °C maximum full-scale
calibration change (±0.0025% of range / °C)
-72dB, 1 LSB
±4 LSB max., (±0.1% of full scale)
Monotonic with no missing codes
±2% LSB after 10 min. warm up (typical)
±0.2% of full scale
0.3 ms max., 5µs min. (full scale range)
2ms
Outputs current limited to 40mA typical
Continuous overloads on multiple outputs
can damage the module.
0.1 µ Transient Suppressor
0V
24VDC (-20% / +25%), 100mA

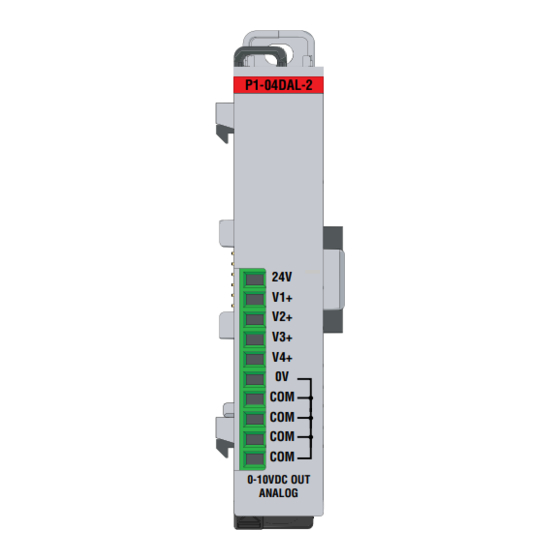

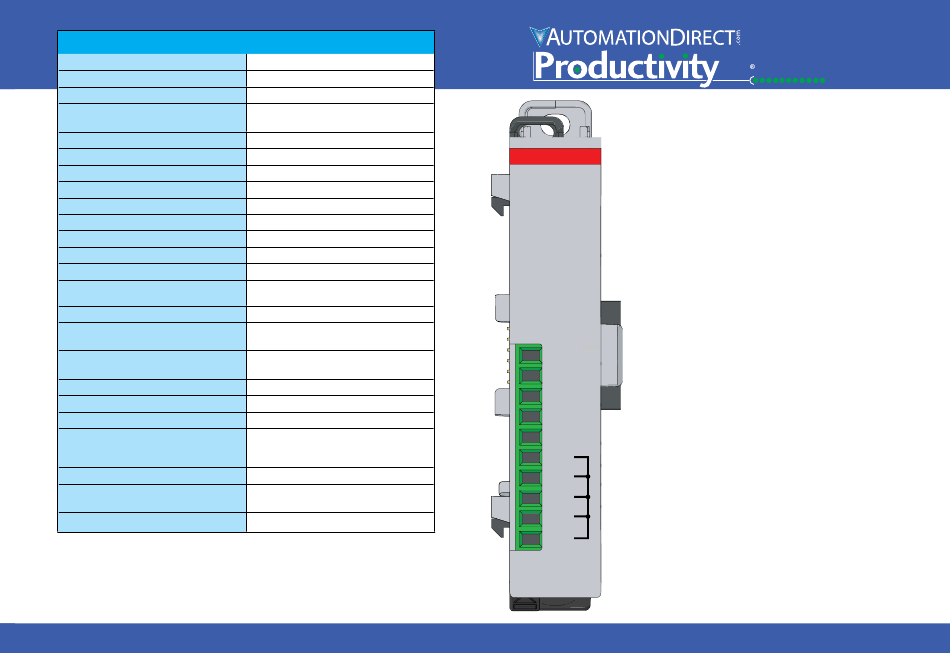

P1-04DAL-2 Analog Output
P1-04DAL-2
The P1-04DAL-2 Low Resolution Voltage Analog
Output Module provides four outputs for converting
digital values from 0–4095 (12-bit) to 0–10 VDC
analog signals for use with the Productivity1000
system.
Output Specifications . . . . . . . . . . . . . . . . . . . . . . . 1
General Specifications . . . . . . . . . . . . . . . . . . . . . . 2
Removable Terminal Block Specifications. . . . . . . . 2
Wiring Diagram and Schematic . . . . . . . . . . . . . . . . 3
Module Installation Procedure . . . . . . . . . . . . . . . . . 4
24V
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
V1+
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . 5
V2+ Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Non-Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . 6
V3+
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
V4+
0V
COM
COM
COM
COM
0-10VDC OUT
Terminal Block sold separately, (see wiring options on page 5).
ANALOG
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement (See www.productivity1000.com for details).
www.productivity1000.com
1000
1
