Automationdirect.com Productivity 1000 P1-15TD2 Manual

Output Specifications
Outputs per Module
Rated Voltage
Operating Voltage Range
Output Type
Maximum Output Current
Minimum Load Current
Maximum Leakage Current
On Voltage Drop
Maximum Inrush Current
OFF to ON, ON to OFF Response
Status Indicators
Commons Per Module
Maximum Applicable Fuses
External Power Supply Required
Sales 800-633-0405
15 sourcing
12–24 VDC
10.2–26.4 VDC, Max 30VDC
P-channel MOSFET, open source
1A per point / 8A per common
1mA
0.3 mA @ 26.4 VDC
0.2 VDC @ 1A
4A for 50ms, 6A for 10ms
0.5 ms
Logic Side (15 points)
1 non-isolated
8A
12–24VDC (-15% / +20%) @ 22mA

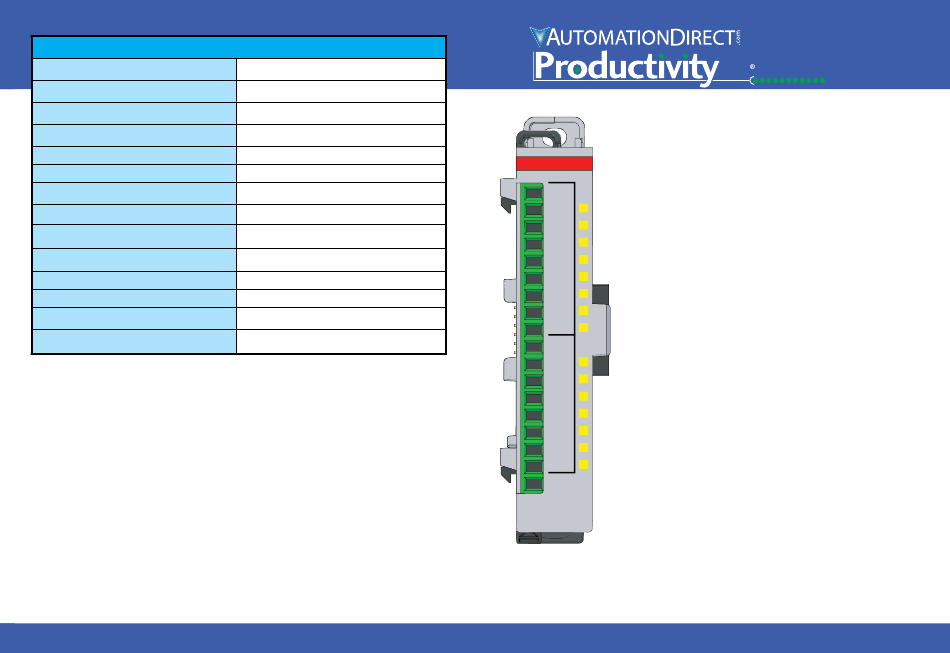

P1-15TD2 Sourcing DC Output
P1-15TD2
The P1-15TD2 DC Output Module provides
fifteen 12–24 VDC outputs that source up to
V1
1A per point to loads connected to ground for
1
use with the Productivity1000 system.
2
3
4
5
Output Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 1
6
Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
7
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
8
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Schematic & Wiring Diagram . . . . . . . . . . . . . . . . . . . . 3
V2
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 4
9
Terminal Block Specifications . . . . . . . . . . . . . . . . . . . . 4
10
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
11
12
13
14
15
0V
12-24VDC
SOURCE OUT
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement (See www.productivity1000.com for details).
