Input Specifications

Inputs per Module
Operating Voltage Range (Tolerance)
Input Voltage Range
Peak Voltage Range
Input Current
Maximum Input Current
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons per Module
Sales 800-633-0405
32 (Sink/Source)
12–24 VDC
10.2–26.4 VDC
30VDC
3.5 mA @ 12VDC
7.5 mA @ 24VDC
10mA @ 26.4 VDC
>9.5 VDC
<7 VDC
2mA
1.6 mA
2ms Maximum, 1ms Typical
2ms Maximum, 1ms Typical
Logic Side (32 Points)
4 Isolated (8 points/common)
P2-32ND3-1 DC Input
D3-1

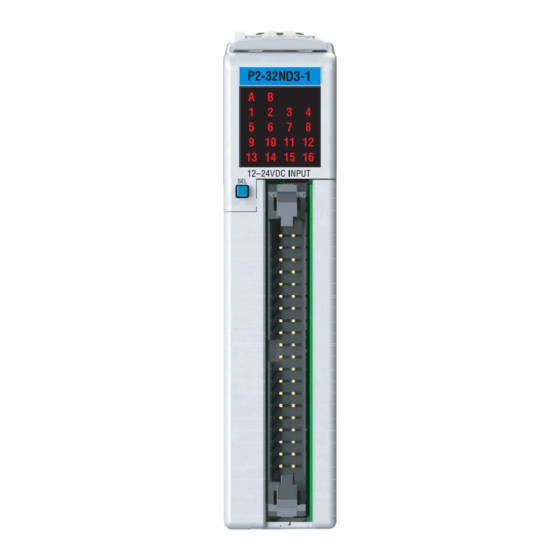

The P2-32ND3-1 DC Input Module provides
thirty-two 12–24 VDC sink/source inputs for
use with the Productivity2000 System.
12–
Input Specifications .................................................. 1
Module Installation Procedure .................................. 2
Qr Code .................................................................. 2
Hot Swap Information ............................................... 3
Wiring Options .......................................................... 3
Wiring Diagram And Schematic ................................ 3
Warning .................................................................... 4
Connector Specifications .......................................... 4
General Specifications ............................................. 4
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
