Set Up Instructions - ADJ ENTOUR ICE User Manual

S E T U P I N S T R U C T I O N S
SET UP
1. Set the Entour Ice on a flat surface and remove any packing material.
2. Connect the fog conduction hose and hose adapter. Be sure to point or direct the hose in a
safe direction away from equipment, people and poorly ventilated areas.
3. Ensure that water tank and dry ice basket are free of any debris.
4. Fill the cooler box with clean water. The bottom water tank will fill as water is added to the
cooler box. Be sure not to exceed the warning water line (Figure 1). During use, if the water
level is insufficient, the unit will stop functioning and the menu will be inaccessible.
5. Add dry ice into the mesh basket and carefully lower the basket into the cooler box.
6. Connect the mains power cord from the unit to the appropriate power supply.
7. Connect a DMX controller or use the LCD display and menu/function buttons to set the
desired settings. For operating instructions, please see page 14.
12

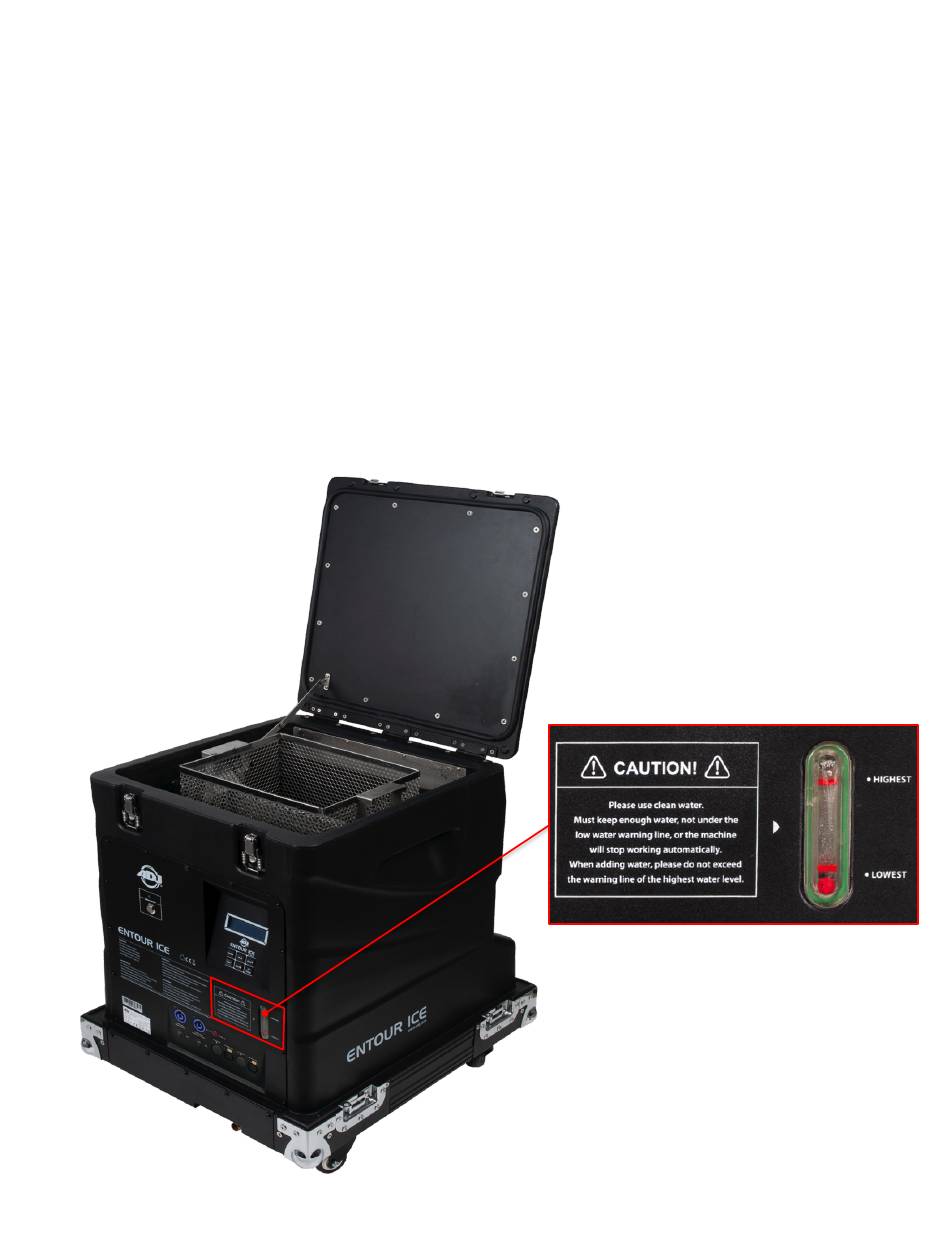

Figure 1
