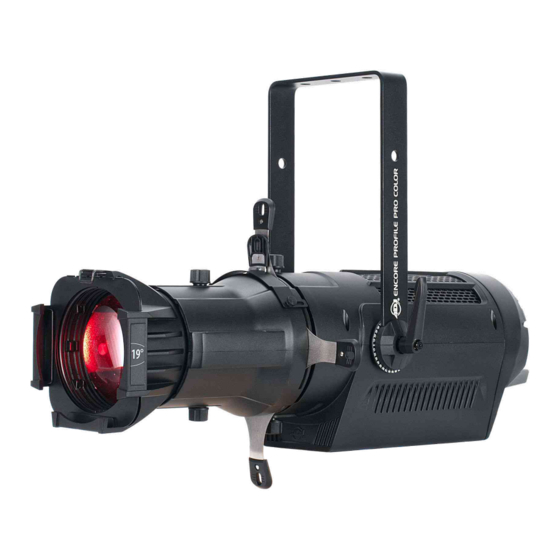

- Page 1 ENCORE PROFILE PRO COLOR User Instructions Shown with optional 19° Lens Kit. Lens Kits sold separately.
- Page 2 ©2020 ADJ PRODUCTS LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ logo and identifying product names and numbers herein are trademarks of ADJ PRODUCTS LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
Encore Profile Pro Color Table of Contents General Information Warranty (USA Only) Warranty Registration | Features Safety Guidelines Overview Lens & Gobo Holder Installation Installation System Menu Multiple Unit Power Linking | Dimmer Mode Chart DMX Setup DMX Addressing DMX Channel Functions & Values... -
Page 4: General Information
Introduction: The ADJ Encore Profile Pro Color is a DMX intelligent, high powered LED fixture. To optimize the performance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. -
Page 5: Warranty (Usa Only)
ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC;... -
Page 6: Warranty Registration | Features
Encore Profile Pro Color Warranty Registration The Encore Profile Pro Color carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre- paid and accompany a return authorization (R.A.) number. -
Page 7: Safety Guidelines
THIS FIXTURE IS COMPOSED OF SOPHISTICATED ELECTRONIC COMPONENTS. TO GUARANTEE SMOOTH OPERATION, IT IS IMPORTANT TO FOLLOW ALL INSTRUCTIONS AND GUIDELINES IN THIS MANUAL. ADJ PRODUCTS, LLC IS NOT RESPONSIBLE FOR INJURY AND/ OR DAMAGES RESULTING FROM THE MISUSE OF THIS FIXTURE DUE TO THE DISREGARD OF THE INFORMATION PRINTED IN THIS MANUAL. -
Page 8: Overview
Encore Profile Pro Color Overview Le ns ( not inc lude d) Foc us Gobo S lot C ov e r B la de S hutt e r s M ount ing Y ok e Y ok e H a ndle... -
Page 9: Lens & Gobo Holder Installation
Encore Profile Pro Color Lens Installation Insert (2x) knurled thumb screws of the lens kit into their respective gaskets, and through the bar slots into the lens kit housing, then tighten. Insert the lens kit (not included) into the lens cone inside. -
Page 10: Installation
Encore Profile Pro Color Installation FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE. - Page 11 The Encore Profile Pro Color is fully operational in three different mounting positions; hanging upside-down, mounted sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decoration etc.).
- Page 12 LEDs. This issue is not specific to ADJ lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the following guidelines can prevent any potential damage from occurring if followed.
-
Page 13: System Menu
Encore Profile Pro Color System Menu SYSTEM MENU The fixture includes an easy to navigate system-menu control panel display where all necessary settings and adjustments are made. (See image below) During normal operation, pressing the MENU button once will access the fixture’s main menu. Once in the main menu, you can navigate through the different menu’s with the UP, DOWN, and MENU buttons. - Page 14 Encore Profile Pro Color System Menu Supports Software Versions: 1.04 MENU OPTIONS / VALUES (Default Settings in BOLD) DESCRIPTION Shall be used to set the units starting DMX address channel. Depending on set DMX mode, unit shall not DMX Address...
- Page 15 Encore Profile Pro Color System Menu DMX Address - In this menu you can find and set your desired DMX address. Channel Mode - In this menu you can find and set your desired DMX channel mode. Function Status - This menu setting is used as a precaution mode in case the DMX signal is lost or interrupted.
-
Page 16: Multiple Unit Power Linking | Dimmer Mode Chart
Encore Profile Pro Color Multiple Unit Power Linking With this feature you can connect the fixtures to one another using the power cable input and output sockets. NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAXIMUM POWER OUTPUT ON THIS FIXTURE! CHECK SILK SCREEN FOR MAXIMUM AMPERES. -
Page 17: Dmx Setup
2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ... -
Page 18: Dmx Addressing
Encore Profile Pro Color DMX Addressing DMX ADDRESSING All fixtures should be given a DMX starting address when using a DMX controller, so the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen”... -
Page 19: Dmx Channel Functions & Values
Encore Profile Pro Color DMX Channel Functions & Values Supports Software Versions: ≥ 1.04 Features subject to change without notice Modes Values Function 13Ch 14Ch 16Ch 000-255 0% - 100% Green 000-255 0% - 100% Blue 000-255 0% - 100%... - Page 20 Encore Profile Pro Color DMX Channel Functions & Values Supports Software Versions: ≥ 1.04 Features subject to change without notice Modes Values Function 13Ch 14Ch 16Ch Dim Modes 000-020 Standard 021-040 Stage 041-060 061-080 Architectural 081-100 Theatre 101-120 Stage 2 Dimming Speed 0.1 s...
- Page 21 Encore Profile Pro Color DMX Channel Functions & Values Supports Software Versions: ≥ 1.04 Features subject to change without notice Modes Values Function 13Ch 14Ch 16Ch LED Refresh Rates 029-029 1080 Hz LED Refresh Rate 030-030 1090 Hz LED Refresh Rate...
- Page 22 Encore Profile Pro Color DMX Channel Functions & Values Supports Software Versions: ≥ 1.04 Features subject to change without notice Modes Values Function 13Ch 14Ch 16Ch LED Refresh Rates 065-065 1450 Hz LED Refresh Rate 066-066 1460 Hz LED Refresh Rate...
-
Page 23: Specifications
Encore Profile Pro Color Specifications SOURCE 250W RGBWAL (Red/Green/Blue/White/Amber/Lime) LED Engine 50,000 Hour Average LED Life* *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. PHOTOMETRIC DATA >90CRI 6,000 Total Lumens*... -
Page 24: Dimensional Drawings
Encore Profile Pro Color Dimensions 26.9in. [683mm] 22.2in. [563mm] 1.7in. [42mm] 9.8in. [250mm] 1.0in. [26mm] 11.4in. [289mm] 7.9in. [200mm]... -
Page 25: Dimensional Drawings Of Optional Lens Kits
Encore Profile Pro Color Optional Lens Kit Dimensions Lens Kits are not included LENS KIT: 5° 14.3in. [362.0mm 24.7in. [626.5mm] 14.1in. [357mm] 5.3in. [135.1mm] 3.0in. [76mm] LENS KIT: 10° 11.9in. [303.0mm] 13.8in. [351.5mm] 11.7in. [298mm] 5.3in. [135.1mm] 3.0in. [76mm]... - Page 26 Encore Profile Pro Color Optional Lens Kit Dimensions Lens Kits are not included LENS KIT: 14° 8.7in. [222.0mm] 10.7in. [271.1mm] 5.3in. [135.1mm] 8.5in. [217mm] 3.0in. [76mm] LENS KIT: 19°, 26°, 36°, 50° 6.8in. [172.0mm] 9.7in. [247.4mm] 6.1in. [154.2mm] 6.3in. [159mm]...
- Page 27 Encore Profile Pro Color Optional Lens Kit Dimensions Lens Kits are not included ZOOM LENS KIT: 15° - 30° 10.0in. [255.0mm] 19.6in. [496.8mm] 6.9in. [175.0mm] 1.9in. [48.6mm] ZOOM LENS KIT: 25° - 50° 10.0in. [255.0mm] 14.7in. [374.3mm] 6.9in. [175.0mm] 1.9in. [48.6mm]...
-
Page 28: Troubleshooting | Cleaning | Maintenance
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.
