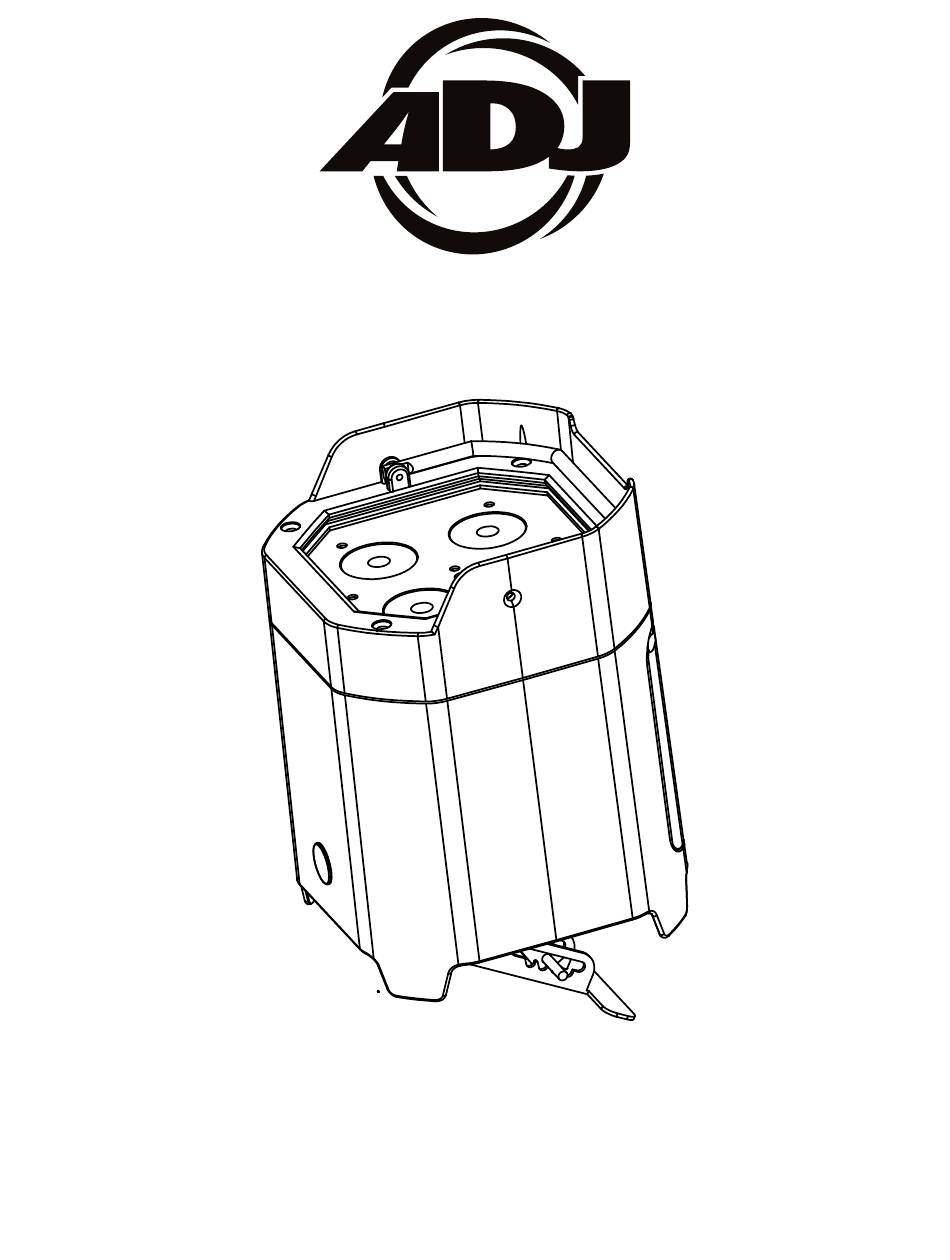

  • Page 1 ELEMENT HEXIP ELEMENT HEXIP CHROME User Instructions...
  • Page 2 ©2023 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    C O N T E N T S General Information IP54 Rated Key Features | Warranty Returns Limited Warranty (USA Only) Safety Guidelines Overview Wireless Setup UC IR Remote | Controls Installation Battery Handling Guidelines Battery Status and Recharging Replacement System Menu Primary-Secondary Setup DMX Setup | DMX Addressing...

  • Page 4: General Information

    • Power adapter (x1) • UC-IR24 remote (x1) CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions. ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-2650 | Fax: 323-832-2941 | support@adj.com...

  • Page 5: Ip54 Rated

    I P 5 4 R AT E D IP54 RATED NON-PERMANENT TEMPORARY USE OUTDOOR WET LOCATIONS An IP54 rated lighting fixture is designed with an enclosure that effectively protects ingress IP54 (entry) of external foreign objects and water. The International Protection (IP) rating system is commonly expressed as “IP”...

  • Page 6: Key Features | Warranty Returns

    K E Y F E AT U R E S • Battery power • RGBAW+UV 6-in-1 LEDs • IP54 rating • Indoor or outdoor usage INCLUDED ITEMS: • Charging base (x1) • Power adapter (x1) • UC-IR24 remote (x1) W A R R A N T Y R E G I S T R AT I O N Please fill out the enclosed warranty card to validate your purchase.

  • Page 7: Limited Warranty (Usa Only)

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.

  • Page 8: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ Products, LLC is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 9 S A F E T Y G U I D E L I N E S • RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION! • FIXTURE EMITS HIGH INTENSITY WAVELENGTH ULTRAVIOLET LIGHT. • WEAR PROPER EYE AND SKIN PROTECTION. •...

  • Page 10: Overview

    O V E R V I E W Battery On/Off Switch: This switch is used to turn ON battery power and also turn ON the PCB output. See page 22 “Load Setting” to activate. Kickstand: This kickstand is used to angle the unit to various degrees. There are 3 different degree levels.

  • Page 11: Wireless Setup

    W I R E L E S S S E T U P This device does not feature physical DMX connector ports. Therefore, in order to utilize DMX control, the user must first setup the device to run wireless DMX control. Follow the directions below to configure wireless DMX control: First, select the DMX Channel Mode that you would like the device to operate in.

  • Page 12: Uc Ir Remote | Controls

    30 feet away. To use the ADJ UC IR you must first activate the fixtures infrared sensor, to activate the sensor please see the instructions on page #.

  • Page 13: Installation

    I N S TA L L AT I O N IP RATING The Element HEXIP is IP54 rated. Ingress of dust is not entirely prevented, but it will not enter in sufficient quantity to interfere with satisfactory operation of the device. The Element HEXIP is also protected against splashing water from any direction.
  • Page 14 I N S TA L L AT I O N CLAMP INSTALLATION The Element HEXIP features a mounting clamp attachment point on the side of the device, as well as an eyelet for safety cable at the bottom of one foot (see the illustration below). When mounting the fixture to a truss or any other suspended or overhead installation, be sure to secure appropriately rated clamps (not included) to the clamp attachment point, as well as an appropriately rated safety clamp.
  • Page 15 I N S TA L L AT I O N KICKSTAND FOR FLOOR PLACEMENT The Element HEXIP can also be placed on the floor to provide an uplighting display, and features a retractable kickstand that allows the device to be angled in the direction of the desired display. To deploy the kickstand, simply toggle the switch on the underside of the device, near the power charging port (1).
  • Page 16 I N S TA L L AT I O N KENSINGTON KEY SLOT The device features a slot for a Kensington-type security device that can be used to prevent theft. The key slot is located near the bottom of one of the device’s feet, as shown in the illustration below. Be sure to attach the security device to a sturdy, fixed anchor point.
  • Page 17 B AT T E R Y: H A N D L I N G G U I D E L I N E S Avoid short-circuiting the battery. A short circuit can generate high current, causing the battery to overheat. This can lead to leakage of electrolyte gel, emission of harmful fumes, or even explosion. Treat your battery carefully to prevent such issues.

  • Page 18: Battery

    B AT T E R Y: B AT T E R Y S TAT U S A N D R E C H A R G I N G Your device comes with a feature that helps you monitor the battery’s condition. To check the life of the battery, plug in the fixture and press the ‘MODE’...

  • Page 19: Replacement

    B AT T E R Y: R E P L A C E M E N T Open front cover. Locate and remove the 2x Philips-head screws that secure battery pack holder.
  • Page 20 B AT T E R Y: R E P L A C E M E N T Detach the connector and remove the battery pack. Replace the battery pack with new one, and reattach the connector. Secure the battery pack cover with 2x Philips-head screws.

  • Page 21: System Menu

    S Y S T E M M E N U This fixture includes an easy to navigate control panel display, from which all necessary settings and adjustments can be made. Press the MODE button to scroll through the main menu options, then press ENTER to select the currently displayed option.
  • Page 22 S Y S T E M M E N U MENU SUBMENU OPTIONS FUNCTIONS Address DMX Address Setting d001~d512 6 DMX Channel Mode Ch06 7 DMX Channel Mode Ch07 Channels 8 DMX Channel Mode Ch08 11 DMX Channel Mode Ch11 DMX MODE 12 DMX Channel Mode Ch12...
  • Page 23 S Y S T E M M E N U Operating Power: This unit can be powered in two ways: battery power or AC power. Note: Regardless of the power source, you need to activate the LOAD function. AC Power - To operate the unit using AC power, plug it into a power source and activate the Load setting.
  • Page 24 S Y S T E M M E N U Operating Modes: The Element HEXIP has five operating modes: RGBWA+UV Dimmer Mode - Choose one of the six colors to remain static or adjust the intensity of each color to create your desired color. Sound Active Mode - The unit reacts to sound and chases through the built-in programs.
  • Page 25 S Y S T E M M E N U Auto Run Mode: There are 3 types of Auto Run Modes to choose from: Color Fade, Color Change, and both Color Change and Color Fade modes running together. The running speed is adjustable in all 3 modes. Plug in the fixture and press the MODE button until either “AFXX,”...
  • Page 26 S Y S T E M M E N U DMX State: The DMX state mode serves as a precautionary measure in case the DMX signal is lost. It determines the running mode the fixture will enter when the DMX signal is lost. It can also be set as the default operating mode when power is applied.

  • Page 27: Primary-Secondary Setup

    P R I M A R Y- S E C O N D A R Y S E T U P Primary-Secondary Setup: This function allows you to link units in a Primary-Secondary setup. In this setup, one unit acts as the controlling unit, and the others react to the controlling unit’s built-in programs.

  • Page 28: Dmx Setup | Dmx Addressing

    D M X S E T U P DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture.

  • Page 29: Dmx Traits

    D M X T R A I T S CHANNEL FUNCTION VALUES 6 CH 7 CH 8 CH 11 CH 12 CH 000-255 RED, 1~100% GREEN, 1~100% 000-255 BLUE, 1~100% 000-255 000-255 WHITE, 1~100% AMBER, 1~100% 000-255 000-255 UV, 1~100% MASTER DIMMER, 1~100% 000-255 STROBING/SHUTTER...
  • Page 30 D M X T R A I T S CHANNEL FUNCTION VALUES 6 CH 7 CH 8 CH 11 CH 12 CH PROGRAMS COLOR MACRO MODE 000-255 SEE THE COLOR MACRO CHART COLOR CHANGE MODE COLOR CHANGE 1 000-015 COLOR CHANGE 2 016-031 COLOR CHANGE 3 032-047...
  • Page 31 D M X T R A I T S CHANNEL FUNCTION VALUES 6 CH 7 CH 8 CH 11 CH 12 CH PROGRAM SPEED/SOUND SENSITIVITY 000-255 PROGRAM SPEED SLOW-FAST 000-255 LEAST SENSITIVE-MOST SENSITIVE DIMMER CURVES 000-020 STANDARD 021-040 STAGE 041-060 061-080 ARCHITECTURAL 081-100...

  • Page 32: Ir Default Values | Editing Rgba Ir Button Values

    I R D E FA U LT VA L U E S BUTTON GREEN BLUE WHITE AMBER E D I T I N G R G B A I R B U T T O N VA L U E S These fixtures allow the user to create custom RGBA values and assign them to the numbered keys (0-15) on the remote control.

  • Page 33: Color Macros

    C O L O R M A C R O S DMX VALUES COLOR MACRO DMX VALUES COLOR MACRO 144-147 G+W+UV 148-151 G+A+UV 8-11 Green 152-155 B+W+A 12-15 Blue 156-159 B+W+UV 16-19 White 160-163 B+A+UV 20-23 Amber 164-167 W+A+UV 24-27 168-171 R+G+B+W 28-31...

  • Page 34: White Color Temperature Presets

    W H I T E C O L O R T E M P E R AT U R E P R E S E T S Color Temp DMX Value Color Temp DMX Value Color Temp DMX Value No Function 000 - 022 5300 8400...

  • Page 35: Dimmer Curves And Dimmer Modes

    D I M M E R C U R V E S A N D D I M M E R M O D E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect...

  • Page 36: Cleaning & Maintenance

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from an authorized ADJ dealer.

  • Page 37: Torque Settings For Screws

    T O R Q U E S E T T I N G S F O R S C R E W S TORQUE DRIVERS (Recommended): UTICA TS-30 (Shown) TORQUE DRIVER (Alternate): • Proto J6107A • Wiha 28887 The recommended torque setting for the Element HEXIP / Element HEXIP Chrome is 13kgf-cm.

  • Page 38: Specifications

    Built-in kickstand to angle figure while it’s on the floor • 4-button DMX menu display on rear panel with water resistant hatch • Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver • 63 built-in Color Macros •...
  • Page 39 D I M E N S I O N S Dimensions not to scale.
  • Page 40 A C C E S S O R Y A N D O R D E R I N G I N F O R M AT I O N SKU NUMBER DESCRIPTION EPC600 6-PACK SKB CASE EFC800 8-PACK CHARGING CASE...
