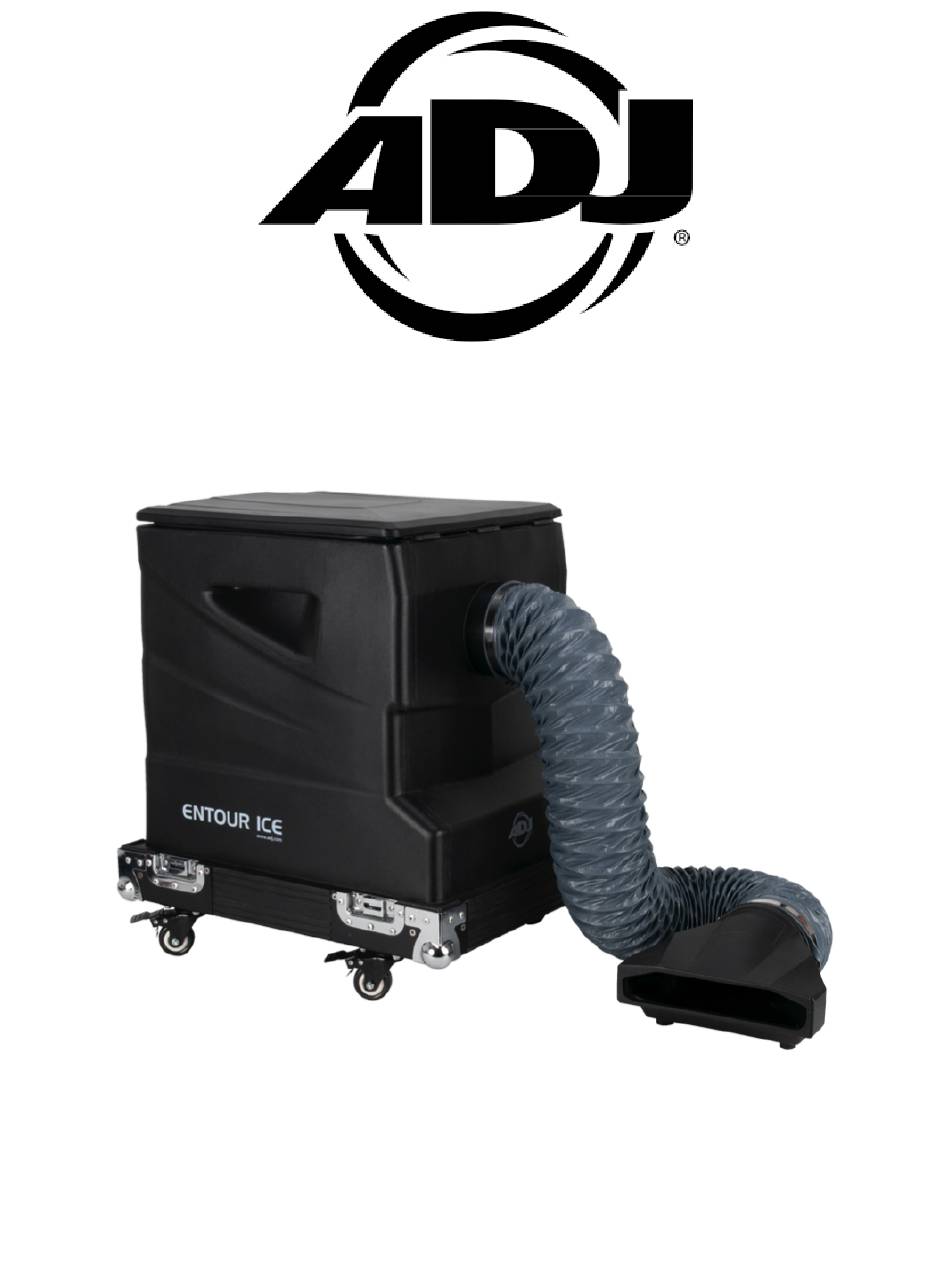

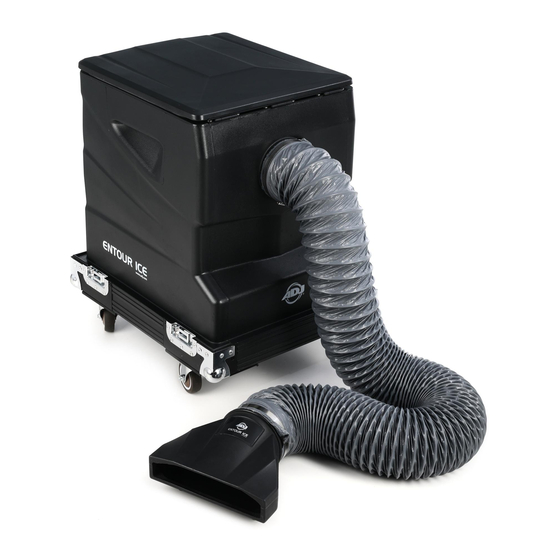

  • Page 1 ENTOUR ICE user manual...
  • Page 2 ©2019 ADJ PRODUCTS LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ logo and identifying product names and numbers herein are trademarks of ADJ PRODUCTS LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Overview DMX Setup Set Up Instructions System Menu Operation DMX Channels / Values / Functions Maintenance Guidelines and Cleaning Troubleshooting and Frequently Asked Questions Technical Specifications and Optional Accessories Dimensions...

  • Page 4: General Information

    Items returned without a R.A. number clearly marked on the outside of the package will be refused and returned at customer’s expense. You may obtain a R.A. number by contacting customer support. CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Please visit forums.adj.com with questions, comments or suggestions.

  • Page 5: Limited Warranty (Usa Only)

    ADJ Products, LLC be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.

  • Page 6: Safety Guidelines

    To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS LLC is not responsible for injury and/or damages resulting from the misuse of these devices due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of these devices and only the original rigging parts included with these devices should be used for installation.
  • Page 7 DRY ICE CAN BE DANGEROUS IF HANDLED, STORED OR USED INCORRECTLY. PLEASE FOLLOW ALL APPROPRIATE SAFETY GUIDELINES FOR HANDLING, STORAGE AND USE. HANDLING: THE TEMPERATURE OF DRY ICE IS -109.3°F (-79°C) AND IS COLD ENOUGH TO FREEZE SKIN CELLS AND CAUSE INJURIES SIMILAR TO A BURN. ALWAYS HANDLE DRY ICE WITH CARE AND WEAR PROTECTIVE GLOVES OR USE A PROTECTIVE CLOTH SUCH AS A TOWEL.
  • Page 8 S A F E T Y I N S T R U C T I O N S A N D G U I D E L I N E S DO NOT attempt installation and/or operation of devices without knowledge how to do so. DO NOT point or direct the fog conduction hose in an unsafe direction.

  • Page 9: Overview

    O V E R V I E W INCLUDED ITEMS: (1) Entour Ice (1) Flight Case Cover (1) Fog Conduction Hose 5’ (1.5M) L. Smoke On/Off Button A. Carry Handle M. LED Indicator B. Cooler Box N. Upper Cover Lock C.

  • Page 10: Dmx Setup

    D M X S E T U P POWER SUPPLY The Entour Ice has a main power input and an auxiliary power input. The main power input supplies 1,450W @ 120V (or 3,000W @ 230V) to the heater and control circuits while the auxiliary power supply provides an additional 1,450W @ 120V (or 3,000W @ 230V) to the heater.
  • Page 11 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.

  • Page 12: Set Up Instructions

    S E T U P I N S T R U C T I O N S SET UP 1. Set the Entour Ice on a flat surface and remove any packing material. 2. Connect the fog conduction hose and hose adapter. Be sure to point or direct the hose in a safe direction away from equipment, people and poorly ventilated areas.

  • Page 13: System Menu

    S Y S T E M M E N U MENU FUNCTION UP/DOWN MODE Instruction Button Button 65°C, 70°C, Select the desired preset water temperature Preset 75°C or 80°C (65°C, 70°C, 75°C or 80°C) Volume 10%-100% Select the desired output volume (10% - 100%) DMX Address 1 - 512 Sets the DMX starting address (001-512)

  • Page 14: Operation

    O P E R A T I O N The LCD Display is easy to read and displays functions and operation controls. Preset XX°C: Displays the default target water temperature. The preset temperature can be set to 65, 70, 75 or 80 degrees Celsius. Current T.
  • Page 15 O P E R A T I O N ( W I T H O U T D M X ) When there is no DMX signal detected, the Entour Ice can function in one of three settings (Continuous Fogging, Timed Fogging or Manual Fogging Operation).
  • Page 16 DMX Addressing and Channel Mode: This function will allow you to control each individual fixture’s traits with a standard DMX 512 controller. When the Entour Ice detects a DMX signal, it will enter DMX Mode automatically (with the exception of Manual Mode).

  • Page 17: Dmx Channels / Values / Functions

    D M X C H A N N E L S / V A L U E S / F U N C T I O N S DMX CHANNELS / VALUES / FUNCTIONS (3 Modes 6 Channels) SUPPORTS SOFTWARE VERSION 1.0 MODE (1,2 and 6) / CHANNEL VALUE FUNCTION...

  • Page 18: Maintenance Guidelines And Cleaning

    M A I N T E N A N C E G U I D E L I N E S DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE! Before performing maintenance, ensure that the power has been disconnected and unit has cooled and is a safe temperature to work on.
  • Page 19 M A I N T E N A N C E G U I D E L I N E S Draining the water tank: The Entour Ice has a drainage valve built in. To empty the water tank follow the instructions below: 1.
  • Page 20 Avoid the use of water with impurities as they may result in poor performance or damage to the unit. There are no user serviceable parts inside these devices, please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

  • Page 21: Troubleshooting And Frequently Asked Questions

    5. If the water level is too low, the heater will not power on and the menu will be inaccessible until water is added. 6. If none of these solutions work, please contact ADJ Customer Service. Fog output is not smooth and comes in bursts/blasts: 1.

  • Page 22: Technical Specifications And Optional Accessories

    3’ DMX cable with 5-pin male to 5-pin female connection.* AC5PDMX3PRO Pro Series 3’ DMX cable with 5-pin male to 5-pin female connection.* ENT220 Entour Ice Hose 5’ (1.5M) with clamps and fog dispersion nozzle. *Additional lengths available at www.adj.com...

  • Page 23: Dimensions

    D I M E N S I O N S 24.3” 617 mm 18.1” 460 mm 18.1” 21.4” 460 mm 543 mm 24.3” 24.9” 617 mm 632 mm *Flight Case Cover Shown...
