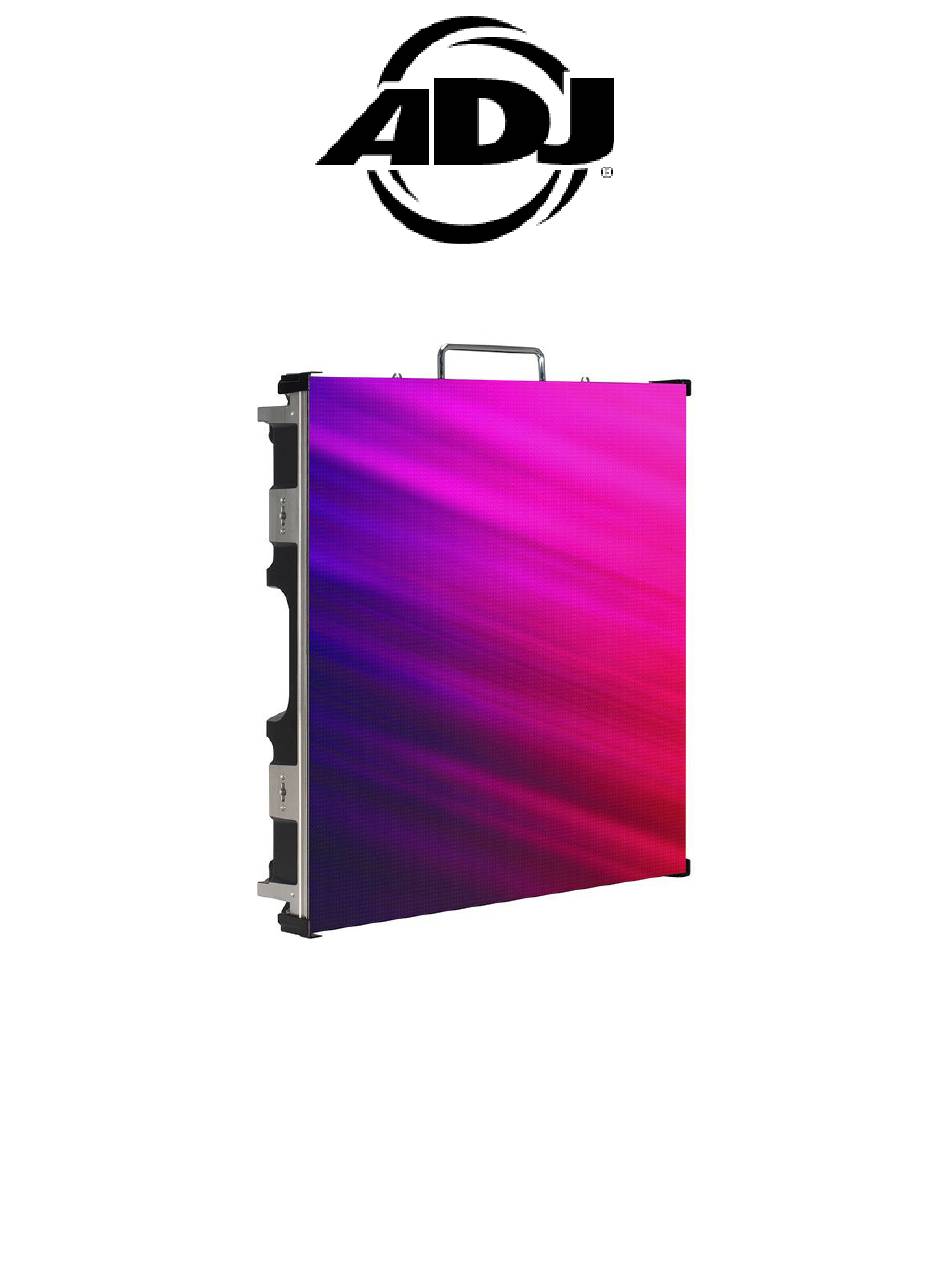

- Page 1 EVS3 User Manual...
- Page 2 ©2023 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Panel Overview LED Module Removal Tool LED Module Removal Handling and Transportation Installation Horizontal Panel Assembly Vertical Panel Assembly Rigging Bar Flat Panel Assembly Horizontal Truss Mount Ground Stack Technical Specifications... -
Page 4: General Information
Its exceptional optical ratings include a brightness of 800 NITS and a wide viewing angle of 160° horizontal and 140° vertical at 9.75 ft. The EVS3 also offers versatile control options, supporting various input modes such as Composite, S-Video, Component, VGA, DVI, HDMI, and HD-SDI. - Page 5 G E N E R A L I N F O R M AT I O N Customer Support: Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions. Parts: To purchase parts online visit: http://parts.adj.com...
-
Page 6: Limited Warranty (Usa Only)
The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect. -
Page 7: Safety Guidelines
This device is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is im- portant to follow all instructions and guidelines in this manual. ADJ is not responsible for injury and/or damages resulting from the misuse of this panel due to the disregard of the information printed in this manual. - Page 8 S A F E T Y G U I D E L I N E S • DO NOT touch panel housing during operation. Turn OFF power and allow approximately 15 min- utes for panel to cool down before servicing. •...
-
Page 9: Maintenance Guidelines
M A I N T E N A N C E G U I D E L I N E S • Careful and regular maintenance is necessary to optimize the potential functional lifespan of the video panels. • Read the installation and operation instructions for correct operation of the video panels. •... -
Page 10: Panel Overview
PA N E L O V E R V I E W DIMENSIONS: 19.75” x 19.75” x 3” (500mm x 500mm x 100mm) 19.75” (500mm) 3.0” (100mm) Folding Handle Integrated Vertical Locking Panel Connector Integrated Integrated Horizontal Locking Horizontal Locking Panel Connector Panel Connector Locking RJ45... - Page 11 PA N E L O V E R V I E W Each video panel includes a quick-release power supply with four (4) LED Modules, allowing for easy serviceability and simple repairs whilst out on the road. Each module is held safely in place with frame integrated magnets.
-
Page 12: Led Module Removal Tool
L E D M O D U L E R E M O VA L T O O L A technician can use the optional Vacuum Module Removal Tool (ADJ part number EVSVAC, sold separately) to safely remove and reinstall any of the four LED Modules in the video panel, and mini- mize potential damage from mishandling, ESD exposure, or other issues. -
Page 13: Led Module Removal
L E D M O D U L E R E M O VA L Note that the (4x) LED Modules are firmly held to the video panel frame with strong integrated mag- nets, and each individual LED module is secured with its own safety cable. Detach the safety cable for the LED module that you wish to remove. -
Page 14: Handling And Transportation
H A N D L I N G A N D T R A N S P O R TAT I O N INTEGRATED CORNER PROTECTORS The corners of the video panels are susceptible to damage during handling and transportation. When removing the video panels from their respective Flight Cases (VSFC8 sold separately), and before they are installed, exercise extra caution to avoid damaging any of the 4 corners. - Page 15 H A N D L I N G A N D T R A N S P O R TAT I O N ELECTROSTATIC DISCHARGE (ESD) PRECAUTIONS Because these are ESD sensitive units, ESD precautions must be observed when removing the video panels from their flight case (ESD gloves, protective clothing, wrist straps, etc.).
-
Page 16: Installation
I N S TA L L AT I O N DO NOT INSTALL THE PANEL IF YOU ARE NOT QUALIFIED TO DO SO! INSTALLATION BY QUALIFIED TECHNICIANS ONLY! INSTALLATIONS SHOULD BE CHECKED BY A QUALIFIED PERSON AT LEAST ONCE A YEAR! FLAMMABLE MATERIAL WARNING Keep panel(s) a minimum of 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. -
Page 17: Horizontal Panel Assembly
H O R I Z O N TA L PA N E L A S S E M B LY 1. The horizontal tab-keyed connector is 2. Press the horizontal tab-keyed connec- spring loaded. tor until the tab-key passes through the tab-keyed socket. -
Page 18: Vertical Panel Assembly
V E R T I C A L PA N E L A S S E M B LY The maximum number of panels that can be hung/stacked vertically is 15 panels (20 when supported by VS1RSB Rear Support Brackets). 1. -
Page 19: Rigging Bar
R I G G I N G B A R The video panel is compatible with ADJ’s VSRB1 Rigging Bar (sold separately), which easily and se- curely locks to the top of the first panel in a vertical column of up to 15 video panels (20 panels when supported by VS1RSB rear support brackes), allowing them hang from a truss, hoist, or lintel beam. - Page 20 R I G G I N G B A R Vertical “hang” and “stack” configurations are illustrated below with the rigging bar.
- Page 21 R I G G I N G B A R VERTICAL HANG CONFIGURATION - The maximum number of panels that can be hung verti- cally is 15 panels (20 when supported by VS1RSB Rear Support Brackets). 1. Align the vertical positional posts with 2.
- Page 22 R I G G I N G B A R VERTICAL STACK CONFIGURATION - The maximum number of panels that can be stacked vertically is 15 panels (20 when supported by VS1RSB Rear Support Brackets). 1. Align the vertical positional posts with 2.
-
Page 23: Flat Panel Assembly
F L AT PA N E L A S S E M B LY Rear Support Bracket: Use an VS1RSB Rear Support Bracket (sold separately) when connecting multiple panels for a larger display design, in order to strengthen the structural integrity of the screen, improve consistent flatness, and improve overall screen continuity. -
Page 24: Horizontal Truss Mount
H O R I Z O N TA L T R U S S M O U N T The optional VSR210 Horizontal Truss Mounting Bracket (sold separately) allows for the horizontal (ceiling) installation of the VS LED Video Panels. -
Page 25: Ground Stack
G R O U N D S TA C K The optional VSSCSB single panel rigging / ground stack bar is a free-standing stack mounting op- tions for the video panels. Use (2x) vertical connectors to secure video panel to VSSCSB single column support base Vertical Connectors... -
Page 26: Technical Specifications
Front and rear serviceable: 4 easy to replace video Video Panels vertically modules on each panel • VSRQR (VSM210): Quick Rig - Attaches and locks on to the rear of EVS3 so it can be fastened to a 2” pipe or MECHANICAL RATINGS: truss • Surface Flatness: Gaps<0.5mm •... -
Page 27: Optional Components And Accessories
O P T I O N A L C O M P O N E N T S A N D A C C E S S O R I E S SKU (US) SKU (EU) DESCRIPTION VS8100 1226300154 VSFC8 Flight Case VS1100 1226300153 VSRB1 Single Panel Rigging/Stack Bar... - Page 28 O P T I O N A L C O M P O N E N T S A N D A C C E S S O R I E S CAT6PRO5 Main Data Cable - Bare RJ45 to Locking RJ45 Ethernet Connection In/Out, 5 ft CAT6PRO10 Main Data Cable - Bare RJ45 to Locking RJ45 Ethernet Connection In/Out, 10 ft CAT6PRO15...
- Page 29 This page intentionally left blank.
