iC5000 Base Unit
Ordering code

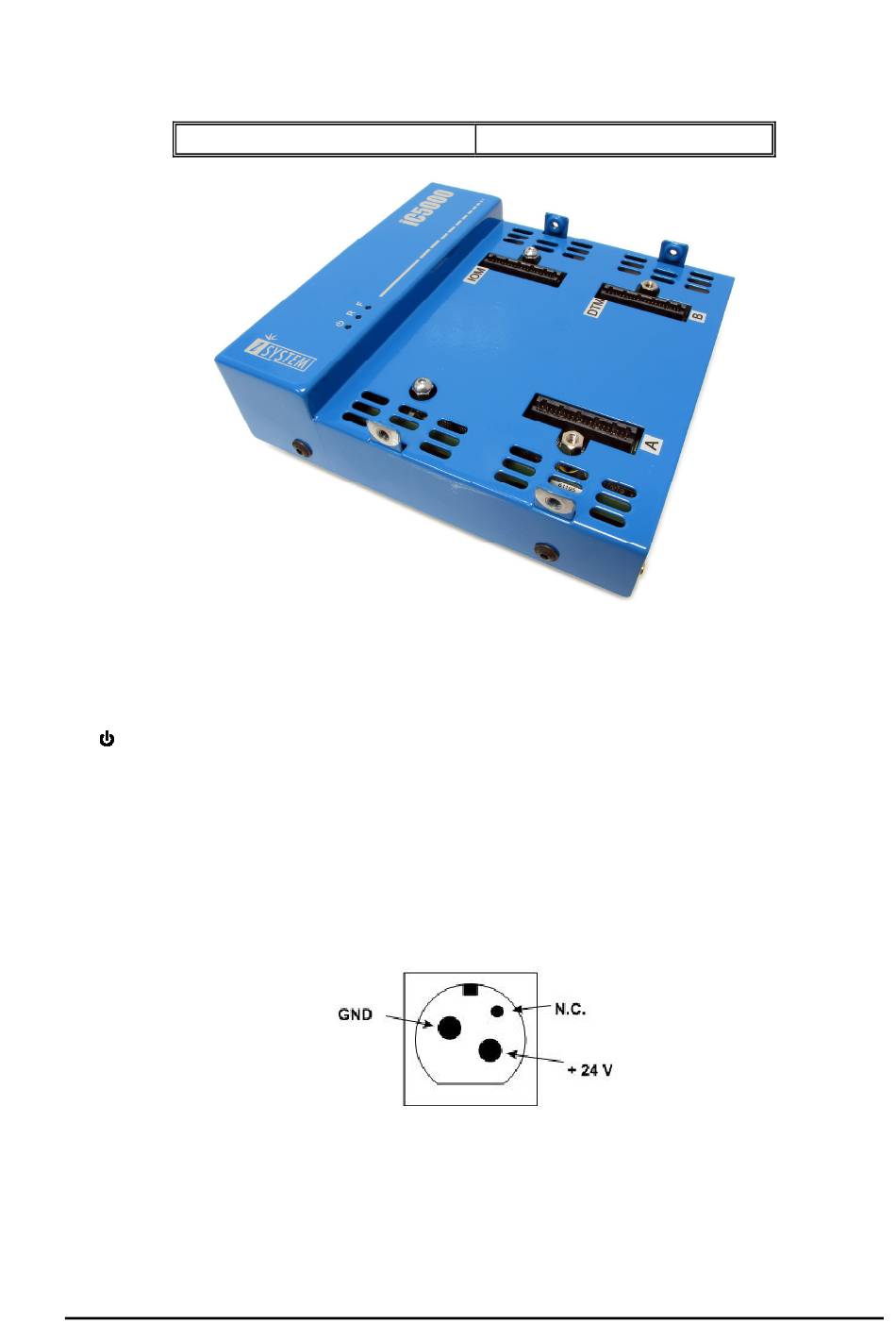

The iC5000 base unit is the heart of the iC5000 on-chip emulation system.
There are three status LEDs on the iC5000 Base Unit. The status LEDs inform the user of the current status of
the emulation system. Their meaning is:
– When lit, the unit is turned on
R – When lit, the target application being controlled is running
F – When lit, the unit is free for communication, i.e. winIDEA can connect to it.
Powering the emulator
A round 3-pin power connector is located on the rear of the iC5000 base unit.
The iC5000 unit accepts a wide input voltage range from 12V to 24V DC, thus enabling the Emulator to work
also with a 12V or 24V car battery. The necessary power supply is delivered beside the iC5000 unit.
Note: Use only original iSYSTEM accessories for powering the iC5000. If you wish to use a power supply
different from the delivered one, please consult with iSYSTEM first.
© iSYSTEM, January 2012
Power connector pinout, view from the rear of the Emulator
IC50000 or IC50000-1
2/41
