Second step: Configuring

There are two ways of configuring TCP/IP in winIDEA: manually or by automatic discovery.

• Manual Configuration

Select the Hardware/Communication tab.

If the "Use this communication settings" button was used when configuring the Emulator, these settings should

already be set as required. If this option was not used, select the TCP/IP button and enter the IP Address and the

TCP Port, as entered above into the Emulator. Connect the Emulator to the Ethernet, if not already connected,

and click on the 'Test' button. The communication should be up and running.

• Configuration with Automatic Discovery

Select the Hardware/Communication tab.

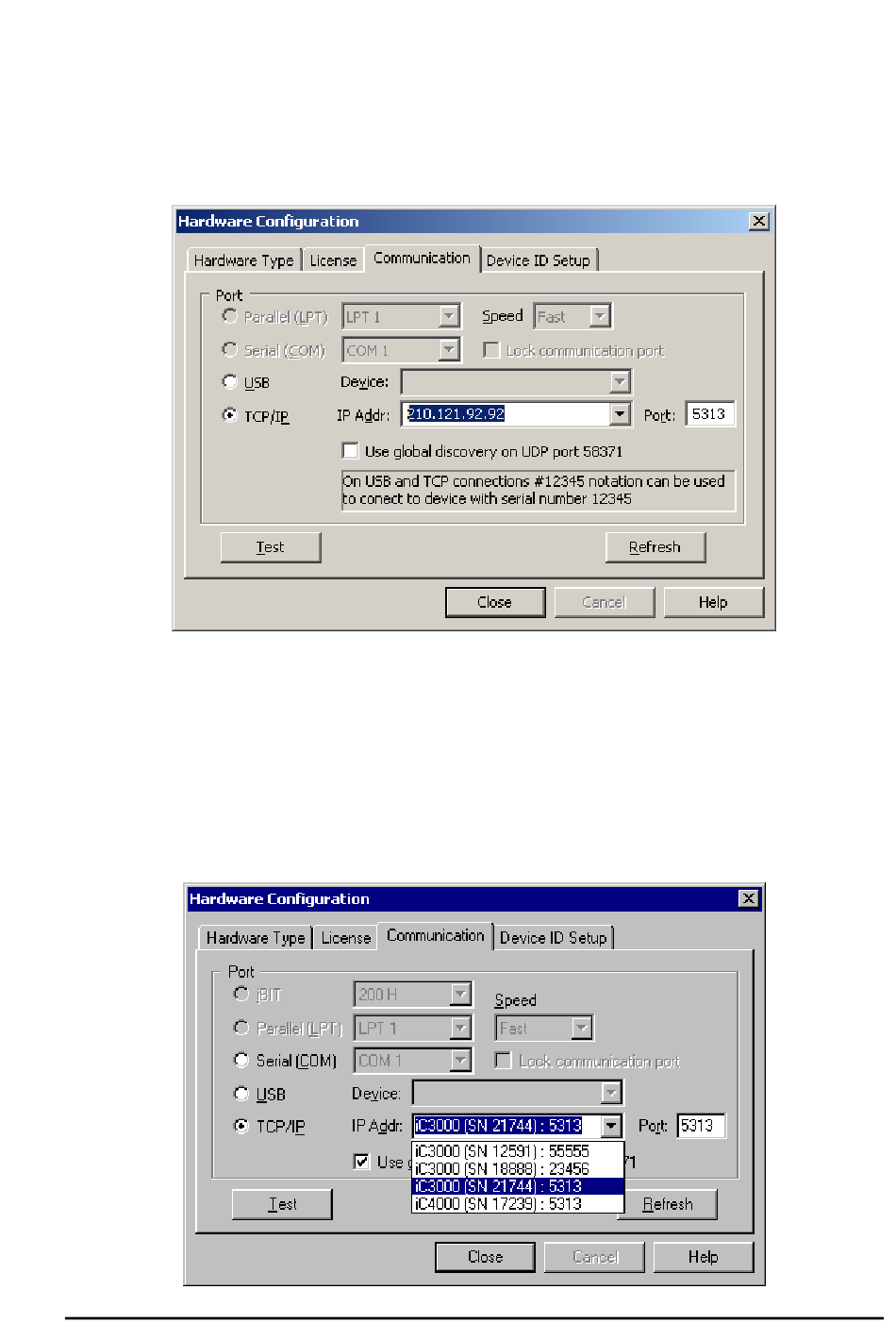

Hardware/Communication tab

10/41
