ECP200 EXPERT 2EV

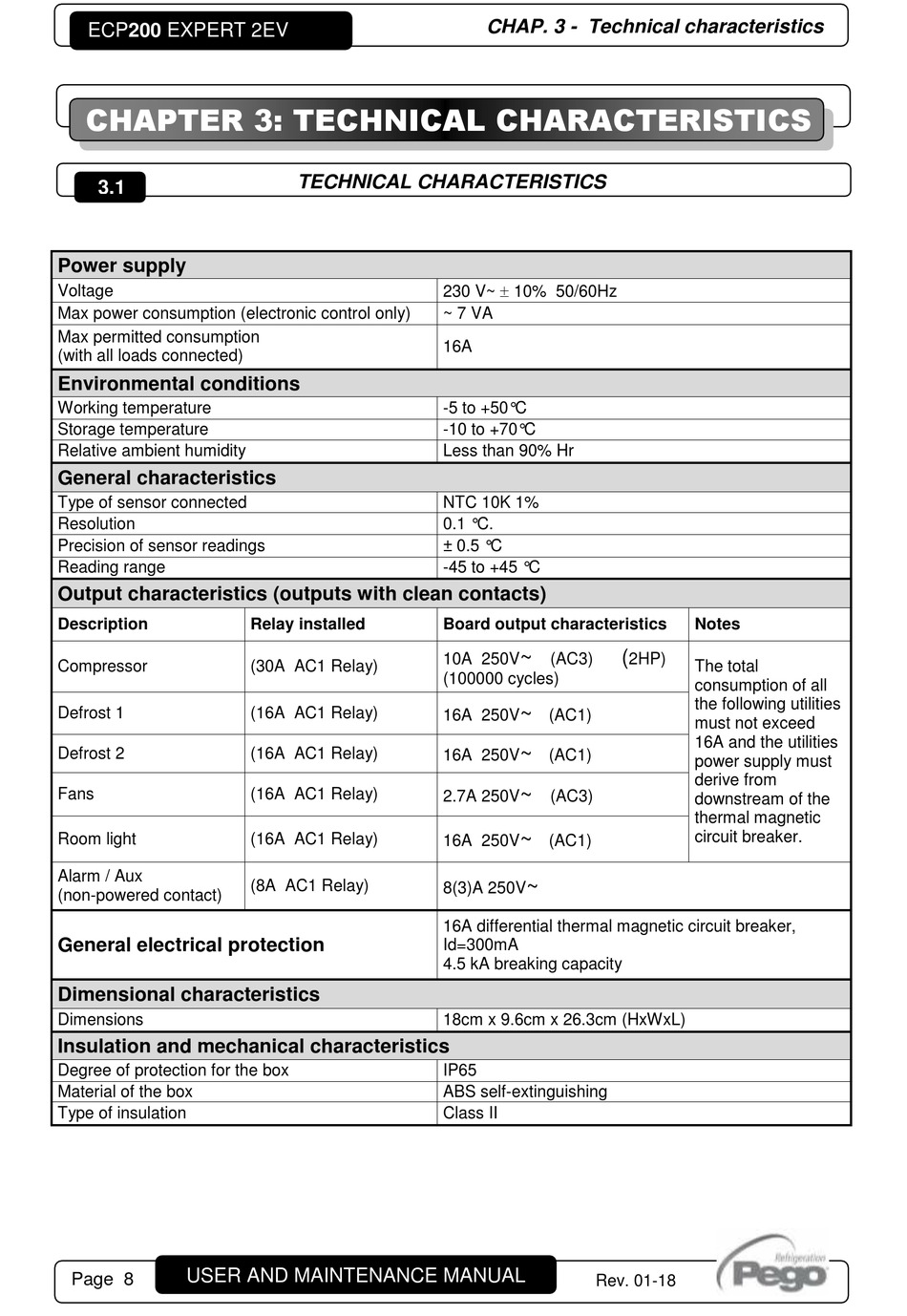

CHAPTER 3: TECHNICAL CHARACTERISTICS
3.1
Power supply
Voltage
Max power consumption (electronic control only)
Max permitted consumption
(with all loads connected)
Environmental conditions
Working temperature
Storage temperature
Relative ambient humidity
General characteristics
Type of sensor connected
Resolution
Precision of sensor readings
Reading range
Output characteristics (outputs with clean contacts)
Description
Compressor
Defrost 1
Defrost 2
Fans
Room light
Alarm / Aux
(non-powered contact)
General electrical protection
Dimensional characteristics
Dimensions
Insulation and mechanical characteristics
Degree of protection for the box
Material of the box
Type of insulation
USER AND MAINTENANCE MANUAL
Page 8

TECHNICAL CHARACTERISTICS

Relay installed
(30A AC1 Relay)
(16A AC1 Relay)
(16A AC1 Relay)
(16A AC1 Relay)
(16A AC1 Relay)
(8A AC1 Relay)
CHAP. 3 - Technical characteristics
230 V~  10% 50/60Hz
~ 7 VA
16A
-5 to +50°C
-10 to +70°C
Less than 90% Hr
NTC 10K 1%
0.1 °C.
± 0.5 °C
-45 to +45 °C
Board output characteristics
~
10A 250V (AC3)
(100000 cycles)
~
16A 250V (AC1)
~
16A 250V (AC1)
~
2.7A 250V (AC3)
~
16A 250V (AC1)
~
8(3)A 250V
16A differential thermal magnetic circuit breaker,
Id=300mA
4.5 kA breaking capacity
18cm x 9.6cm x 26.3cm (HxWxL)
IP65
ABS self-extinguishing
Class II
Rev. 01-18
Notes
(
2HP)
The total
consumption of all
the following utilities
must not exceed
16A and the utilities
power supply must
derive from
downstream of the
thermal magnetic
circuit breaker.
