Pego ECP200 EXPERT 2EV User And Maintenance Manual
Hide thumbs
Also See for ECP200 EXPERT 2EV:
- Use and maintenance manual (32 pages) ,
- Use manual (17 pages) ,
- Quick manual (16 pages)
Related Manuals for Pego ECP200 EXPERT 2EV
Summary of Contents for Pego ECP200 EXPERT 2EV
- Page 1 ECP200 EXPERT 2EV User and maintenance manual READ AND KEEP REL. 01-18 ELECTRICAL BOARDS FOR REFRIGERATING INSTALLATIONS...
-
Page 2: Table Of Contents
Page 15 5.10 List of level two variables Page 18 5.11 HACCP alarm management Page 19 5.12 Starting up the ECP200 EXPERT 2EV electronic controller Page 19 5.13 Configurations Page 19 5.14 Conditions for enabling / disabling the compressor Page 19 5.15... -
Page 3: General

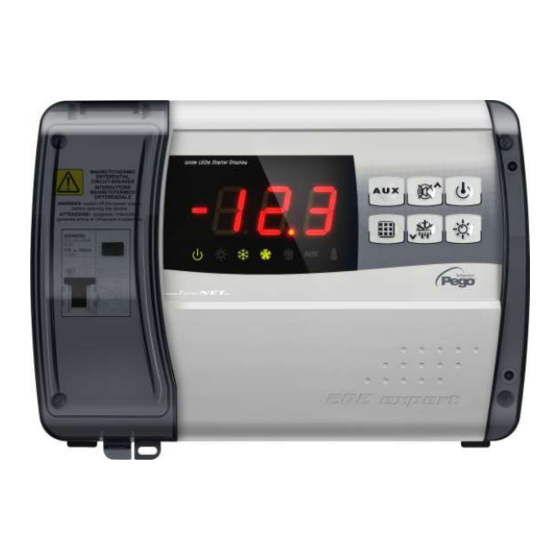

GENERAL DESCRIPTION: The ECP200 EXPERT 2EV is the new electrical board for cold rooms with single-phase compressor up to 2HP and up to 2 evaporating units. It allows complete control of all the components on a refrigeration system such as the compressor, the evaporator fans, defrosting element 1, defrosting element 2, room light and configurable auxiliary relay. -
Page 4: Page
CHAP. 1 - Introduction ECP200 EXPERT 2EV PRODUCT IDENTIFICATION CODES 200200EXP2EV ECP200 EXPERT 2EV Compressor control management, evaporator 1 defrost, evaporator 2 defrost, evaporator fans and room light. Alarm/aux relay. Real time clock. 16A differential thermal magnetic circuit breaker Id=300mA... -
Page 5: Standard Equipment For Mounting And Use
STANDARD EQUIPMENT FOR MOUNTING AND USE The ECP200 EXPERT 2EV electronic controller is provided with the following for mounting and use: • 3 ring seals to be placed between the screw and the surface of the box;... -
Page 6: Page
CHAP. 2 - Installation ECP200 EXPERT 2EV INSTALLATION OF THE BOARD Fig. 1: Lift the transparent protective cover on the differential thermal magnetic circuit breaker and remove the cover on the screws on the right-hand side. Fig. 2: Undo the 4 screw fasteners on the front of the box. - Page 7 CHAP. 2 - Installation ECP200 EXPERT 2EV Fig. 6: Attach the box to the wall at the point of the three holes, using screws the length of which is suited to the thickness of the wall behind. Insert a rubber washer (provided) between each screw and the back of the box.
-
Page 8: Technical Characteristics
CHAP. 3 - Technical characteristics ECP200 EXPERT 2EV CHAPTER 3: TECHNICAL CHARACTERISTICS TECHNICAL CHARACTERISTICS Power supply 230 V~ 10% 50/60Hz Voltage Max power consumption (electronic control only) ~ 7 VA Max permitted consumption (with all loads connected) Environmental conditions Working temperature -5 to +50°C... -
Page 9: Terms Of The Warranty
The intervention service in warranty can be refused when the equipment is modified or transformed. Under no circumstances Pego S.r.l. will be liable for any loss of data and information, costs of goods or substitute services, damage to property, people or animals, loss of sales... -
Page 10: The Control Panel
CHAP. 5 - Data programming ECP200 EXPERT 2EV CHAPTER 5: DATA PROGRAMMING THE CONTROL PANEL THE FRONT KEYPAD AUXILIARY RELAY CONTROL The version with alarm relay allows you to control the relay manually if AU=1;... -
Page 11: Led Display
CHAP. 5 - Data programming ECP200 EXPERT 2EV DOWN / MANUAL DEFROST (press for 2.5 seconds to Start – Stop MANUAL DEFROST) ROOM LIGHT LED DISPLAY AMBIENT TEMPERATURE VALUE / SETTINGS STANDBY ICON Led OFF = Board OFF... -
Page 12: General
ECP200 EXPERT 2EV GENERAL In the interest of safety and practicality, the ECP200 EXPERT 2EV system features two programming levels; the first is simply for configuring the SETPOINT parameters that are modified frequently, while the second is for programming and configuring the main parameters associated with the board’s various work modes. -
Page 13: Level One Programming
CHAP. 5 - Data programming ECP200 EXPERT 2EV LEVEL ONE PROGRAMMING (User level) To access the level one configuration menu: 1. Press and hold both the () and () buttons for a few seconds until the first programming variable appears on the display. - Page 14 CHAP. 5 - Data programming ECP200 EXPERT 2EV Minimum temperature alarm Absolute temperature for the ambient sensor below which, after the Ald delay time, the EL low temperature alarm is activated and a record is made of this in the HACCP menu.
-
Page 15: Level Two Programming
CHAP. 5 - Data programming ECP200 EXPERT 2EV LEVEL TWO PROGRAMMING (Installer level) To access level two configuration, press and hold the UP (), DOWN () and LIGHT buttons for a few seconds. The system automatically goes into standby when the first programming variable appears. - Page 16 CHAP. 5 - Data programming ECP200 EXPERT 2EV Minimum time between the shutdown and next 0…15 min 0 min start-up of the compressor Compressor run time in event of broken ambient sensor (emergency operation) 0…240 min With CE1=0, emergency operation in the event...
- Page 17 CHAP. 5 - Data programming ECP200 EXPERT 2EV Password 0...999 (see P1 for type of protection) 0 = function disabled Year configuration 0...99 Month configuration 1...12 Day configuration 1...31 Hour configuration 0...23 Minute configuration 0...59 Software release indicates t he software version...
-
Page 18: Haccp Alarm Management
CHAP. 5 - Data programming ECP200 EXPERT 2EV HACCP ALARM MANAGEMENT 5.11 The EL low temperature alarm is activated at the end of the Ald time when the ambient sensor temperature is ≤ A1. The EH high temperature alarm is activated at the end of the Ald time when the ambient sensor temperature is ≥... -
Page 19: Starting Up The Ecp200 Expert 2Ev Electronic Controller
CONDITIONS FOR ENABLING / DISABLING THE COMPRESSOR 5.14 The ECP200 EXPERT 2EV controller activates the compressor command when the ambient temperature exceeds the sum of the configured set point and the differential (r0); and deactivates the compressor when the ambient temperature is less than the configured set point. -
Page 20: Stopping The Defrosting Process Manually
ECP200 EXPERT 2EV time (d31 or d32) elapses. The delay between the processes (variable dd2) is also factored in. A defrosting output is not activated when the temperature of the respective defrost end variable (d21 or d22) is found to be less than the temperature detected by the sensor of the evaporator concerned. -
Page 21: The Password Function
CHAP. 5 - Data programming ECP200 EXPERT 2EV THE PASSWORD FUNCTION 5.19 The password function is activated by setting the PA parameter at a value other than 0. Refer to parameter P1 for the different levels of protection. Protection is enabled automatically if the keypad is not used for about 2 minutes. -
Page 22: Telenet Supervision / Monitoring System
ECP200 EXPERT 2EV CHAPTER 6: OPTIONS TELENET MONITORING/SUPERVISION SYSTEM Connect the ECP200 EXPERT 2EV to the TeleNET monitoring and supervision system as follows: 1. Assign a single network address with the 2nd level Ad. variable. 2. The TeleNET connectors on the board are 10=RS-485(A) and 11=RS-485(B);... - Page 23 CHAP. 7 - Diagnostics ECP200 EXPERT 2EV CHAPTER 7: DIAGNOSTICS DIAGNOSTICS ECP200 EXPERT 2EV controller warns the operator of any errors by displaying alarms codes and sounding the internal buzzer. In the event of an alarm, the icon appears on the display, the alarm relay is activated (if configured with AU=0), the internal buzzer is activated and one of the following alarm codes appears.
-
Page 24: Eu Declaration Of Conformity
DEL FABBRICANTE: THIS DECLARATION OF CONFORMITY IS ISSUED UNDER THE EXCLUSIVE RESPONSIBILITY OF THE MANUFACTURER: PEGO S.r.l. Via Piacentina 6/b, 45030 Occhiobello (RO) – Italy – DENOMINAZIONE DEL PRODOTTO IN OGGETTO / DENOMINATION OF THE PRODUCT IN OBJECT ECP200 EXPERT 2EV MOD.:... -
Page 25: Ecp200 Expert 2Ev Connection Diagram
Annexes ECP200 EXPERT 2EV ECP200 EXPERT 2EV CONNECTION DIAGRAM USER AND MAINTENANCE MANUAL Page 25 Rev. 01-18... -
Page 26: Exploded Diagram
Annexes ECP200 EXPERT 2EV EXPLODED DIAGRAM LEGEND REF. DESCRIPTION BACK BOX IN ABS FRONT BOX IN ABS TRANSPARENT POLYCARBONATE COVER AT FRONT HINGES FOR OPENING THE FRONT BOX SCREWS FOR BOX SCREWS FOR CONNECTION TO THE BOARD DIFFERENTIAL THERMAL MAGNETIC PROTECTION / CIRCUIT BREAKER... - Page 27 ECP200 EXPERT 2EV USER AND MAINTENANCE MANUAL Page 27 Rev. 01-18...
- Page 28 Tel. +39 0425 762906 Fax +39 0425 762905 e.mail: info@pego.it – www.pego.it AFTER-SALES ASSISTANCE CENTRE Tel. +39 0425 762906 e.mail: tecnico@pego.it Distributor: USER AND MAINTENANCE MANUAL PEGO s.r.l. reserves the right to make amendments to this user manual at any moment. Page 28 Rev. 01-18...
Need help?
Do you have a question about the ECP200 EXPERT 2EV and is the answer not in the manual?
Questions and answers

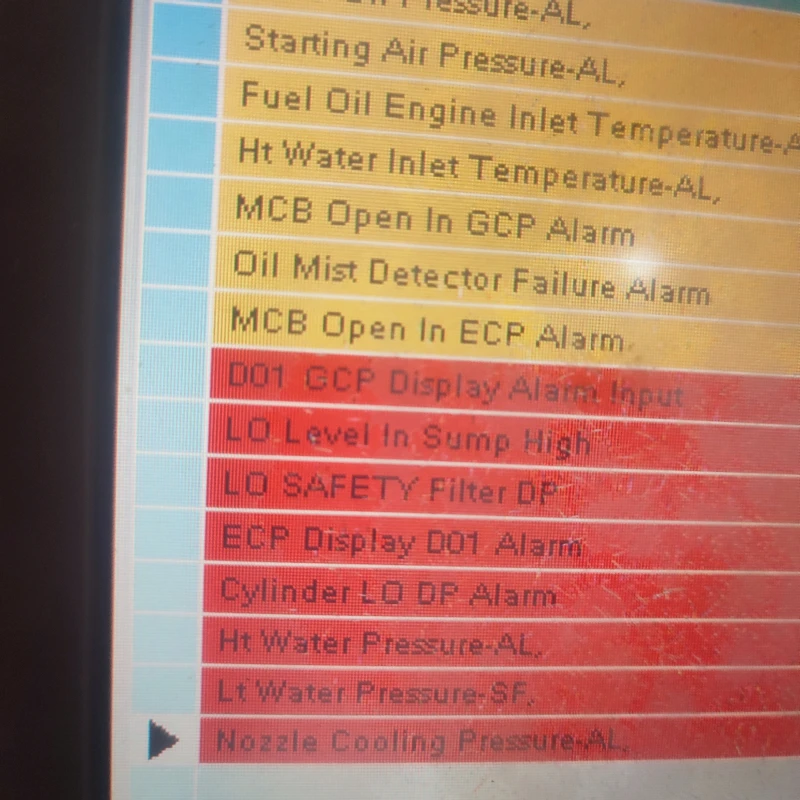

What's mean ECP Display alarm D01 ?
