PROGRAMMING

The dip switches can only be programmed by authorised personnel; program-
ming is only possible when the receiving unit is not powered and the battery has
been removed from the transmitting unit.
The incorrect closure of the transmitting and the receiving unit can compromise
the seal between the casings and thereby the protection degree from dust and
water.
8.1

Programming the transmitting module

To change the programming set in the radio module, it is necessary to open the transmitting
unit.

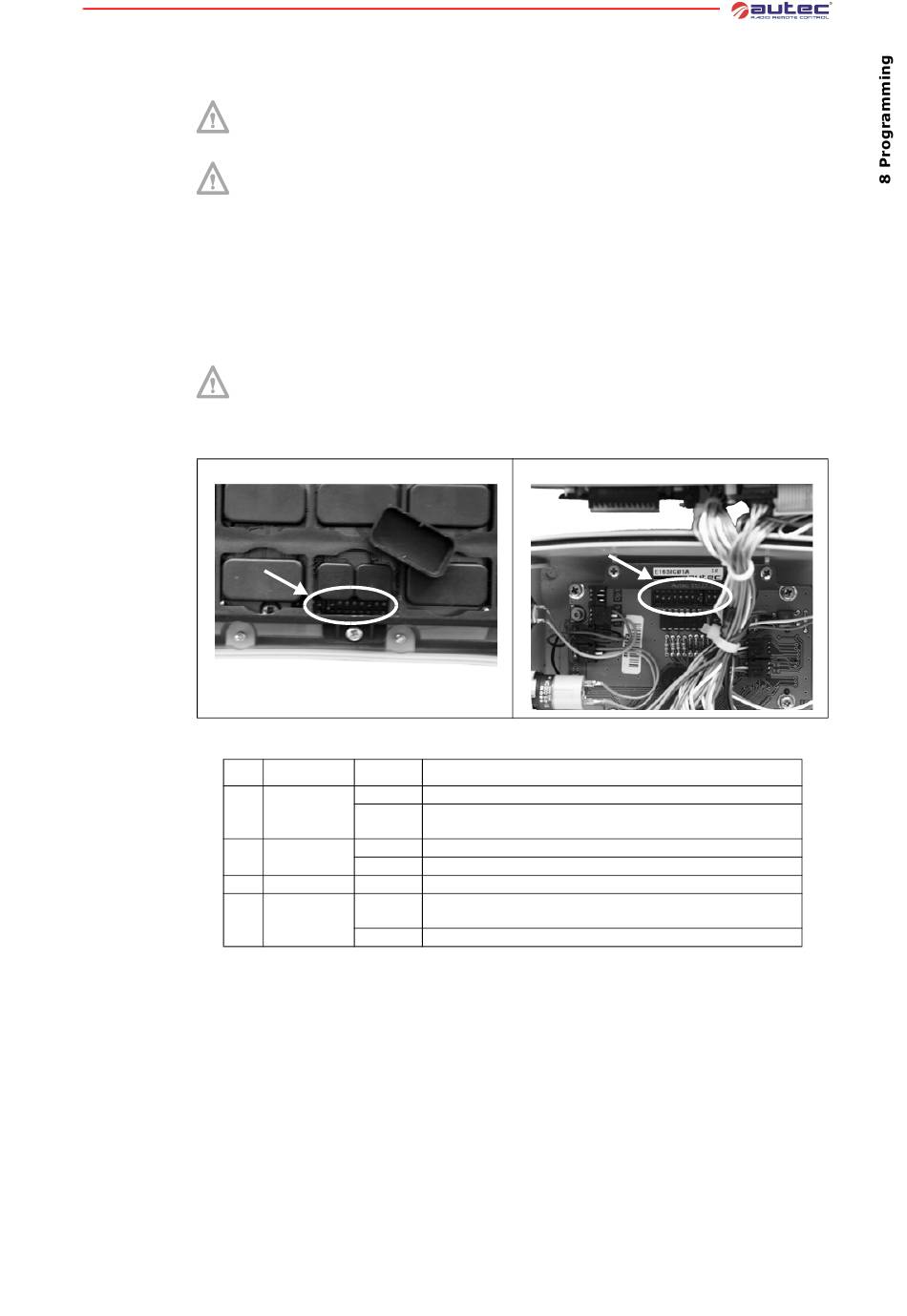

The group of eight dip switches located on the radio modules is used to program some functions
and set the working frequency. The programming set in the other group of four dip switches
must never be modified.
For the correct functioning (see paragraph 1.7), the group of 8 dip switches (ex-
cluding DIP 1) for the radio modules E16STXEU_ and E16SRXEU_ must be set in
the same way.
Set the group of 8 dip switches as described below:
Group of
8 dip switches
DIP MODULE
1
a
2
3-7
8
a. With MK12 transmitting units this dip switch must be at ON.
Pay particular attention when closing the unit at the end of the operation.
LIMM&SA0-00.fm
MK transmitting unit
STATE
ON The transmitting unit never switches off automatically
E16STXEU_
If the transmitting unit stays switched on without any movement
OFF
commands activated, it switches off after approx. 3.5 minutes.
ON Deactivation of low battery warning from horn on machine
E16STXEU_
OFF Activation of low battery warning from horn on machine
E16STXEU_ ON/OFF See paragraph 1.7 and paragraph 8.5
Manual selection mode of the frequencies using DIP 3 - DIP 7
ON
(see paragraph 8.5)
E16STXEU_
DO NOT USE
OFF
MJ transmitting unit
FUNCTION
