Information provided in this manual is used for the installation of the radio remote con-
trol on the machine and for its maintenance.
Information provided in this manual allows to disable, enable and set some radio remote
control's functions that may have impacts on the risk assessment related to the radio
remote control.
Information provided in this manual cannot be used and performed by people who are
not competent and responsible for this matter.
Those who use this information must have been trained about the radio remote control
and its risks by Autec's personnell or by people authorized by Autec.
Autec srl cannot be held liable for responsibilities resulting from the modification of
these functionalities.

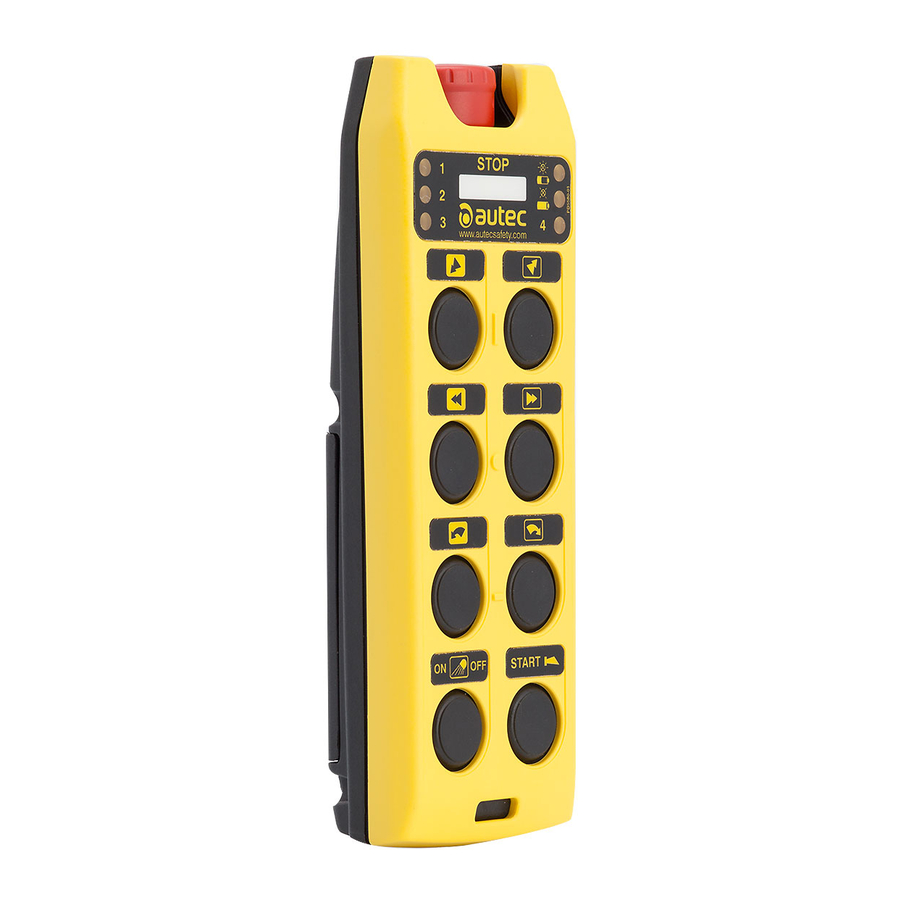

AIR SERIES
BACK-UP UNIT
IMPORTANT INFORMATION
(with PAIR 2.0)
STOP
1
R
2
G
3
4
S1
S2
S3
FUNCT.
START
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AUTEC AIR Series
Summary of Contents for AUTEC AIR Series
- Page 1 Those who use this information must have been trained about the radio remote control and its risks by Autec's personnell or by people authorized by Autec. Autec srl cannot be held liable for responsibilities resulting from the modification of these functionalities.
-
Page 3: General Section
Contact Autec if any of the instructions and/or warnings provided in this manual are not clear. No part of this manual may be reproduced, in any form or by any means, without written permission of Autec (including re- cording and photocopying). -
Page 4: Back-Up Unit
- PAIR 2.0 DIP: procedure that requires the opening of the receiving unit - PAIR 2.0 SERIAL: procedure that implies entering the “SERIAL N.” and does not require the opening of the receiving unit. AUTEC - Air Series LIIBKU00E1-02.fm A8 - Configuration Menu... - Page 5 “SERIAL N.” as the paired receiving unit. Autec cannot be held liable if the battery cover, where the “SERIAL N.” is reported, is not moved to the back-up unit. If it were not possible to use the battery cover of the replaced transmitting unit or if the identification plate were damaged and/ or not readable, write the “SERIAL N.”...
- Page 6 6. Open the receiving unit and set DIP switch 2 on the mother board to OFF. 7. Close the receiving unit. 8. Make sure that the transmitting unit is paired with the desired receiving unit (see page9). AUTEC - Air Series LIIBKU00E1-02.fm A8 - Configuration Menu...
- Page 7 3. Make sure that the number is correct (see page 7). 4. Pair the transmitting unit with the desired receiving unit (see page 8). 5. Make sure that the transmitting unit is paired with the desired receiving unit (see page9). LIIBKU00E1-02.fm AUTEC - Air Series A8 - Configuration Menu...
- Page 8 6, 7 and 8; this is sig- 0; this is signalled by FUNCT. START FUNCT. START FUNCT. START corresponding LED. nalled by the corre- the corresponding sponding LED. LED. AUTEC - Air Series LIIBKU00E1-02.fm A8 - Configuration Menu...
- Page 9 Digit “8”: the green LED repeats 8 blinks and an off phase. Digit “9”: the green LED repeats 9 blinks and an off phase. Digit “0”: the green LED repeats 10 blinks and an off phase. LIIBKU00E1-02.fm AUTEC - Air Series A8 - Configuration Menu...
- Page 10 “SERIAL N.”. AUTEC - Air Series LIIBKU00E1-02.fm A8 - Configuration Menu...
- Page 11 PAIR procedure with the transmitting unit that was originally paired with this receiving unit; 2 finally perform the UNPAIR procedure and repeat the PAIR 2.0 procedure with the desired transmitting unit. LIIBKU00E1-02.fm AUTEC - Air Series A8 - Configuration Menu...
- Page 12 AUTEC SRL - via pomaroli, 65 - 36030 Caldogno - Italy - phone +39.0444.901000 - fax +39.0444.901011 - info@autecsafety.com - www.autecsafety.com...
