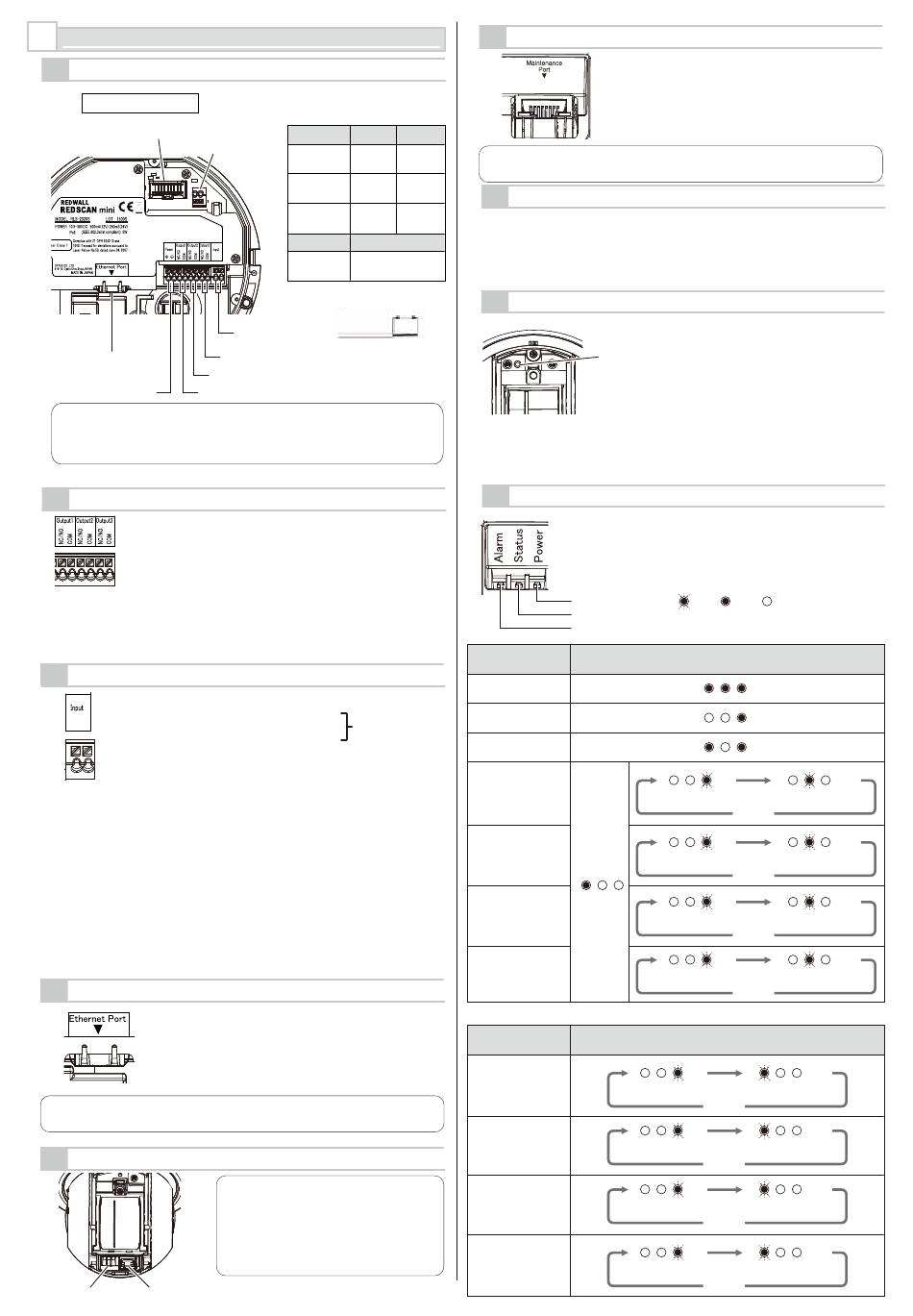

PARTS LAYOUT INSIDE AND THEIR FUNCTIONS

5-1

WIRING

Inside the base
Relay connector
Wall tamper input

Ethernet port (PoE)

Power supply input Signal output 1
Note >>
Some PoE netwok switches have a limit for wattage. Connect the detectors
to PoE network switches without exceeding the limit referring to their
instructions.
* As for wiring for UL application, refer to UL statement on the end of page 11.
5-2

PROGRAMMABLE SIGNAL OUTPUT

The three output terminals can be configured as NO/NC. They
are however fixed as open when the unit is not energized.
The outputs are programmable from options below.
Alarms
• Master alarm (MO)
• Zone alarm
(A1, A2, B1, B2)
5-3

PROGRAMMABLE SIGNAL INPUT (RLS-2020S only)

Programmable input can be used for the following functions.
・Signal Output 1 for confirmation of the function
・Signal Output 2 for confirmation of the function
・Signal Output 3 for confirmation of the function
When the signal input is closed, the signal output (1 to 3)
responds as change the status of output. It can be used for
confirmation that the detector is operated properly.
・ Switching to Next Masking / Allocating file
When the signal input is closed, the unit changes Masking/Area
Allocation pattern files. e.g. File 1 to File 2, File 2 to File 3, File 3
to File 4 and File 4 to File 1... It can be used for switching
Masking/Allocation pattern remotely without REDSCAN Manager.
・Area Set
When the signal input is closed, Area set is started.
It can be used for re-creating the detection area without
REDSCAN Manager.
For settings this function, the dedicated software, REDSCAN Manager is required.
If signal input is closed shorter time than the judgement time (Default 1 sec.,
adjustable range 1 to 10 sec), it will be ignored.
5-4 ETHERNET PORT (PoE)
The Ethernet port inside the base is for constant
connection. PoE is supported.
Default
IP address
Subnet mask
Default gateway : 192.168.0.1
Note >>
Do not use the same subnet for the main Ethernet port and the Maintenance port.
5-5

MAINTENANCE SECTION

LED indicator

Maintenance port

The length of the power wire
must be less than the figures
listed below.
Wire size 12VDC
AWG20
30
(0.52 mm ) (100)
2
AWG18 50
(0.83 mm ) (160)
2
AWG16 80
(1.31 mm ) (260)
2
Cable PoE (IEEE802.3 standard)
100
Cat5e or
above (320)
Signal input
(RLS-2020S only)
Stripping length
Signal output 3
Strip the cover of the
wiring about 9 mm.
Signal output 2
Troubles
• Anti-masking (AM)
• Anti-rotation (AR)
• Soiling (SO)
• Environmental disqualification
(DQ)
• Device trouble (TR)
• Tamper output (TA)
*Refer to UL statement
on the end of page11
: 192.168.0.126
: 255.255.255.0
Note >>
At a maintenance port, Use a light LAN
cable for indoor use. (Do not use the
heavy LAN cable for exterior use.)
This port is for maintenance purpose.
After maintenance, re-assemble the front
cover.
5-6 MAINTENANCE PORT
24VDC
790
Note >>
(2590)
Do not use the same subnet for the main Ethernet port and the Maintenance port.
1260
5-7

POWERING ON

(4130)
2000
Enter the DC power to the power supply input terminal.
(6560)
Or, connect PoE power supply equipment to the ethernet port (PoE)
After power on, all the indicators are turned on for approx. 60 seconds and then
the status and alarm indicators are turned off.
During this period, REDSCAN mini itself performs initial settings.
m (ft)
5-8

INITIALIZATION TO FACTORY DEFAULT

9 mm
5-9 LED INDICATOR
Detector condition
Warm-up
(apprpx. 60 s)
Stand-by
Alarm
Anti-masking
Anti-rotation
Soiling
Environmental
disqualification
(DQ)
* According to alarm status.
Trouble condition
Motor error
Hardware error
Over heat
Others
(not fixed the laser
window properly, etc.)
EN-8
The Ethernet port on the maintenance section is
connected only for initial set-up. Do not use it for
constant connection.
Default
IP address : 192.168.1.126
Subnet mask : 255.255.255.0
1. Turn Off the power supply. Remove
the front cover and laser window.
(refer to 3-1,3-3)
Reset button
2. Power On while pressing the reset button.
3. All LEDs turn On. Red LED turns Off
after 50 sec, and green LED turns Off
after 2 sec. And then, release the reset
button. Yellow LED turns off after 3 sec.
4. Turn Off the power supply.
Attach the laser window and the front
cover. Then, Power On.
Green
Yellow
Blink Light
Red
LED
Green blinks once.
REPEAT
Green blinks once.
REPEAT
*
Green blinks once.
REPEAT
Green blinks once.
REPEAT
LED
Green blinks once. Red blinks once.
REPEAT
Green blinks once. Red blinks twice.
REPEAT
Green blinks once. Red blinks 3 times.
REPEAT
Green blinks once. Red blinks 4 times.
REPEAT
.
OFF
Yellow blinks once.
x 2
Yellow blinks twice.
x 3
Yellow blinks 3 times.
x 4
Yellow blinks 4 times.
x 2
x 3
x 4
