Cleaning the Product
Clean the laser window using a damp cloth.
A smeared laser window can limit the detection area due to
the reduced laser sensitivity. In addition, heavy soiling of the
window can induce detection errors.
On Safety of Laser
This product is categorized as a Class 1 product in terms of the Safety
Standard.
Average Power : Max. 0.021 mW (AEL)
Wavelength : 905 nm
Pulse Width : 4 ns
Emission period : 35 μs
Standard : IEC 60825-1
Class 1 of the Laser Safety Standard means that the safety of laser products
belonging to this class is warranted under normal operating conditions
(reasonably predictable operating conditions). The product is marked to indicate
that it is laser equipment. No additional safety measures are necessary.
Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to
Laser Notice No.50, dated June 24, 2007.
Class 1 laser product
Do not expose your eyes directly to the laser beam
CE Statement
Warning: This is a class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures. (EN 55032)
1-3

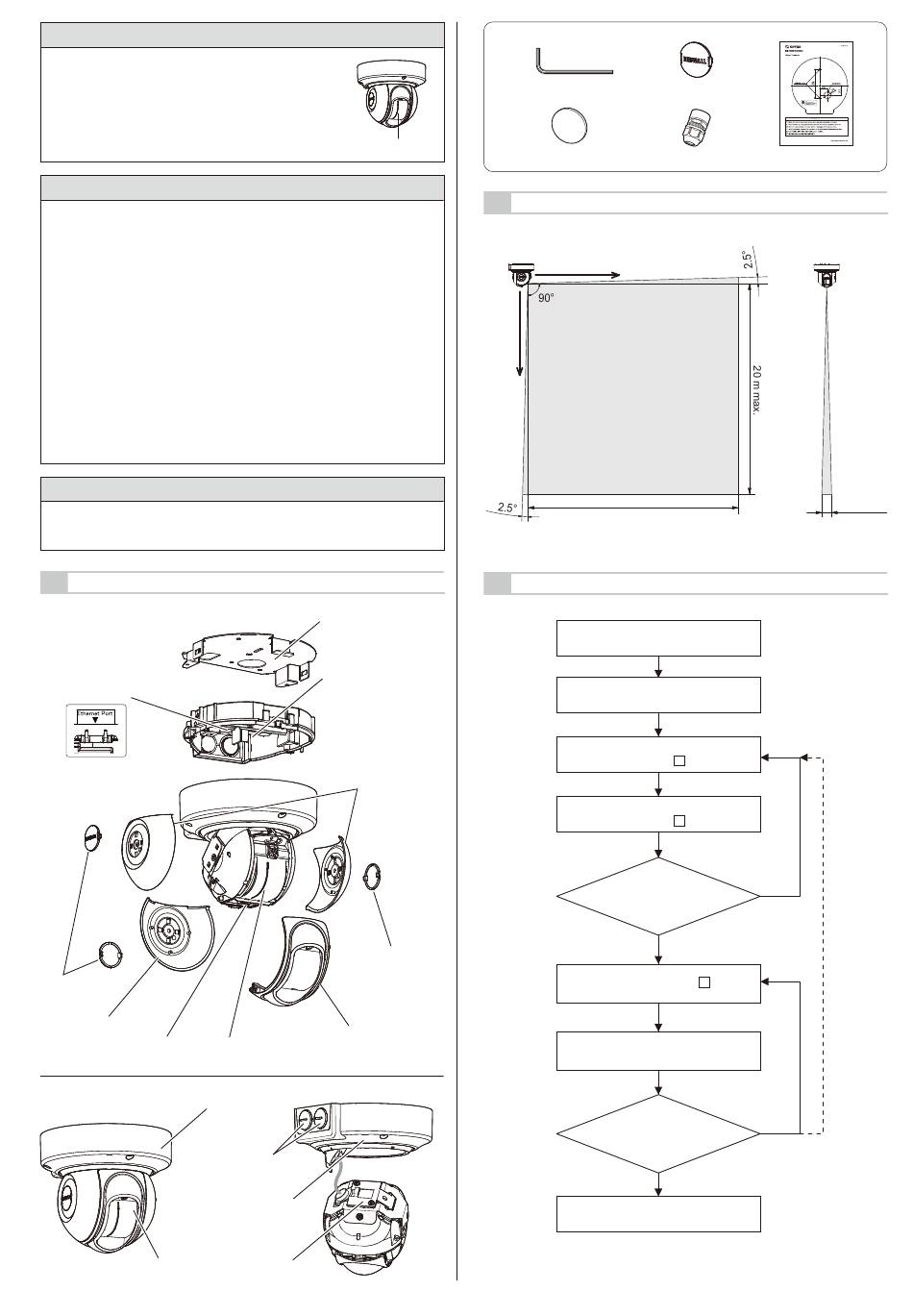

PARTS IDENTIFICATION

Ethernet port
Side
cover cap
(Accessories)
Side cover L
Maintenance port
Base unit
Main unit
Laser window
Mounting bracket
Base
Side cover S
Side
cover cap
(Accessories)
Front cover
Laser window
Blanking cap
Base cover
Wiring cover
Accessories >>
Allen key: x1
Wall packing: x1
1-4

DETECTION AREA

Side view
X
Y
20 m max.
1-5

INSTALLATION WORK FLOWCHART

Choose the detection area mode and
installation location. (Refer to 2-1)
Change the assembly option according
to the mounting type. (Refer to 2-2, 2-3)
Mounting and angle adjustment.
Wiring and Power On
Laser area confirmation
Area setting (Refer to 6 )
Walk-test and confirm
the detection area.
EN-2
Side cover cap: x3
Cable gland: x1 Paper template: x1
(Refer to 4 )
(Refer to 5 )
NG
(Refer to 4-3)
OK
Configuration
NG
(Refer to 4-3)
OK
Completion
Front view
Approx.
400 mm
